ACRO PRO EQ258 MULTIPOWER

Part number 3114696

Weatherproof LED luminaire, comprising:
- Fibreglass reinforced polyester housing
- Diffuser in frosted polycarbonate, glow wire 850 °C (EN 60695-2-11)
- Anti-ageing custom moulded silicone sealing gasket(s)
- 4000K multi-chip LED board
- Fully integrated stainless steel safety spring clips
- Quick ceiling fixing bracket (stainless steel)
- Integral Dip-Switches to select one of four power levels, which can be field adjusted (MULTIPOWER models)
- Emergency - 1 hour
- EM/1P are maintained emergency versions (1h)
- Hyper-frequency (HF) sensor operating at 5.8 Ghz+/- 75 Mhz
- Dimmable DALI

Documentation

Documentation
Technical Datasheets
Instruction sheets
Tender Text

2D / 3D
Technical drawing .jpg

Photometric data
Photometric file .ldt

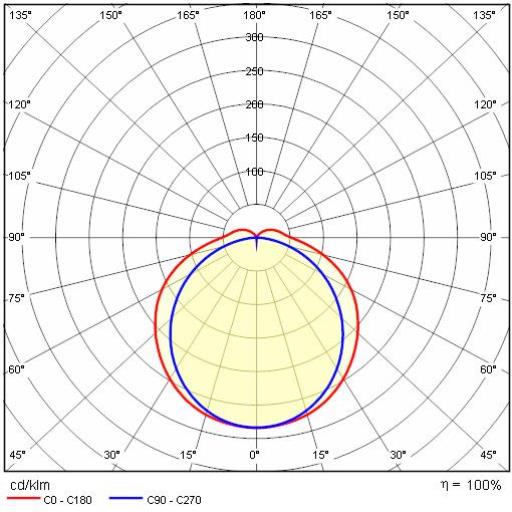

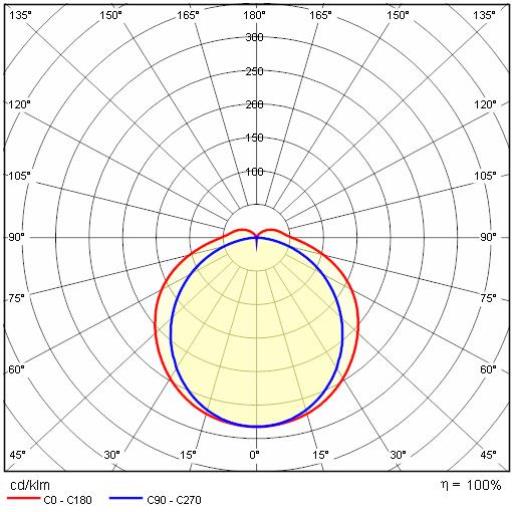

Polar Diagram .jpg
Photometric file .ies
DIALUX .uld
RELUX .rolf
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

4300/5300/6250/7100

Luminaire lumen output
[lm]:

3865/4758/5746/6588

Luminaire
wattage [W]:

24/29/36/42 W

Luminous efficacy [lm/W]:

164

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-RAL7035 / Grey RAL7035 / Matt

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK08 5J xx5

Protection class:

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

2.25

Overall length [mm]:

1454

Overall width [mm]:

102

Overall height [mm]:

Mechanical features

Shape:

Rectangular

Housing material:

Plastic

Diffuser material:

Plastic

Glow wire test [°C]:

850 Â°C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

0.98

Inrush current [A/μs]:

22 / 220

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Weatherproofs

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L70B10@101000h

Distribution of light emission:

Direct
