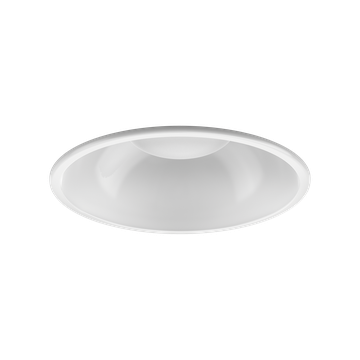

DL ROUND MIDI

Part number 3114240

Recessed, modular, round LED downlight for indoor, comprising:
- LED module, die-cast aluminium heat sink, reflector with integrated ceiling trim, diffuser and external supply unit
- All components can be tool-less replaced lately
- High-shine modular reflector with integrated ceiling trim made of metallised injection-moulded ABS with light-tight connection to LED module
- Integrated diffuser grants an optimised uniformity
- Die-cast aluminium heat sink with Fast™ (Flexible air stream technology) cooling system grants an excellent dissipation and thermal management
- Built-in driver
- DALI dimmable
- Suitable for ceiling tile thickness from 1-25 mm
- Quick and toolless installation
Options:
- Wieland connector GST18i3
- Emergency 1h
- Emergency 3h
- High-shine modular radial louvre reflector with integrated ceiling frame made of metallised injection-moulded ABS with light-tight connection to LED module
- Injection-moulded ABS reflector with integral ceiling trim with light-tight connection to LED module and matte plastic pane (IP54)
- Injection-moulded ABS reflector with integral ceiling trim with light-tight connection to LED module

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1400

Luminaire lumen output
[lm]:

1180

Luminaire
wattage [W]:

9 W

Luminous efficacy [lm/W]:

131

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

WH-87 / White / Textured

IP degree
of protection:

IP20

IP above/below ceiling:

IP20/IP44

Impact resistance / impact energy:

IK07 2J xx5

Protection class:

Optic:

C/EW - Circular Extra-Wide

Beam
angle:

2 x 41°

Net weight [kg]:

0.706

Overall diameter [mm]:

190

Overall height [mm]:

Cut-out diameter [mm]:

Ø 175

Minimum installation depth [mm]:

Mechanical features

Shape:

Round 150 ≤ x ≤ 300 mm

Housing material:

Aluminium

Diffuser material:

Opal plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

>0.9

Input voltage [V DC]:

176/280

Inrush current [A/μs]:

15 / 204

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Downlight and spotlight

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

UGR max.:

20.1

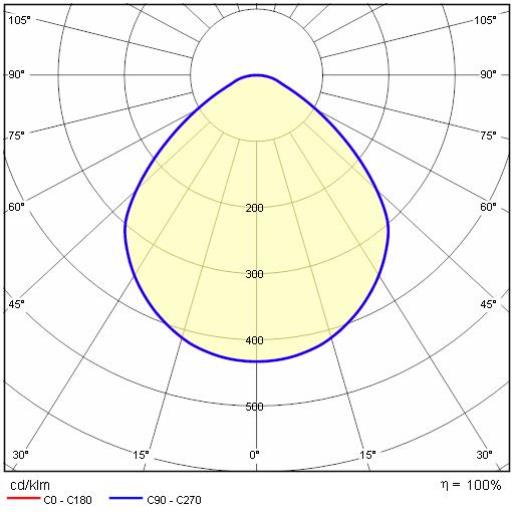

Photometric data

Technical drawings

Optional accessories

DL ROUND MIDI

	Part number	Colour / Finishing	Description	Downloads
	3109007		Black reflector DL ROUND MIDI	Add to technical datasheetRemove from technical datasheet
	3109009		Matte plastic panel (IP54) DL ROUND MIDI	Add to technical datasheetRemove from technical datasheet
