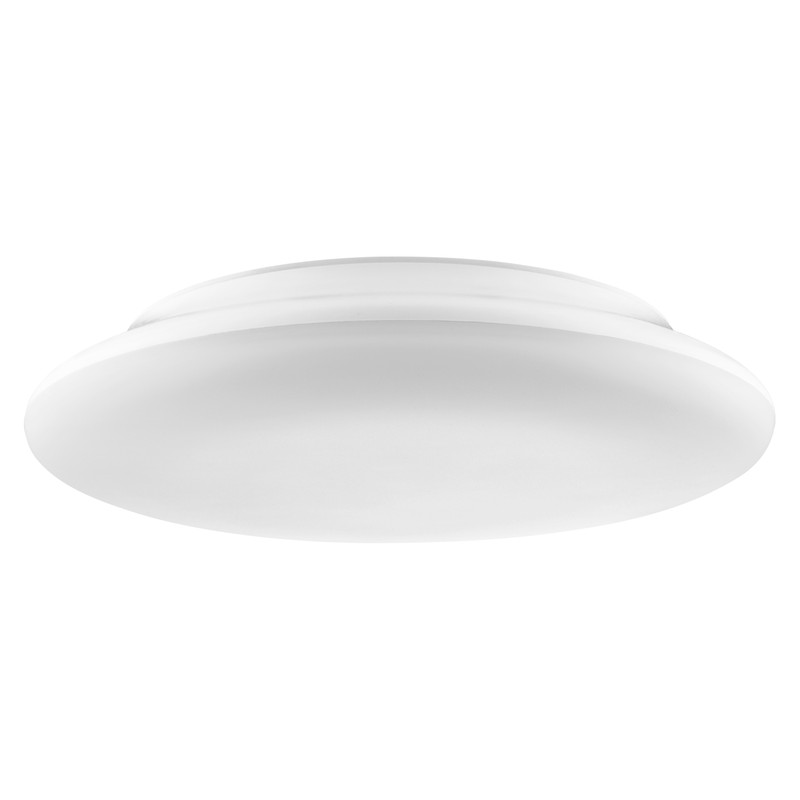

ELIA CL M2 25W
ELIA CL M2 25W - 1

ELIA CL M2 25W

Part number GWF1314MA840
  • LED device made from white polycarbonate designed for ceiling or surface mounting, ideal for lighting stairways, bathrooms/rest rooms and service areas, it is quick and easy to install, and features clean, minimalist lines
  • - Designed in two different sizes and power versions, it features a polycarbonate opal diffusing shell, a colour temperature of 4,000 K (neutral white) and a colour rendering index of more than 80
  • - It is also available in the Sensor version, with movement detection up to 8m, a radius of up to 120° and duration of 30 seconds, and in the Emergency version, the luminous flux is guaranteed for 3 hours of operation at 10%
  • - It has been designed to withstand temperature variations from -20°C to + 45°C, and offers protection from water and dust penetration of up to level IP54 and from shocks and impacts of up to level IK08
  • - Light and easy to handle, ELIA CL is easy to install thanks to the steel bracket on the back of the device for wall mounting, the quick-coupling terminal on the rear of the device for the electrical wiring and the bayonet locking mechanism for attaching the body of the light

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Luminaire lumen output
[lm]:
2600
Luminaire
wattage [W]:
25 W
Luminous efficacy [lm/W]:
104
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
WH-RAL9016 / White RAL9016
IP degree
of protection:
IP20
IP above/below ceiling:
IP20/IP54
IK-J-xxIP:
IK08 5J xx5
Protection class:
II
Optic:
OPAL - Opal
Net weight [kg]:
1.137
Overall diameter [mm]:
300
Overall height [mm]:
58

Mechanical features

Housing material:
Plastic
Diffuser material:
Plastic
Glow wire test [°C]:
750 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60

Installation

Application area:
Indoor
Mounting type:
Wall / Ceiling surface
Min. ambient temperature [°C]:
0
Max. ambient temperature [°C]:
45

Light features

MacAdam:
3
Lumen maintenance:
L80B50@50000h
Distribution of light emission:
Direct
UGR max.:
0.0

Photometric data

Technical drawings

Tech Design ELIA CL M2 25W 1++
