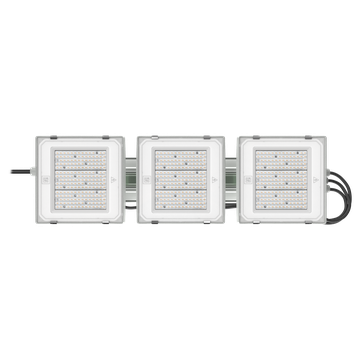

UNIQO 3M HLO
UNIQO 3M HLO
UNIQO 3M HLO
UNIQO 3M HLO
UNIQO 3M HLO - 1
UNIQO 3M HLO - 2
UNIQO 3M HLO - 3
UNIQO 3M HLO - 4

UNIQO 3M HLO

Part number LTH1312AQ857
  • - High bay luminaire designed with a modular concept to adapt to continuously advancing industrial, logistics, sports, and tertiary contexts that require flexible, efficient, reliable, and future-proof solutions
  • - Die-cast aluminum body with integrated heatsink fins
  • - Embedded internal heatsink fins for optimal heat dissipation of the LED sources
  • - Extruded aluminium driver box
  • - Polyester powder-coat finish in grey RAL 7035 colour
  • - Technolpolymer end caps
  • - Galvanized steel locking hardware
  • - LED board featuring a metal core PCB and high-efficacy LEDs
  • - SENSOR version features an integrated daylight and PIR sensor
  • - EMERGENCY version features an integrated battery pack with 3 hours of autonomy
  • - Exclusively designed PMMA lenses with high optical transmittance for maximum long-term stability and performance, even at elevated temperatures
  • - Standard tempered 4 mm transparent glass, offering high impact resistance and suitable for demanding applications such as sports halls
  • - Fast-mounting clips made of polished stainless steel for quick and easy intervention
  • - It can withstand high ambient temperatures while delivering maximum luminous output without compromising the product's lifespan
  • - The product comes standard with a suspension kit and can be installed in alternative configurations using the available mounting accessories, which can be ordered separately
  • - Additional accessories and spare parts are available
  • - The range is certified by third-party entities
  • - It is certified to the DIN 18032-2 ball impact resistance standard, making it suitable for installation in gymnasiums and indoor sports facilities. Some mounting options may not be compatible with this type of application

Product data

ETIM Group:
EG000027
ETIM Class:
EC001716

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
48000
Luminaire lumen output
[lm]:
42880
Luminaire
wattage [W]:
258 W
Luminous efficacy [lm/W]:
166
CRI:
80
Colour
temperature [K]:
5700
Colour /
Finishing:
GR-RAL7035 / Grey RAL7035 / Matt
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK08 5J xx5
Protection class:
I
Optic:
ELL - Elliptical
Beam
angle:
35°x90°
Net weight [kg]:
15.503
Overall length [mm]:
917
Overall width [mm]:
260
Overall height [mm]:
153

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
850°C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
0.96
Surge protection | Common [kV]:
10.000000
Surge protection | Differential [kV]:
6.000000
Inrush current [A/μs]:
21 / 3
C10 1.5 mm²:
4
C16 2.5 mm²:
7
B10 1.5 mm²:
3
B16 2.5 mm²:
6

Installation

Application area:
Indoor
Mounting type:
Hi / low-bay
Min. ambient temperature [°C]:
-30
Max. ambient temperature [°C]:
50

Light features

MacAdam:
3
Lumen maintenance:
L80B10@125000h
Distribution of light emission:
Direct

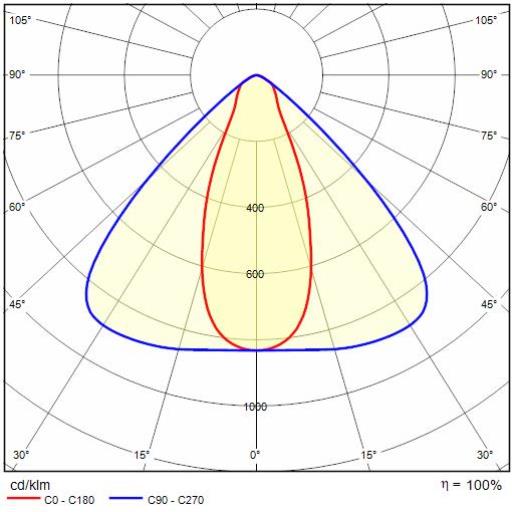

Photometric data

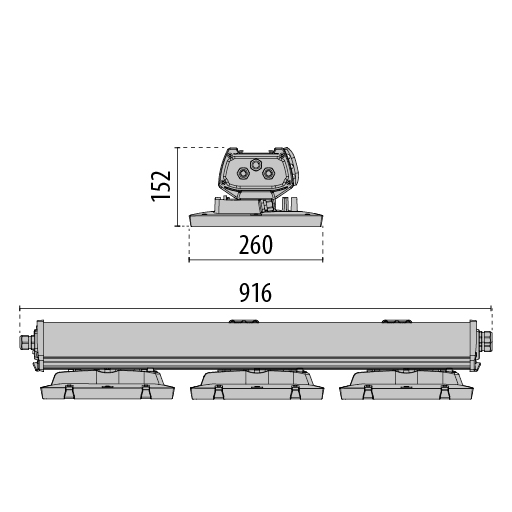

Technical drawings

Tech Design UNIQO 3M HLO 1++

Optional accessories

UNIQO

Part number Colour /
Finishing
Description Downloads
Bracket kit for 3M version
LTH1A2310
Bracket kit for 3M version
Downloads
Support bracket 3M version
LTH1A2360
Support bracket 3M version
Downloads
Ceiling-mounting kit for 2M and 3M versions
LTH1A2220
Ceiling-mounting kit for 2M and 3M versions
