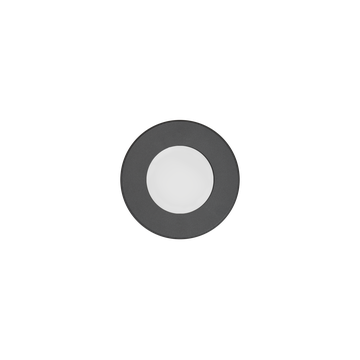

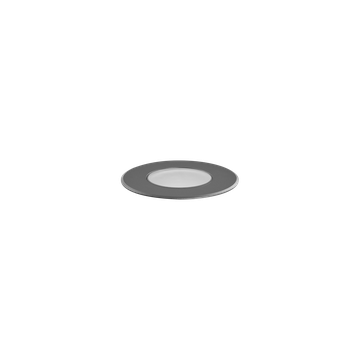

CRICKET+ 10 C/EW

Part number 3109820

Series of reduced depth in-ground luminaires, comprising:
- Black painted anodised die-cast aluminium housing
- Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
- Extra-clear toughened flat safety glass with acid-etched finish (C/EW versions)
- Die-cast aluminium trim powder-coated
- Mains connection through waterproof connection system (WATER-STOP)
- Technopolymer recess box to be ordered separately
- Stainless steel locking hardware
- Floor mounted luminaires are usually subject to harsh conditions. For proper use and safety, they must be correctly installed by qualified personnel and according to the manual instructions
- Do not install luminaires in sunken areas

Product data

ETIM Group:

EG000027

ETIM Class:

EC000758

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

475

Luminaire lumen output
[lm]:

278

Luminaire
wattage [W]:

5 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP67

Impact resistance / impact energy:

IK08 9J xx5

Protection class:

Optic:

C/EW - Circular Extra-Wide

Net weight [kg]:

0.58

Overall diameter [mm]:

105

Overall height [mm]:

Mechanical features

Shape:

Round ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

650 °C

Dinamic load [kg]:

6000

Speed [km/h]:

Static load [kg]:

2000

Shear load [kN]:

Resistance to torque [Nm]:

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 25

C10 1.5 mm²:

C16 2.5 mm²:

103

B10 1.5 mm²:

B16 2.5 mm²:

103

Installation

Application area:

Outdoor

Mounting type:

Ingrounds

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Glass temperature [°C]:

Ingrounds classification:

Min. distance from lighted object [m]:

0.50

Light features

MacAdam:

Lumen maintenance:

L90B10@94000h

Distribution of light emission:

Direct

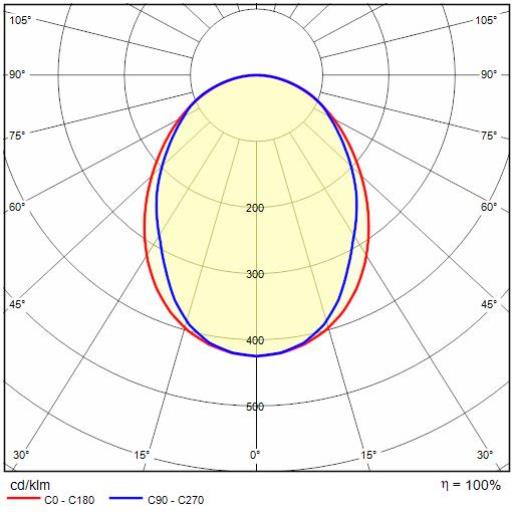

Photometric data

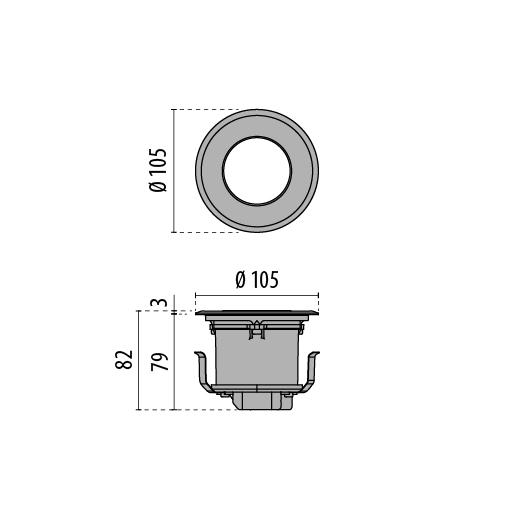

Technical drawings

Mandatory accessories

CRICKET+ 10

	Part number	Colour / Finishing	Description	Downloads
	3109879		Recessed box CRICKET+ 10 MARINE	Add to technical datasheetRemove from technical datasheet Downloads Documentation: CRICKET+ 10 - 3109879
