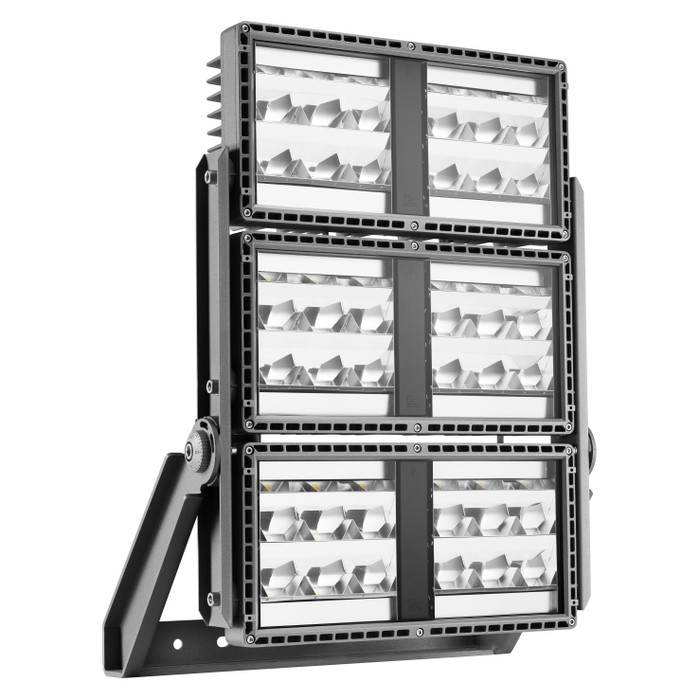

SMART [PRO] 2.0 3X2M SYMMETRIC
SMART [PRO] 2.0 3X2M SYMMETRIC - 1

SMART [PRO] 2.0 3X2M SYMMETRIC

Part number GWP2630AB957
  • High-power outdoor and indoor LED projector, suitable for lighting large areas and sports facilities
  • - The body is fabricated in aluminium die casting EN AB 46100, with integrated passive heat dissipation, powder-coated polyester paint with trivalent passivation
  • - Available with nine different types of optics, three types of Colour Temperature (3,000/4,000K/5,700K) and three different types of Color Rendering Index (CRI>70, CRI>80, CRI>90)
  • - PCB metal core with CSP LED
  • - Remote power supply unit in DALI or DMX options, multiple electrical connection kits, supplied separately
  • - Designed to withstand surges up to 5 kV (RCCB mode) and 10 kV (common mode), temperature variations from -30°C to +50°C, water and dust penetration up to IP66 protection grade and shockproof up to IK08 grade
  • - Insulation class I
  • - Electrical connection via IP68 connector for 1.5mm2 cables
  • - Reflector made of metallic HT PC or anodised and polished aluminium
  • - Hardened front glass with 4mm thickness, anti-ageing silicone seals and A2 stainless steel exterior screws
  • - Fixing screws with GEOMET® treatment
  • - Equipped with a venting and anti-condensation valve
  • - It can be installed on the wall, ceiling or ground thanks to the polyester powder coated galvanised steel bracket with trivalent passivation, equipped with adjustable goniometric scale and supplied in a kit
  • - L90B10 (Tq 25°C) = 40.000 h; L80B10 (Tq 25°C) = 90.000 h

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Luminaire lumen output
[lm]:
102400
Luminaire
wattage [W]:
970 W
Luminous efficacy [lm/W]:
106
CRI:
90
Colour
temperature [K]:
5700
Colour /
Finishing:
Graphite grey / Graphite grey
IP degree
of protection:
IP66
IK-J-xxIP:
IK08 5J xx5
Protection class:
I
Optic:
S2 - Symmetric
Beam
angle:
Medium
Net weight [kg]:
29.076
Overall length [mm]:
720
Overall width [mm]:
540
Overall height [mm]:
287

Mechanical features

Housing material:
Aluminium
Diffuser material:
Glass

Installation

Application area:
Outdoor
Mounting type:
Sports / High Powered Floodlighting
Min. ambient temperature [°C]:
-30
Max. ambient temperature [°C]:
50

Light features

MacAdam:
3
Lumen maintenance:
L90B10@40000h
Distribution of light emission:
Direct
UGR max.:
0.0
Luminous Intensity Class:
G*6
IPEA* (road lighting):
B
IPEA* (large areas, roundabouts):
A+
IPEA* (cycle-pedestrian):
A
IPEA* (green areas):
A+
IPEA* (historic city centers):
A6+

Photometric data

Photometric Lvk SMART [PRO] 2.0 3X2M SYMMETRIC 1

Technical drawings

Tech Design SMART [PRO] 2.0 3X2M SYMMETRIC 1++

Control gear

SMART [PRO] 2.0 3X2M

Part number Colour /
Finishing		 Description Downloads
Power supply unit DALI 220-400 V
GWP20031
Power supply unit DALI 220-400 V
Downloads
Power supply unit DMX 220-400 V
GWP20032
Power supply unit DMX 220-400 V
Downloads

Optional accessories

SMART [PRO] 2.0 3X2M

Part number Colour /
Finishing		 Description Downloads
Replacement glass
GWP2903
Replacement glass
Downloads
Red Dot pointer support
GWP2904
Red Dot pointer support
Downloads
Anti-glare louvre
GWP2905
Anti-glare louvre
Downloads
Connector GW Connect 12 poles
GWP20004
Connector GW Connect 12 poles
Downloads
3-way connection kit
GWP20113
3-way connection kit
Downloads
4-way connection kit
GWP20114
4-way connection kit
Downloads
Power supply unit mounting bracket
GWP20006
Power supply unit mounting bracket
Downloads
H07RN-F 12x1,5 mm2 cable - skein 50 m
GWP20005
H07RN-F 12x1,5 mm2 cable - skein 50 m
Downloads
