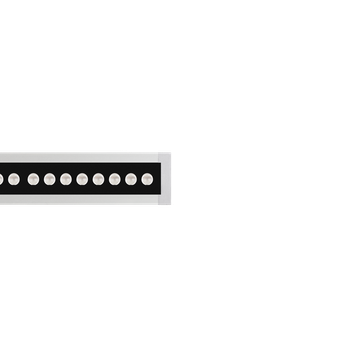

STRIP SQUARE+ INGROUND 550

STRIP SQUARE+ INGROUND 550

STRIP SQUARE+ INGROUND 550 - 1

STRIP SQUARE+ INGROUND 550 - 2

STRIP SQUARE+ INGROUND 550

Part number 3109356

Recessed inground luminaire for interior and outdoor use comprising:
- Extruded anodised aluminium housing
- Toughened, glass diffuser, silk-screened on the inside
- Coated die-cast aluminium end caps
- Anti-ageing custom moulded silicone sealing gasket(s)
- Complete with IP-rated through wiring connection box (WATER-STOP) for cables Ø 5 mm to Ø 13 mm
- Stainless steel locking hardware
- High heat-dissipating aluminium gear tray for increased inner components lifespan
- Built-in driver
- Recessed box to be ordered separately
- Through-wiring designed

Product data

ETIM Group:

EG000027

ETIM Class:

EC000758

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2130

Luminaire lumen output
[lm]:

1468

Luminaire
wattage [W]:

14 W

Luminous efficacy [lm/W]:

105

CRI:

80

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-11 / Anodised grey / Matt

IP degree
of protection:

IP67

Impact resistance / impact energy:

IK10 20J xx9

Protection class:

I

Optic:

A18/M - Asymmetric Medium

Net weight [kg]:

2.72

Overall length [mm]:

550

Overall width [mm]:

100

Overall height [mm]:

72

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Dinamic load [kg]:

7500

Speed [km/h]:

30

Static load [kg]:

2000

Shear load [kN]:

5

Resistance to torque [Nm]:

50

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

52

C16 2.5 mm²:

83

B10 1.5 mm²:

32

B16 2.5 mm²:

50

Installation

Application area:

Outdoor

Mounting type:

Linear ingrounds

Min. ambient temperature [°C]:

-25

Max. ambient temperature [°C]:

45

Glass temperature [°C]:

35

Ingrounds classification:

Light features

MacAdam:

3

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Photometric data

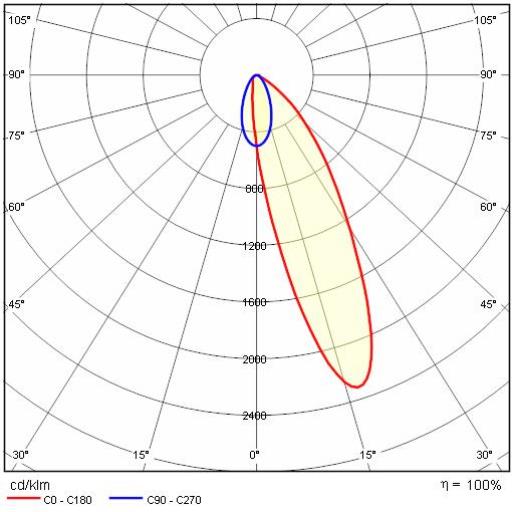

Photometric Lvk STRIP SQUARE+ INGROUND 550 1

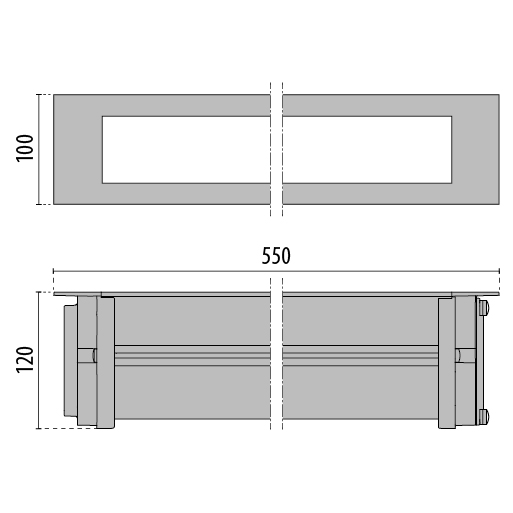

Technical drawings

Tech Design STRIP SQUARE+ INGROUND 550 1++

Mandatory accessories

STRIP SQUARE+ INGROUND

	Part number	Colour / Finishing	Description	Downloads
	310422		Recessed fixing kit L 590 mm	Add to technical datasheetRemove from technical datasheet Downloads Documentation: STRIP SQUARE+ INGROUND - 310422
