CRICKET+ 20 C/M

IN
CRICKET+ 20 C/M
CRICKET+ 20 C/M
CRICKET+ 20 C/M - 1
CRICKET+ 20 C/M - 2
Part number 073133
Lampholder: LED
Wattage: 26 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP67
CRI: 80
Kelvin: 3000
Optic: Circular Medium optics
Beam angle: 30°
BUG Rating: B3-U0-G0
Luminaire lumen output (lm): 2373 lm
L: L90
B: B10
Lifetime: 94000 h
cULus:
Voltage: 120/277 V

Description

  • In-ground series. Fixtures consist of:
  • - Copper-free die-cast corrosion-resistant aluminum housing and trim.
  • - Copper-free die-cast corrosion-resistant aluminum AISI 316 stainless steel covered trim.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Circular Medium optics (C/M).
  • - Asymmetric Medium optics (A/M).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - Thermoplastic compression-molded rough-in kit to be ordered separately.
  • - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

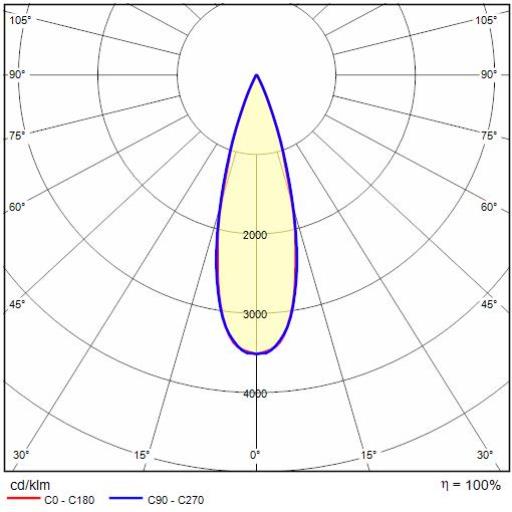

Photometric data

Photometric Lvk CRICKET+ 20 C/M 1

Technical drawings

Tech Design CRICKET+ 20 C/M

REQUIRED FOR INSTALLATION

CRICKET+ 20

Recessed fixing kit
3111135
Recessed fixing kit
