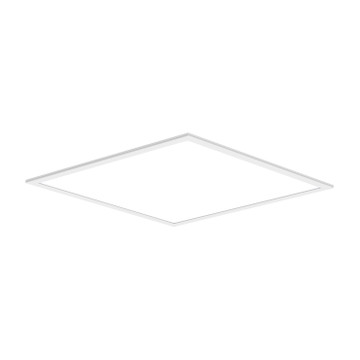

ELIA PL IP65 M2 600 OP

Part number GWF1910MA840

Modular recessed LED luminaire for indoor applications which require a high resistance against penetration of water and dust, such as high-humidity ambients
- Available in 3 different sizes (300 x 1200 mm, 600 x 600 mm and 620 x 620 mm), it is suitable for flush-mounting in modular ceilings and can alternatively be ceiling or suspension-mounted using dedicated accessories (to be ordered separately)
- The range allows for great flexibility with its possible combinations of colour temperatures: it can be ordered in 3,000 K (warm white) or 4,000 K (neutral white), both with a colour rendering index (CRI) of 80
- The luminaire is equipped with an opal diffuser with UGR lower than 22 and with an On/Off external power supply which is also IP65-rated (included with the product). Both sides of the luminaire are IP65 rated

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Luminaire lumen output
[lm]:

3600

Luminaire
wattage [W]:

36 W

Luminous efficacy [lm/W]:

100

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

WH-RAL9016 / White RAL9016

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK03 0.35J xx1

Protection class:

Optic:

OPAL - Opal

Net weight [kg]:

3.523

Overall length [mm]:

595

Overall width [mm]:

595

Overall height [mm]:

Mechanical features

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

200/240

Input frequency [Hz]:

50/60

Installation

Application area:

Indoor

Mounting type:

Ceiling recessed

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B50@50000h

Distribution of light emission:

Direct

UGR max.:

22.0

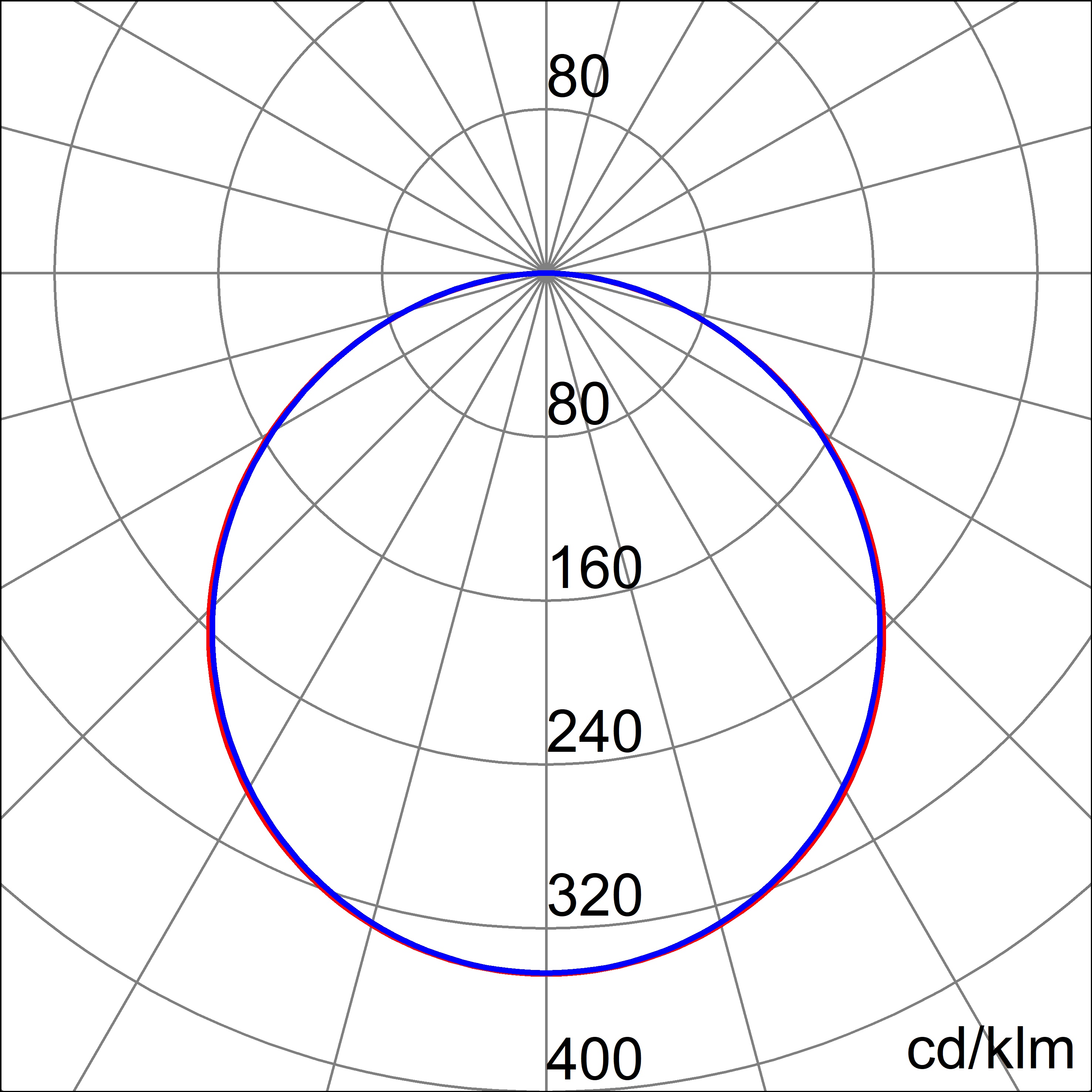

Photometric data

Photometric Lvk ELIA PL IP65 M2 600 OP 1

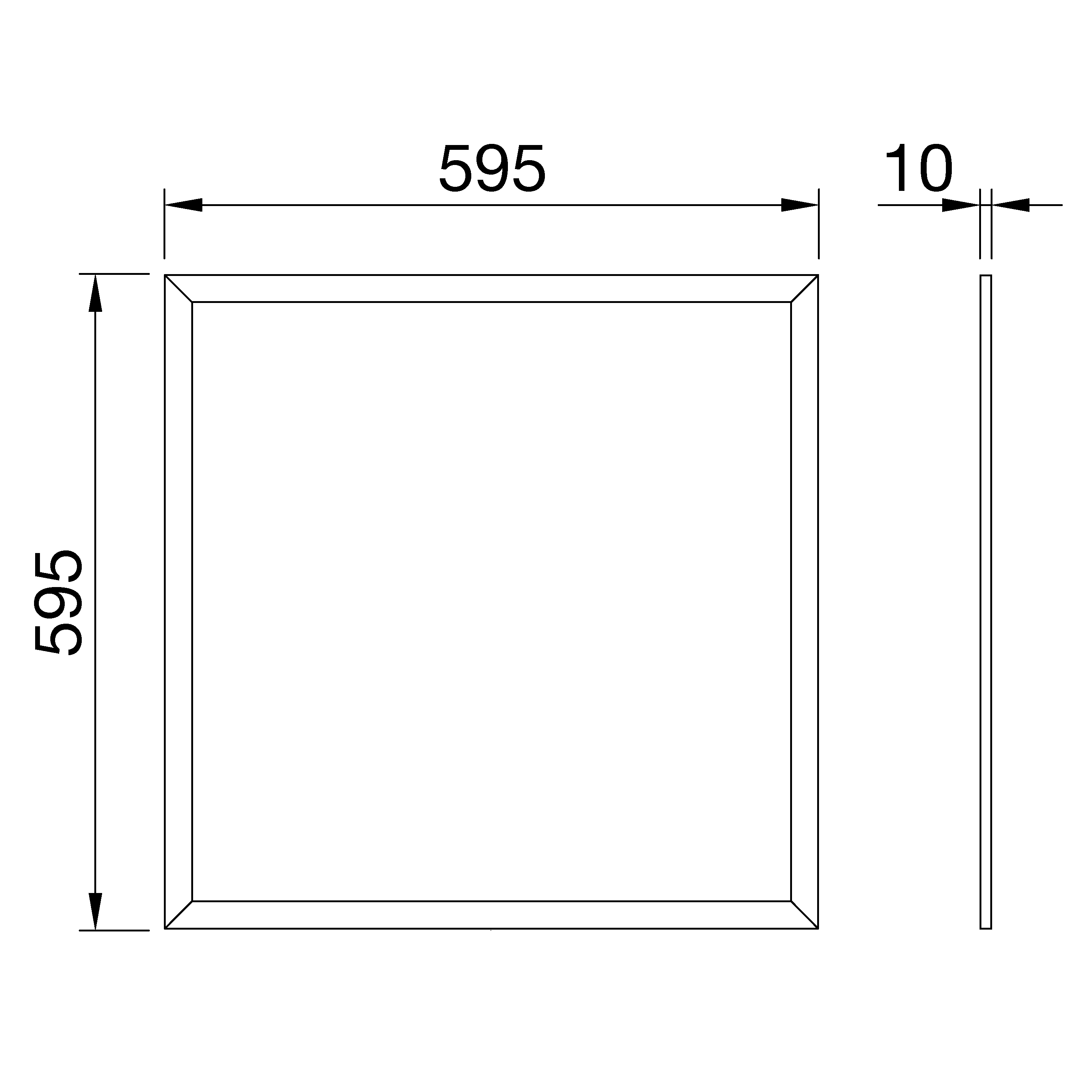

Technical drawings

Optional accessories

ELIA PL IP65 M2 600

Part number	Description	Downloads
GWF1924	Suspension kit with 4 cables	Add to technical datasheetRemove from technical datasheet Downloads Documentation: ELIA PL IP65 M2 600 - GWF1924
GWF1923	Safety cable kit	Add to technical datasheetRemove from technical datasheet Downloads Documentation: ELIA PL IP65 M2 600 - GWF1923
GWF1925	Kit with 4 springs for flush-mounting	Add to technical datasheetRemove from technical datasheet Downloads Documentation: ELIA PL IP65 M2 600 - GWF1925
GWF1930	Ceiling box kit 600x600 mm - white	Add to technical datasheetRemove from technical datasheet Downloads Documentation: ELIA PL IP65 M2 600 - GWF1930
GWF1917	Assemblable ceiling box kit 600x600 mm - white	Add to technical datasheetRemove from technical datasheet Downloads Documentation: ELIA PL IP65 M2 600 - GWF1917
