FL SQUARE 600 SM OP
FL SQUARE 600 SM OP - 1

FL SQUARE 600 SM OP

Part number 8600691403300
  • Surface-mounted quadratic LED luminaire for indoors, comprising of:
  • - Extruded aluminium housing profile, powder-coated
  • - LED Sidelight-Technology and light orienting plastic optic for a homogenous light distribution over the entire area of the diffuser
  • - Predominantly direct light distribution
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - Built-in driver

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
5720
Luminaire lumen output
[lm]:
4780
Luminaire
wattage [W]:
40 W
Luminous efficacy [lm/W]:
120
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
WH-RAL9016 / White RAL9016 / Textured
IP degree
of protection:
IP20
Impact resistance / impact energy:
IK05 0.7J xx3
Protection class:
I
Optic:
S/B - Symmetric mainly direct
Beam
angle:
2 x 57°
Net weight [kg]:
5.7
Overall length [mm]:
596
Overall width [mm]:
596
Overall height [mm]:
52

Mechanical features

Shape:
Square ≥ 300 mm
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
0.9
C10 1.5 mm²:
35
C16 2.5 mm²:
65
B10 1.5 mm²:
35
B16 2.5 mm²:
65
EEI:
A2

Installation

Application area:
Indoor
Mounting type:
Ceiling surface
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct/Indirect
DFF - Downward Flux Fraction [%]:
95
UFF - Upward Flux Fraction [%]:
5
UGR max.:
17.0

Photometric data

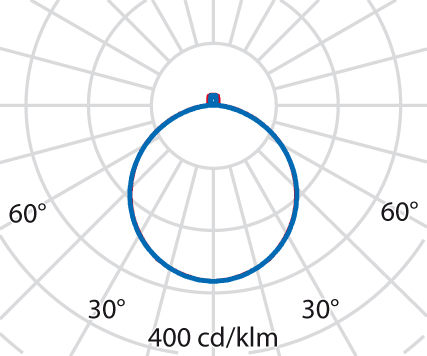

Photometric Lvk FL SQUARE 600 SM OP 1

Technical drawings

Tech Design FL SQUARE 600 SM OP 1++
