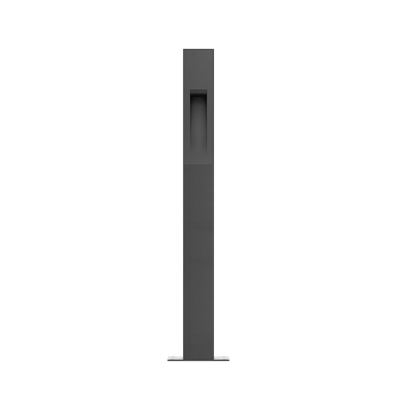

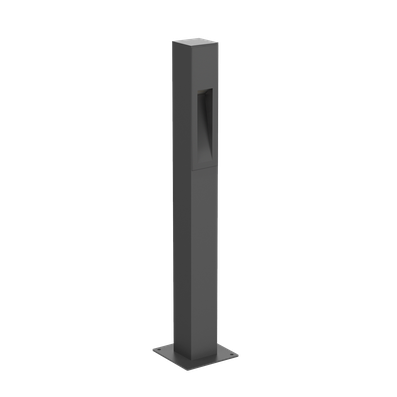

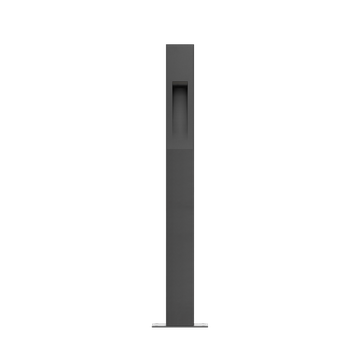

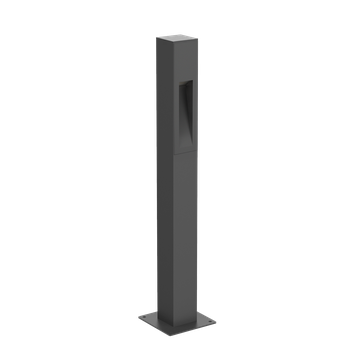

INSERT+ 1V BOLLARD 600

INSERT+ 1V BOLLARD 600
INSERT+ 1V BOLLARD 600
INSERT+ 1V BOLLARD 600 - 1
INSERT+ 1V BOLLARD 600 - 2
Part number 070773
Lampholder: LED
Wattage: 5 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Optic: Asymmetric Extra-Wide

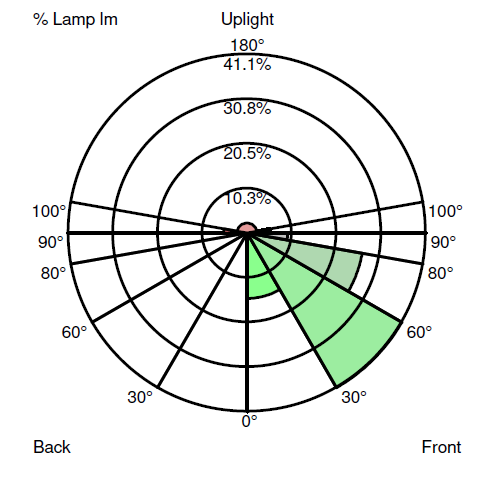

BUG Rating: B0-U2-G1
Luminaire lumen output [lm]: 333 lm
L: L80
B: B10
Lifetime: 78000 h
cULus:
Min. ambient temperature [°C]: -35
Max. ambient temperature [°C]: 45

Description

  • Pathway bollard series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and ring/faceplate.
  • - Copper-free (<1%) aluminum extruded post.
  • - Frosted, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - To be used with a 24 V low-voltage driver (ordered separately, consult factory for more information).
  • - Optional, integral, line-voltage, passive infrared motion sensor (PIR SENSOR versions).
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Aluminum ground base plate included for bollards.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
  • - 5-year warranty.

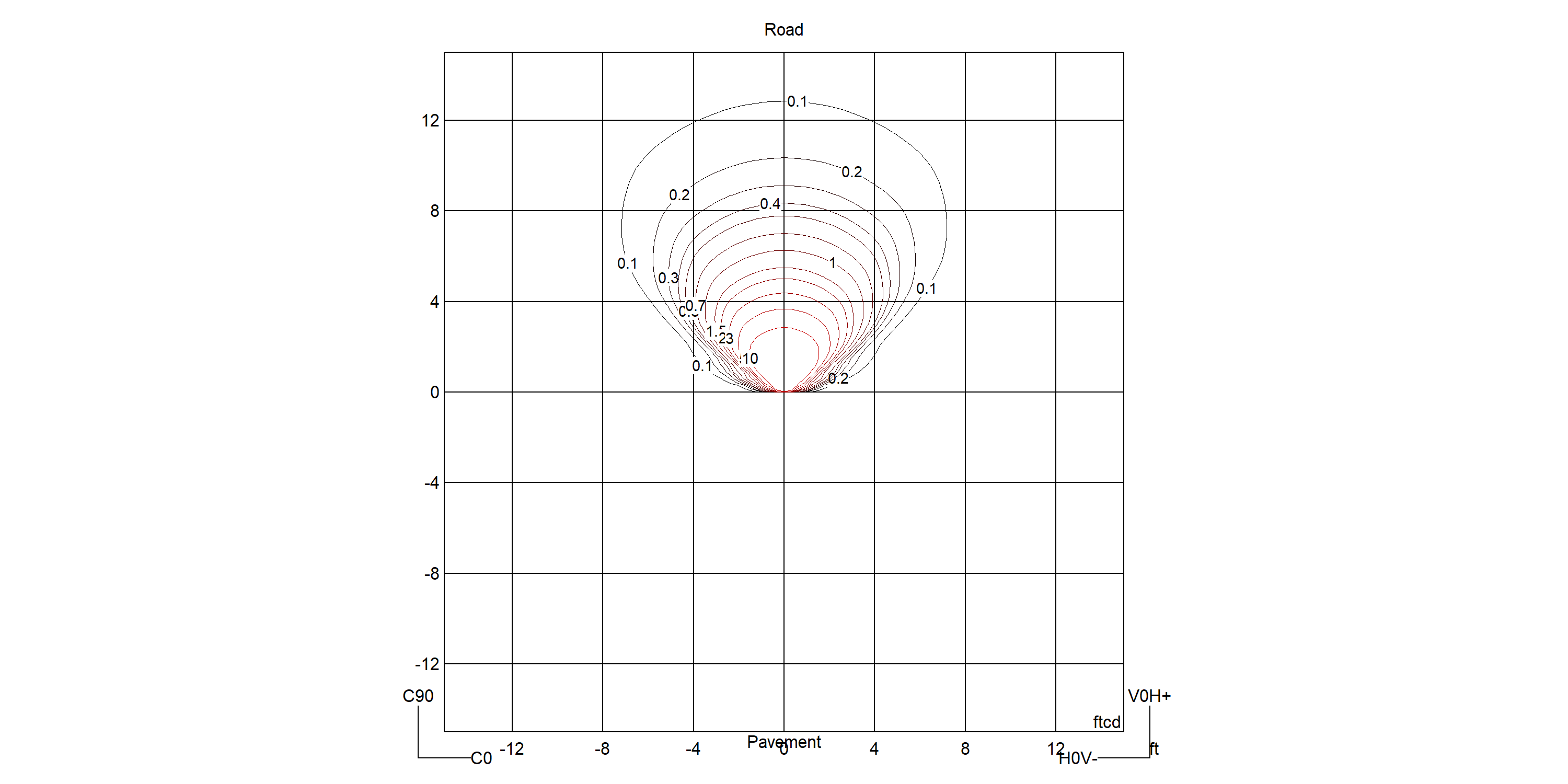

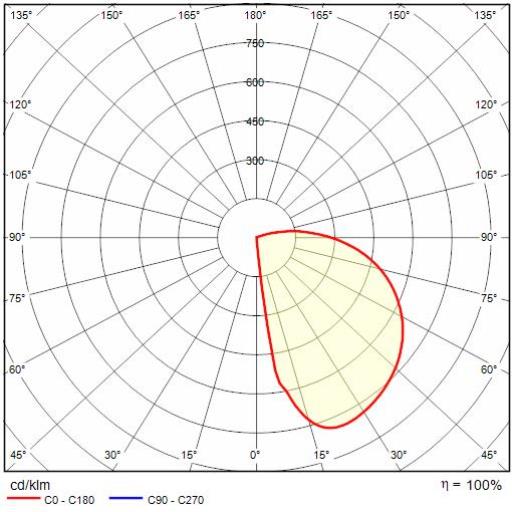

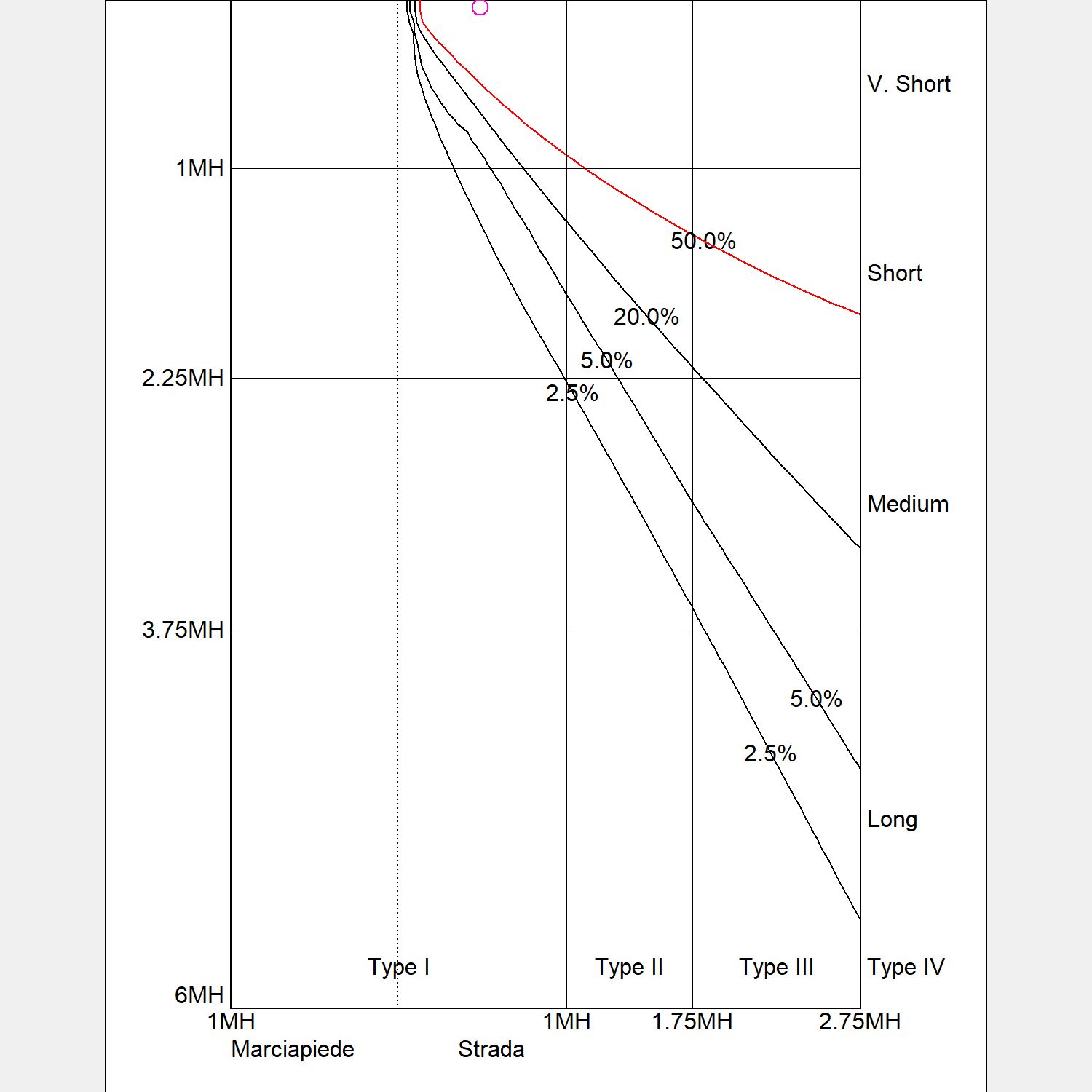

Photometric data

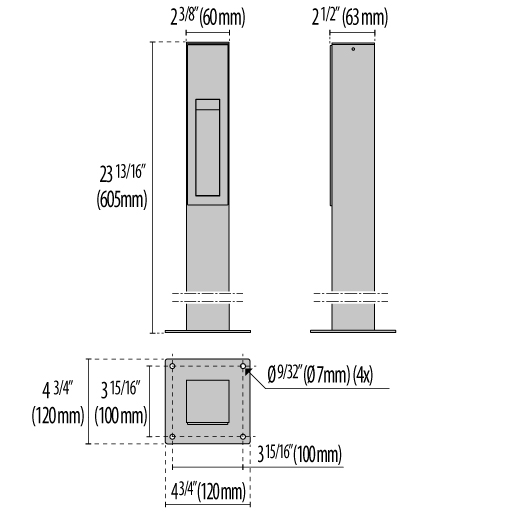

Technical drawings

Tech Design INSERT+ 1V BOLLARD 600 1++
