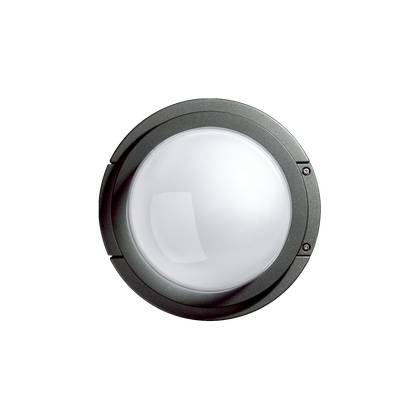

The MAGICLICK is a series of luminaires suitable for indoors and outdoors, ceiling or wall mount, available in two shapes. The MAGICLICK 25 LED is the most used of all the MAGICLICK series of surface mount fixtures and is now available in higher output for an incredible price and value. With lumen levels to suit your project specifications in a sleek die-cast body with a pressed glass lens, the MAGICLICK provides internal glare control, consistent lighting uniformity, and a beautiful architectural design. Installation options include a standard J-Box mounting as well as the ability to accommodate side conduit entry make the install of the MAGICLICK quick and easy. The low total cost of ownership means that the MAGICLICK is the preferred choice of owners, contractors, and maintenance personnel alike. The MAGICLICK 25 also offers an integral emergency and dimming standard.
With LED MAGICLICK fixtures ranging from three diameters, the MAGICLICK collection is another premiere option for your surface mount fixture needs.
Ceiling- and wall- mount series.
Fixtures consist of:
Construction
Multi-step powder-coat painting process, optimized against UV rays and corrosion.
Copper-free (<1%) die-cast aluminum housing, ring, and faceplates.
Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
High transmittance, internally coated, pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
The ring/faceplate is integral with the diffuser.
Custom molded, anti-aging gasket(s).
Stainless steel external hardware.
Installation
Available in three standard sizes of Ø10.4" x D4.6"(MAGICLICK ROUND 20), Ø12.2" x D4.4" (MAGICLICK ROUND 25) and Ø20.2" x D3.3" (MAGICLICK MAXI). MAGICLICK OVAL overall standard size is H11" x L8.3" x D4.6" with ring or Shade H, Shade V faceplate.
Standard hinge-style housing allows for a simplified installation.
Tiltable LED board mounting bracket allows for quick and easy installation (ROUND 25 / MAXI).
Optics
100% uniform diffused light emission.
Electrical
Input voltage: 120-277 V (50 / 60 Hz), integral driver.
Optional, integral, emergency battery-pack designed for a minimum operation of 90 minutes (EMPK versions).
Options
The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
Listings
UL Wet location listed. IP55 rated.
UL Wet location listed. IP65 rated (MAGICLICK MAXI).
Product meets Buy American Act (BAA) requirements within ARRA.
ADA compliant (MAGICLICK MAXI).
Consult factory for which version qualifies for the PRONTO-SHIP program. All Rough-Ins are available to ship within 48-72 hrs. Orders must be marked "PRONTO."
Photometric data measured according to UNI EN 13032-1/4 and IES LM-79-08
Actual performance may differ as a result of the end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications are subject to change without notice.
Warranty
10-year glass warranty.
5-year limited warranty. Complete warranty terms located at www.performanceinlighting.com
