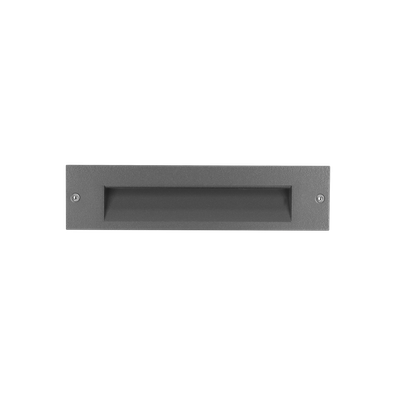

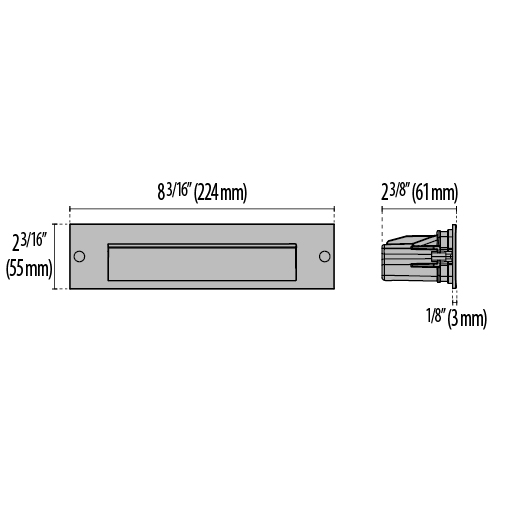

INSERT+ 1 [8.82”]

Description

• Recessed wall steplight series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing and ring/faceplate.
• - Frosted, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.

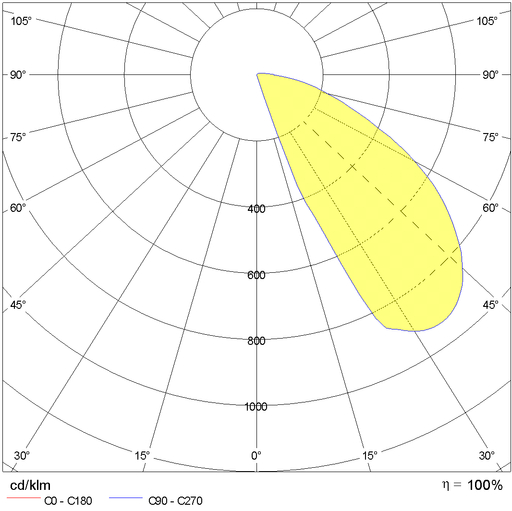

• - Type III light distribution.
• - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
• - Pre-wired factory sealed cable for external electrical connection included.

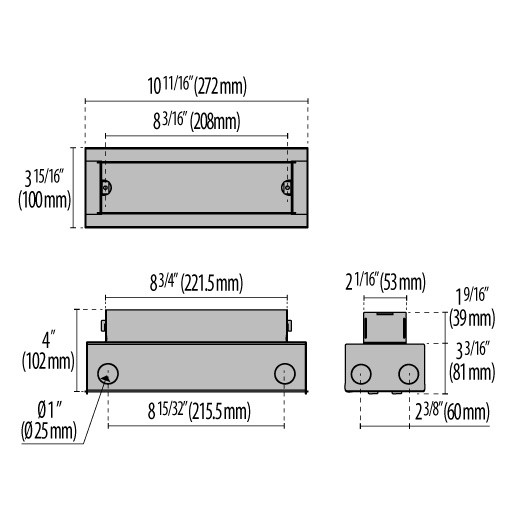

• - Stainless steel recessed rough-in kit to be ordered separately.

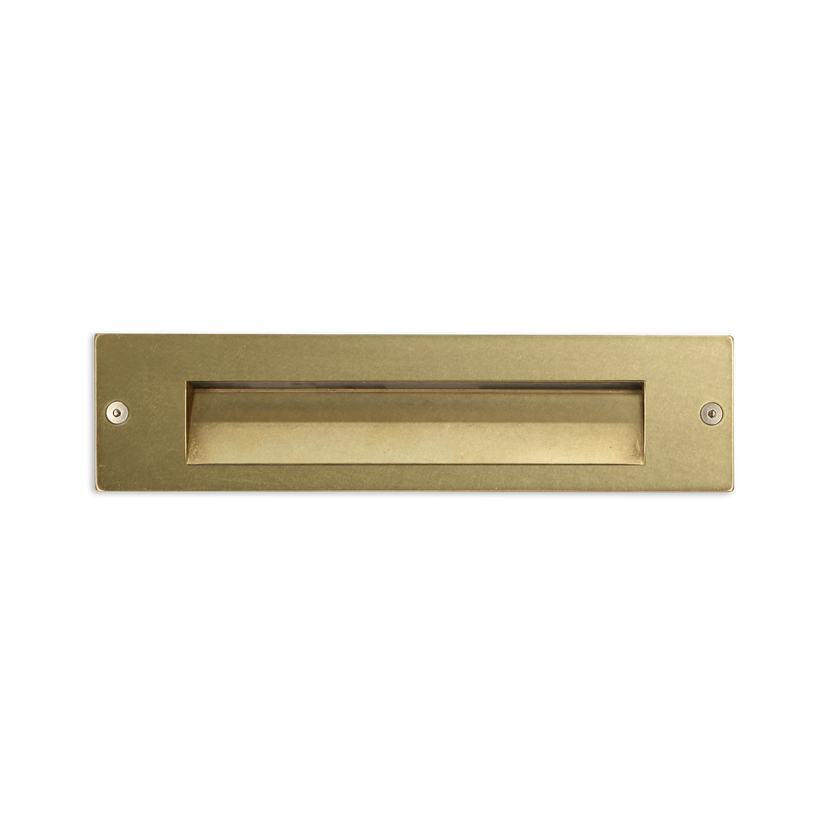

• - Optional INSERT+ 1 marine-grade, polished, brass faceplate suitable for coastal applications available (ordered separately).
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
