SPILLO MINI

IN
SPILLO MINI
SPILLO MINI
SPILLO MINI
SPILLO MINI

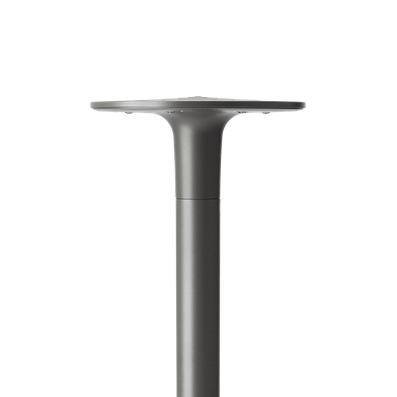

SPILLO MINI - 1

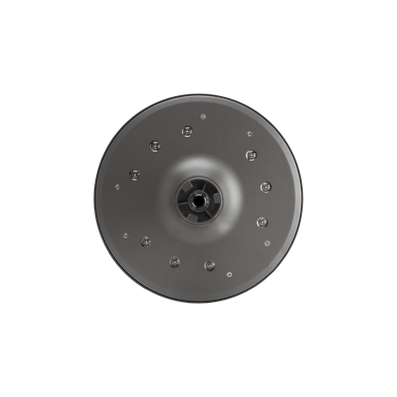

SPILLO MINI - 2

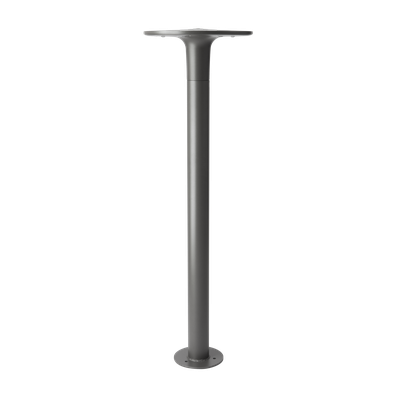

SPILLO MINI - 3

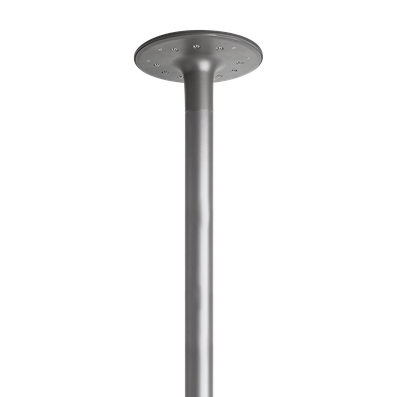

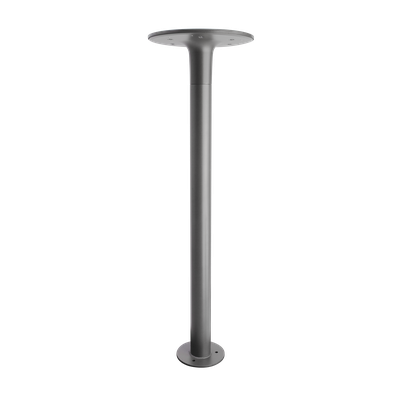

SPILLO MINI - 4
Part number 071432
Lampholder: LED
Wattage: 22 W
Finish: AN-96 / IRON GRAY / TEXTURED
Degree of protection: IP65
CRI: 70
Kelvin: 4000
Luminaire lumen output: 1482 lm
L: L90
Lifetime: 60000 h
cULus:
Voltage: 120-277V

Description

  • Pathway bollard series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and top cap.
  • - Copper-free aluminum extruded post.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - High-transmittance transparent optics.
  • - The "Secure Light Distribution" system can bypass individual diodes in the event of a single LED failure to ensure continuous uniform light distribution.
  • - IESNA Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Anchor bolts available for bollards (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-cataloged CCT (Kelvin) options.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Consult factory for custom post height options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

Photometric data

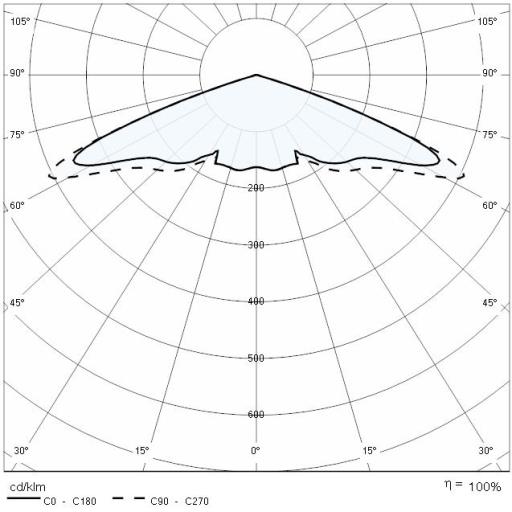

Photometric Lvk SPILLO MINI 1

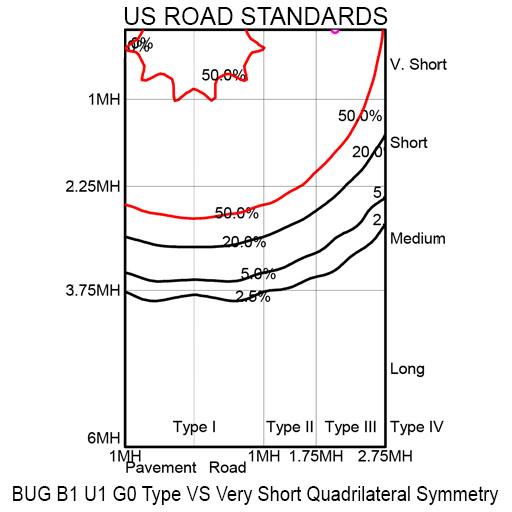

Photometric Lvk SPILLO MINI 2
Photometric Lvk SPILLO MINI 3

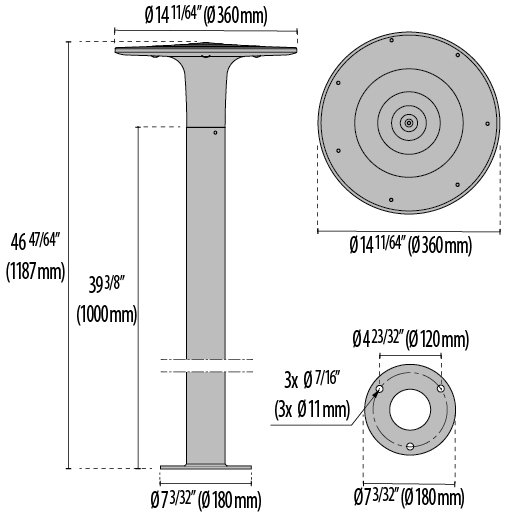

Technical drawings

Tech Design SPILLO MINI

OPTIONAL ACCESSORIES

SPILLO

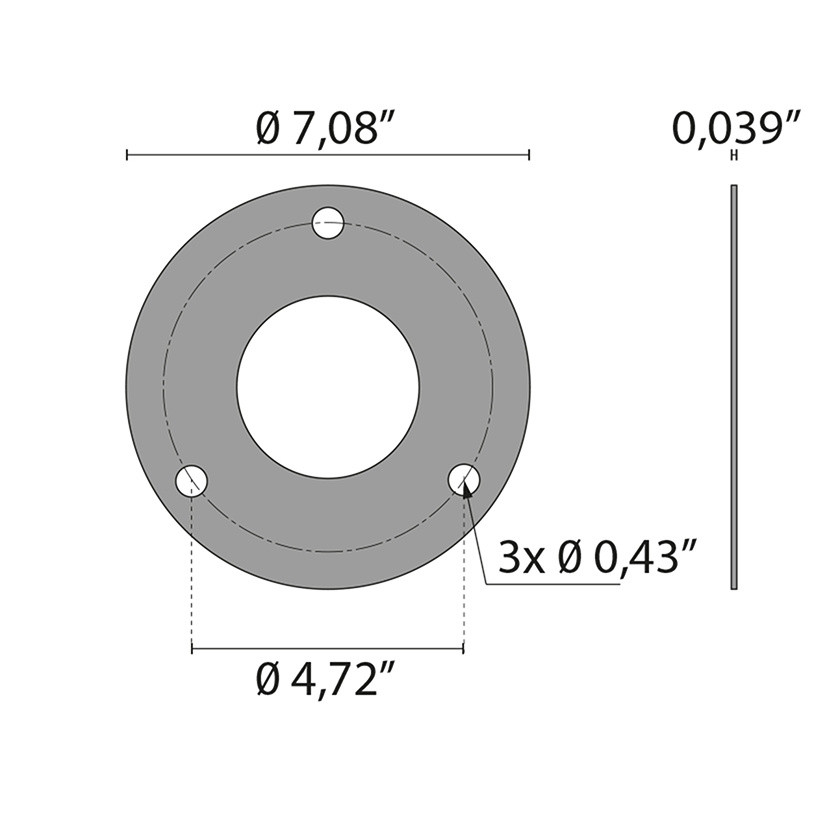

Fixing plate Spillo Mini
9395
Fixing plate Spillo Mini
