Q-LIGHT
Q-LIGHT - 1
Part number 070345
Lampholder: LED
Wattage: 14 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Optic: Symmetric Wide
Luminaire lumen output [lm]: 1032 lm
L: L90
B: B10
Lifetime: 36000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -20
Max. ambient temperature [°C]: 35

Description

  • Pathway bollard series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) aluminum extruded post.
  • - Copper-free (<1%) precision die-cast aluminum housing and top cap.
  • - Clear UV-stabilized, high-impact resistant diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - ustom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Steel ground base plate included for bollards.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

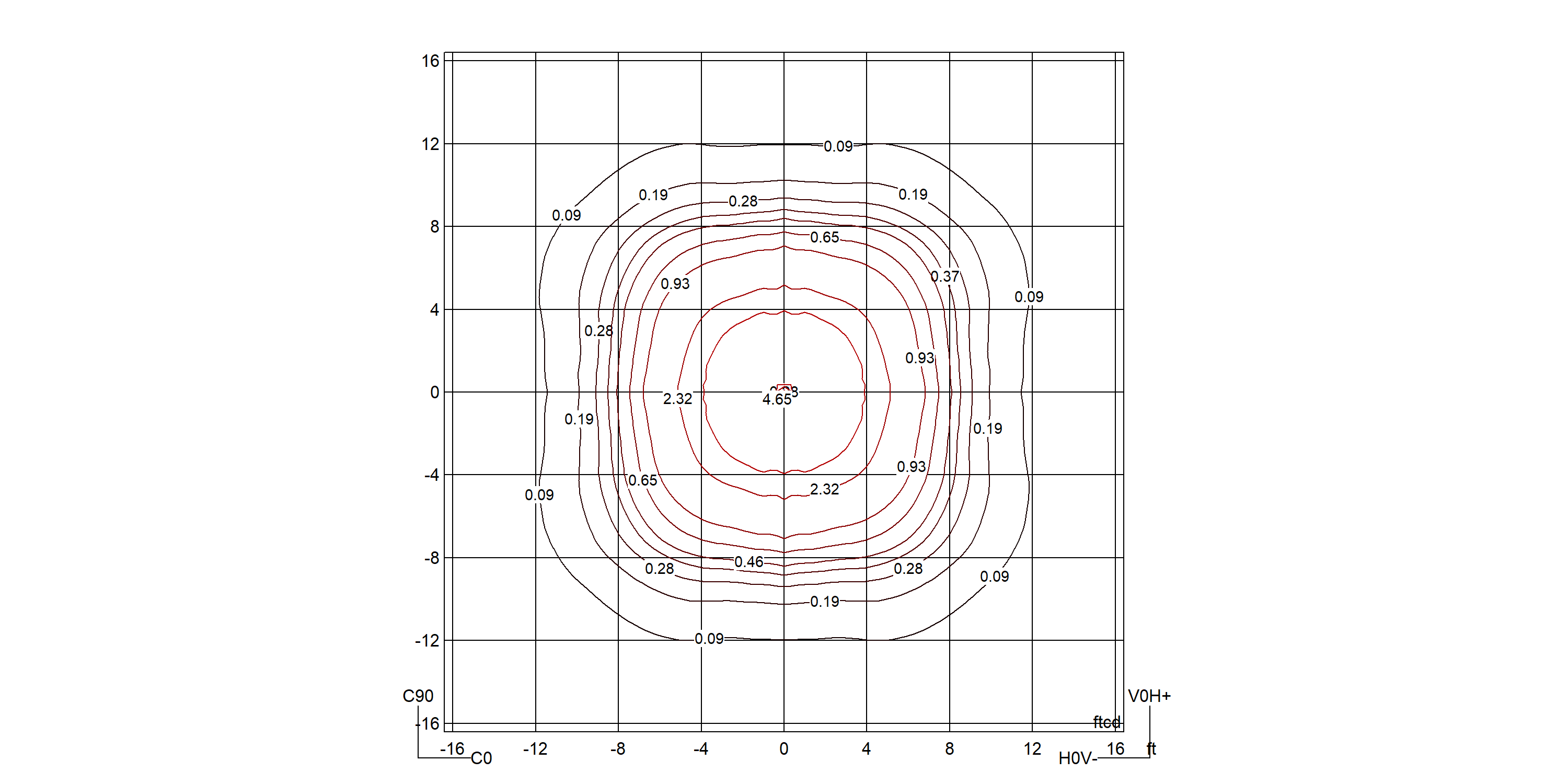

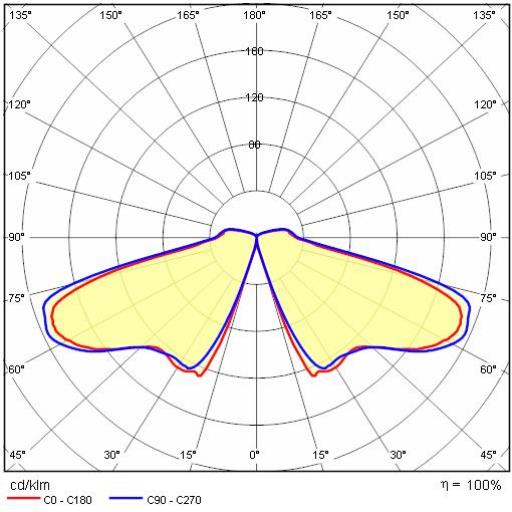

Photometric data

Technical drawings

Tech Design Q-LIGHT 1++

OPTIONAL ACCESSORIES

Q-LIGHT

310398
Baseplate Q-series
