A sharp edge family

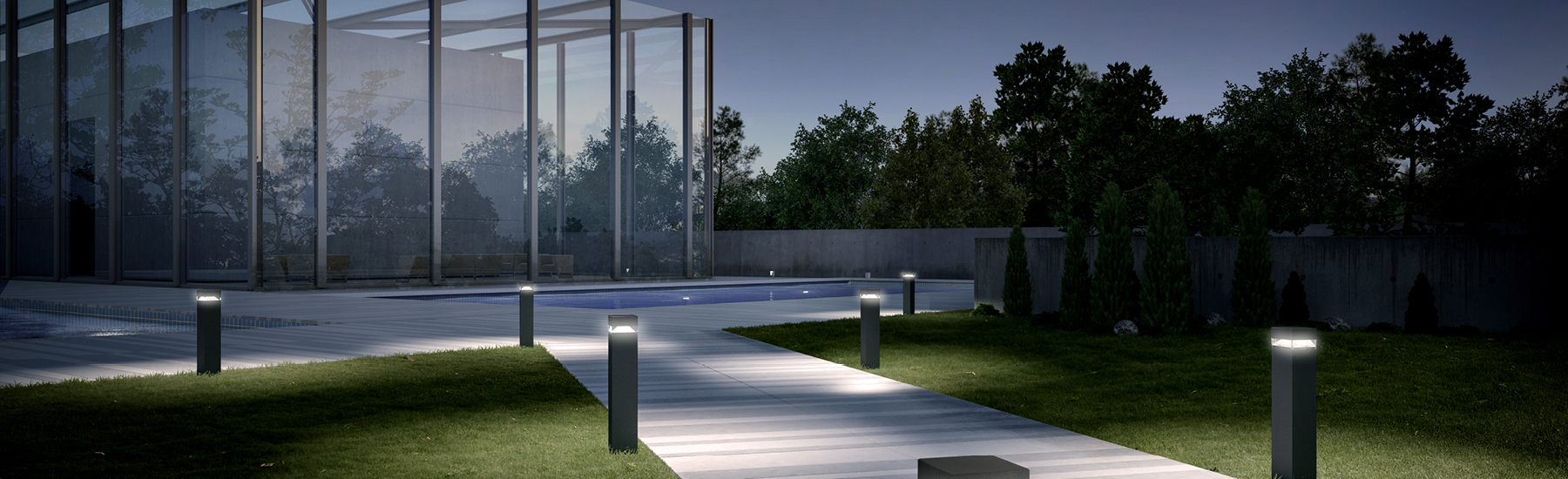

Q Series is a complete solution from your ceilings to facades and hallways, making it the most aesthetically sound design choice for your contemporary projects. Pairing clean architecture with robust technical engineering; the Q series bridges the divide between simplistic beauty and sophisticated performance. Multiple optic decisions give you the ability to tailor your fixtures for the perfect fit whether you want a different degree beam up and a softening lens to provide you with a more diffuse glow; you are the creator of your distinct fixture, every time. Look to the Q Series as a basis for your lighting concept.Q-WALL is a wall-mounted luminaire for outdoor installation with indirect single or double emission options, designed to direct the luminous flux onto the ceiling or the ground to obtain homogeneous lighting throughout the environment, emphasizing the wall on which the luminaire is mounted. Q-LIGHT is indicated for walkways, environmental obstacles, boundaries, decoration, and safety lighting. It is designed for low-consumption LED light sources. Q-CEILING finishes up this rugged product family. From pathway to wall, to ceiling: the Q series is your answer to resilience.
Design coordinated ceiling mount (Q-CEILING), wall mount (Q-WALL) and bollard (Q-LIGHT) series. Fixtures consist of:
  • Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • Copper-free (<1%) extruded aluminum housing and Copper-free (<1%) precision die-cast aluminum ring/faceplate, bracket (WALL versions) and mounting plate.
  • Copper-free (<1%) die-cast aluminum heat-sink passive cooling system.
  • Copper-free (<1%) precision die-cast aluminum housing and top cap.
  • Copper-free (<1%) aluminum extruded post.
  • High-efficiency COB, combined with an optimized passive cooling system, provides a long LED lifespan. Copper-free die-cast aluminum heat-sink passive cooling system. Extra-clear, flat, tempered silk-screened soda-lime glass diffuser (Q-CEILING / Q-WALL). Custom MCPCB utilized to maximize heat dissipation and promote a long LED life. Clear UV-stabilized, high-impact resistant diffuser (Q-LIGHT).
  • Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • Custom molded, anti-aging gasket(s).
  • Stainless steel external hardware.
  • Available in two standard sizes of 8" (Q-WALL MINI) and 19" (Q-WALL).
  • Standard hinged bracket for ease of installation: wiring can be completed by mounting the bracket ahead of the luminaire, then sliding luminaire onto the bracket using quick connectors system, then securing the luminaire by tightening the stainless steel set screws (WALL versions only).
  • Pre-wired factory sealed cable for external electrical connection included.
  • Steel ground base plate included for bollards.
  • Available in 20° x 20°, 40° x 40°, and 85° x 85° beam angles, single (M) and dual (B) light emission (WALL models).
  • Type V overall light distribution (Q-LIGHT).
  • Input voltage: 120-277 V (50 / 60 Hz) for bollard versions and 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • Optional, integral, emergency battery-pack designed for a minimum operation of 90 minutes (EMPK versions).
  • The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • UL Wet location listed. IP65 rated.
  • Product meets Buy American Act (BAA) requirements within ARRA.
  • Consult factory for which version qualifies for the PRONTO-SHIP program. All Rough-Ins are available to ship within 48-72 hrs. Orders must be marked "PRONTO."
  • Photometric data measured according to UNI EN 13032-1/4 and IES LM-79-08
  • Actual performance may differ as a result of the end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications are subject to change without notice.
  • The light distribution complies with the IESNA Full Cut-Off Classification and is eligible for all “Dark Sky” applications when aimed down.
  • 5-year limited warranty. Complete warranty terms located at www.performanceinlighting.com
