Q-LIGHT

IN
Q-LIGHT
Q-LIGHT - 1
Part number 070346
Lampholder: LED
Wattage: 14 W
Finish: AN-96 / IRON GRAY / TEXTURED
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Luminaire lumen output: 1166 lm
L: L90
B: B10
Lifetime: 36000 h
cULus:
Voltage: 120-277V

Description

  • Pathway bollard series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free aluminum extruded post.
  • - Copper-free precision die-cast aluminum housing and top cap.
  • - Clear UV-stabilized, high-impact resistant diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - IESNA Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Steel ground base plate included for bollards.
  • - Anchor bolts available for bollards (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-cataloged CCT (Kelvin) options.
  • - Consult factory for custom post height options.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

Photometric data

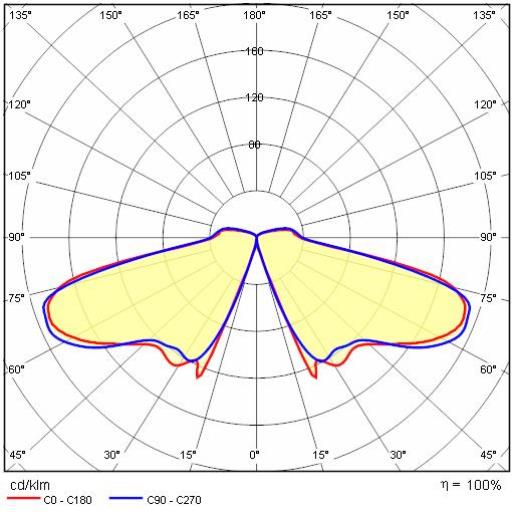

Photometric Lvk Q-LIGHT 1

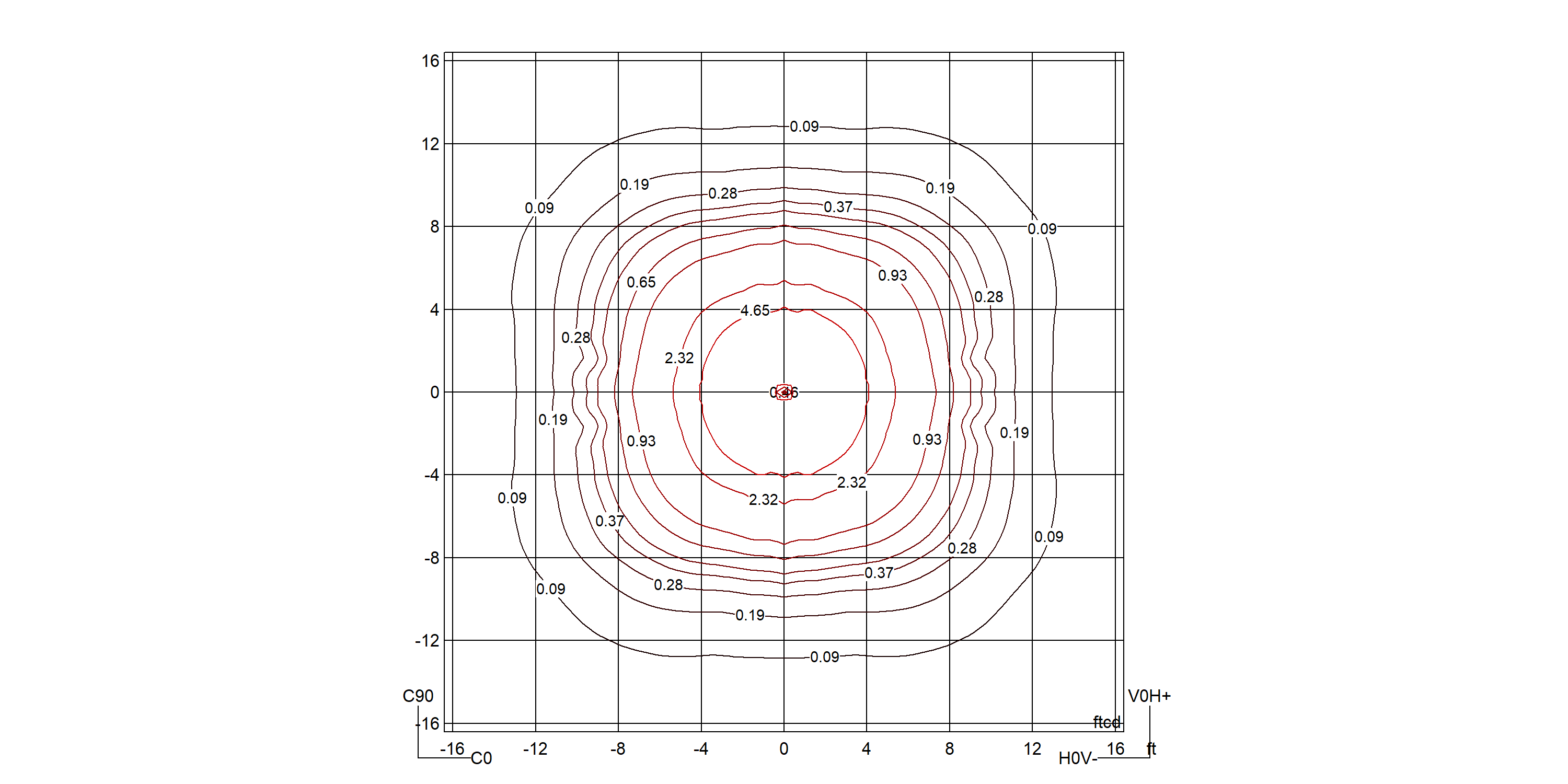

Photometric Lvk Q-LIGHT 2

Technical drawings

Tech Design Q-LIGHT
