SHIELD+ 2 TYPE III

IN
SHIELD+ 2 TYPE III
SHIELD+ 2 TYPE III
SHIELD+ 2 TYPE III
SHIELD+ 2 TYPE III - 1
SHIELD+ 2 TYPE III - 2
SHIELD+ 2 TYPE III - 3
Part number 070444
Lampholder: LED
Wattage: 37/53 W
Finishing: RB-10 / Iron rust / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 4000
Optic: Asymmetric Extra-Wide
IESNA Type: Type III
BUG Rating: B2-U0-G1
Luminaire lumen output [lm]: 6070 lm
L: L80
B: B10
Lifetime: 150000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -20
Max. ambient temperature [°C]: 35

Description

  • Long-lasting energy-efficient wall pack series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and mounting plate.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - Specular vacuum metallized polycarbonate reflector provides full-cutoff, no glare design, and precision optical control.
  • - Type III light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 1-10 V dimming driver (37 W / 53 W versions).
  • - Field settable integral bi-level lumen/wattage packages (37 W / 53 W) proprietary DIP switch driver for SHIELD+ 2 (stating factory setting at the lowest level).
  • - Standard knock-out template for multiple junction box mounting options.
  • - Suitable for three surface mounted conduit entry points with 1/2" NPS plugs.
  • - BUTTON and SWIVEL 120-277 V (50 / 60 Hz) photoelectric switch options available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

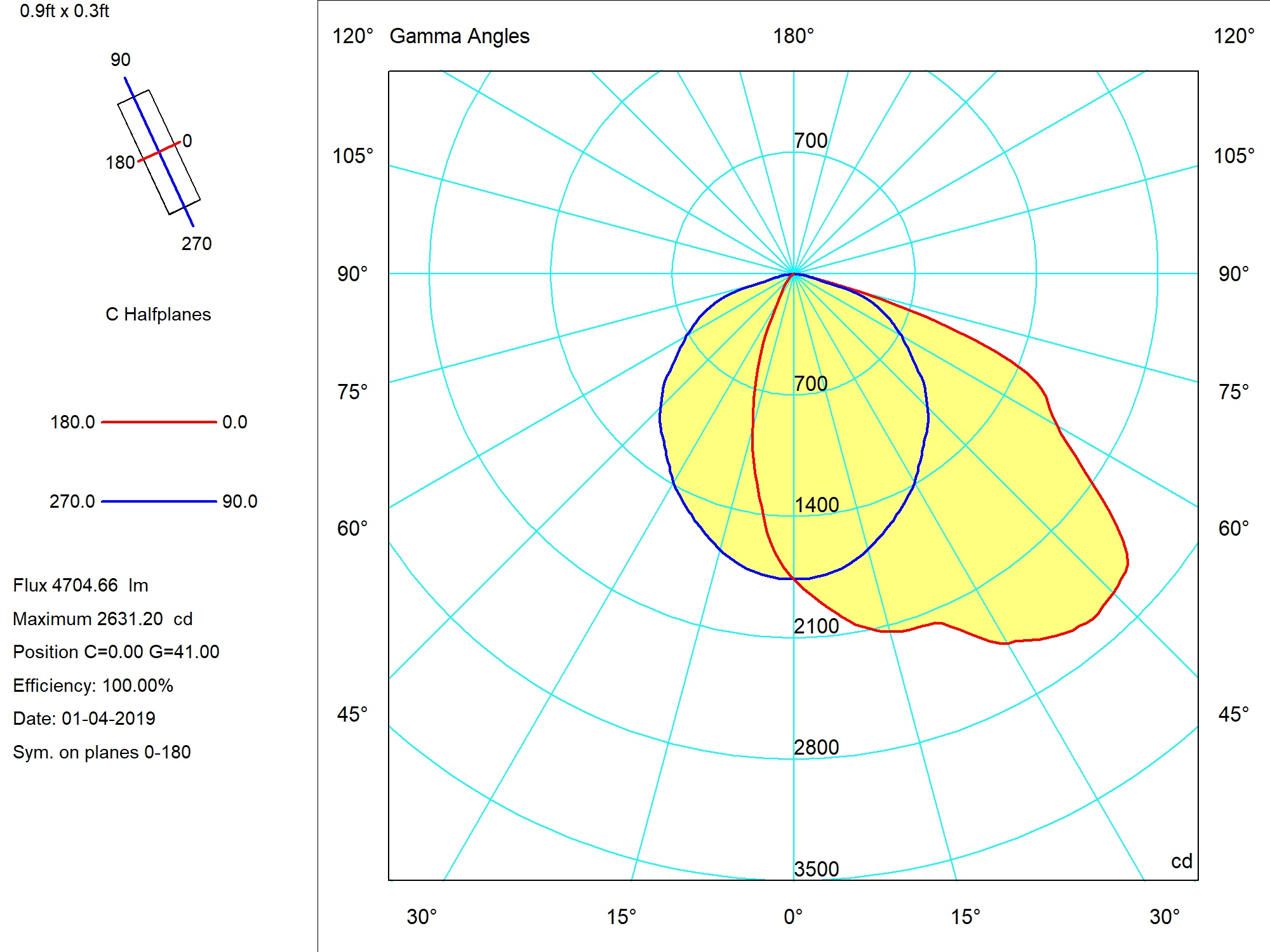

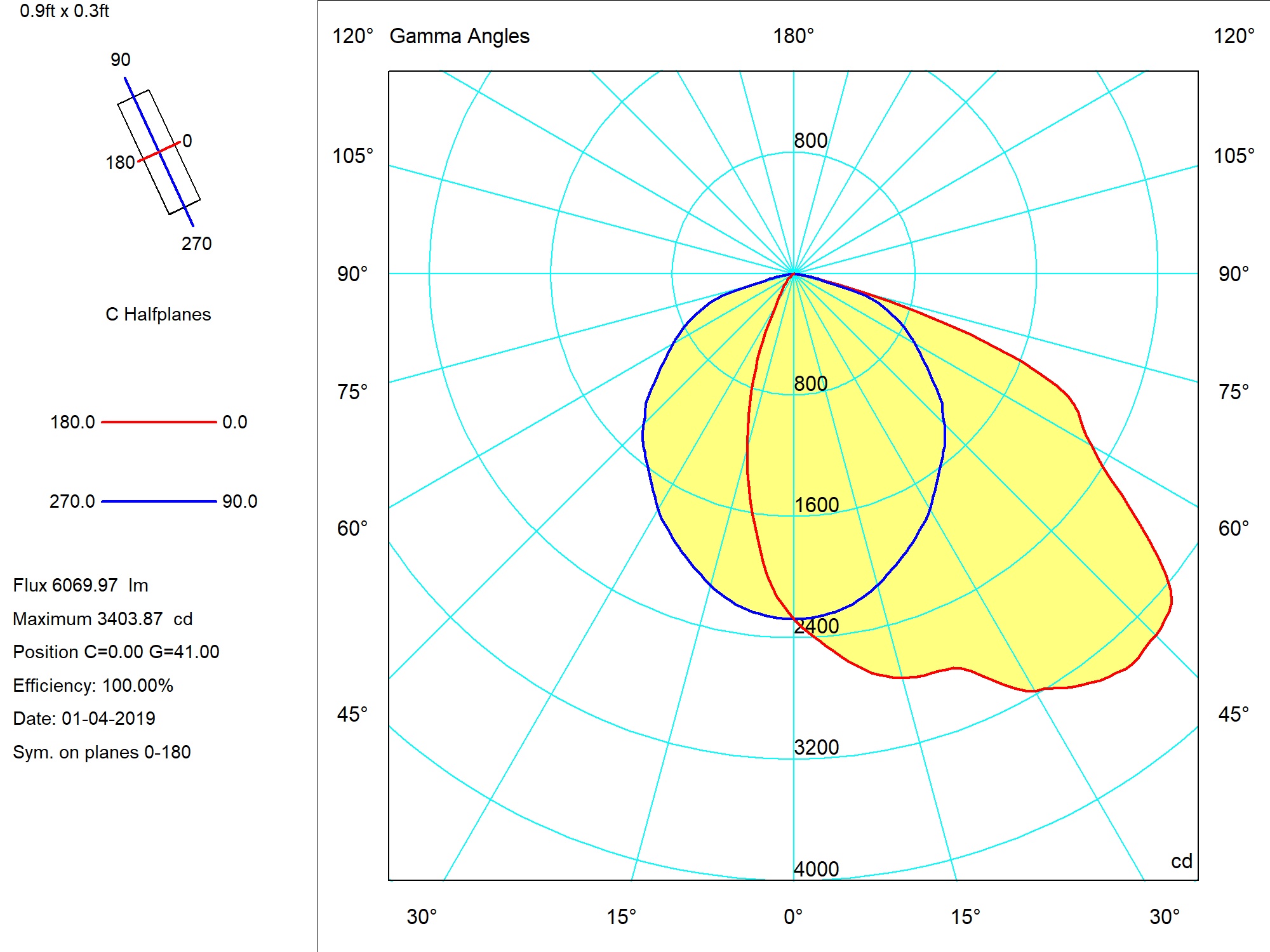

Photometric data

Technical drawings

Tech Design SHIELD+ 2 TYPE III 1++

OPTIONAL ACCESSORIES

SHIELD+ 2

11607
Button-style photoelectric switch (120/277V)
DownloadDownloads

Documentation: SHIELD+ 2 - 11607

11608
Swivel-style photoelectric switch (120/277V)
DownloadDownloads

Documentation: SHIELD+ 2 - 11608
