SHIELD+ 2 TYPE III
SHIELD+ 2 TYPE III - 1
Part number 070448
Lampholder: LED
Wattage: 80 W
Finish: RB-10 / Iron rust / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 4000
Optic: ASYMMETRIC EXTRA WIDE REFLECTOR
Luminaire lumen output: 7985 lm
L: L80
B: B10
Lifetime: 75000 h
cULus:
Voltage: 120-277 V 50/60 Hz

Description

  • Long-lasting energy-efficient wall pack series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and mounting plate.
  • - Extra-clear, flat, tempered silk-screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - Specular vacuum metallized polycarbonate reflector provides full-cutoff, no glare design, and precision optical control.
  • - IESNA Type III light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 1-10 V dimming driver (37 W / 53 W versions).
  • - Field settable integral bi-level lumen/wattage packages (37 W / 53 W) proprietary DIP switch driver for SHIELD+ 2 (stating factory setting at the lowest level).
  • - Standard knock-out template for multiple junction box mounting options.
  • - Suitable for three surface mounted conduit entry points with 1/2" NPS plugs.
  • - BUTTON and SWIVEL photoelectric switch options available (ordered separately).
  • - Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

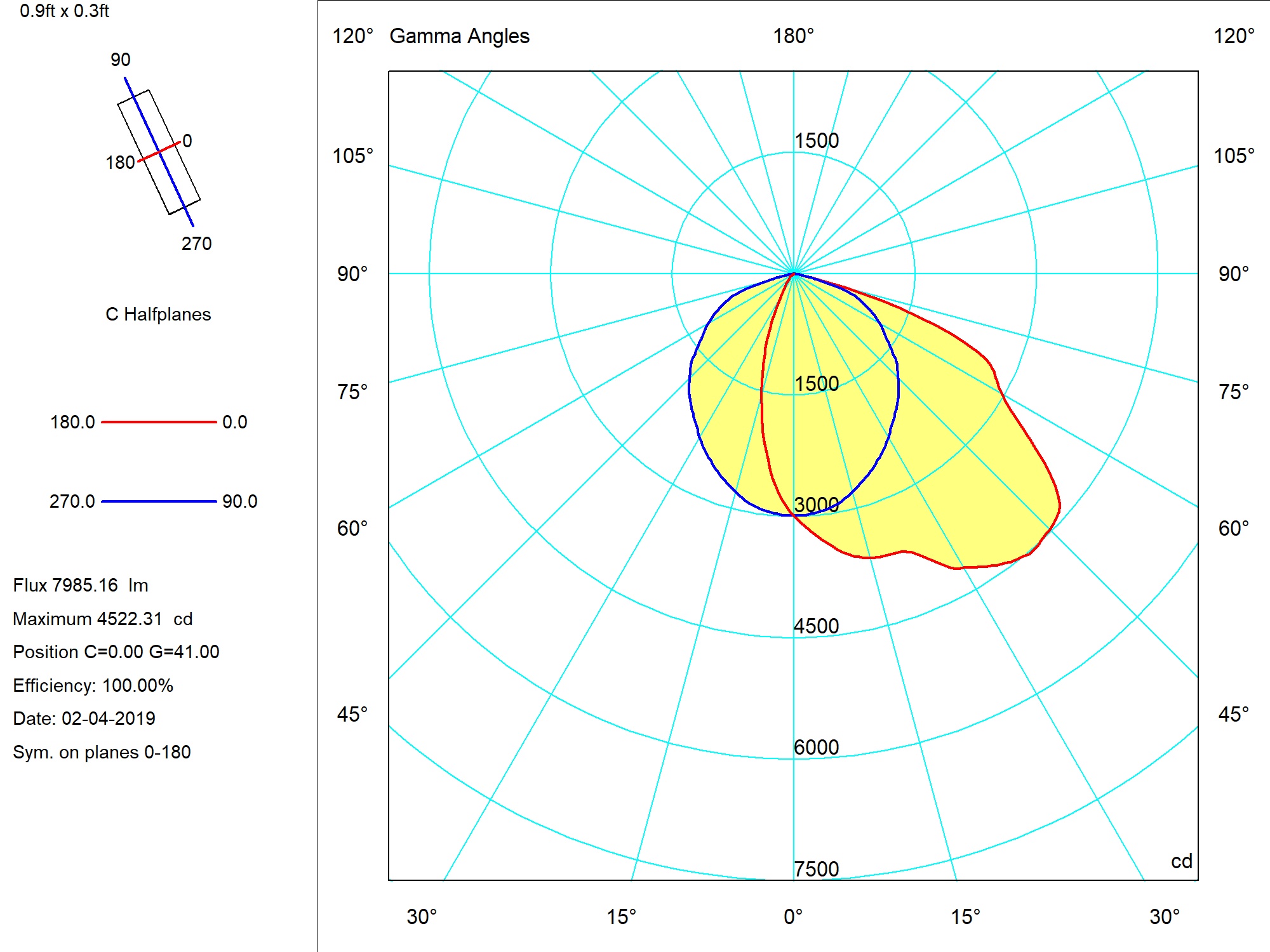

Photometric data

Photometric Lvk SHIELD+ 2 TYPE III 1
Photometric Lvk SHIELD+ 2 TYPE III 2

Technical drawings

Tech Design SHIELD+ 2 TYPE III

OPTIONAL ACCESSORIES

SHIELD+ 2

Photoelectric switch JL-403-C (BUTTON)
11607
Photoelectric switch JL-403-C (BUTTON)
Photoelectric switch JL-404-C (SWIVEL)
11608
Photoelectric switch JL-404-C (SWIVEL)
