SHIELD+ 2 TYPE III

Description

• Long-lasting energy-efficient wall pack series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing and mounting plate.
• - Extra-clear, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
• - Specular vacuum metallized polycarbonate reflector provides full-cutoff, no glare design, and precision optical control.

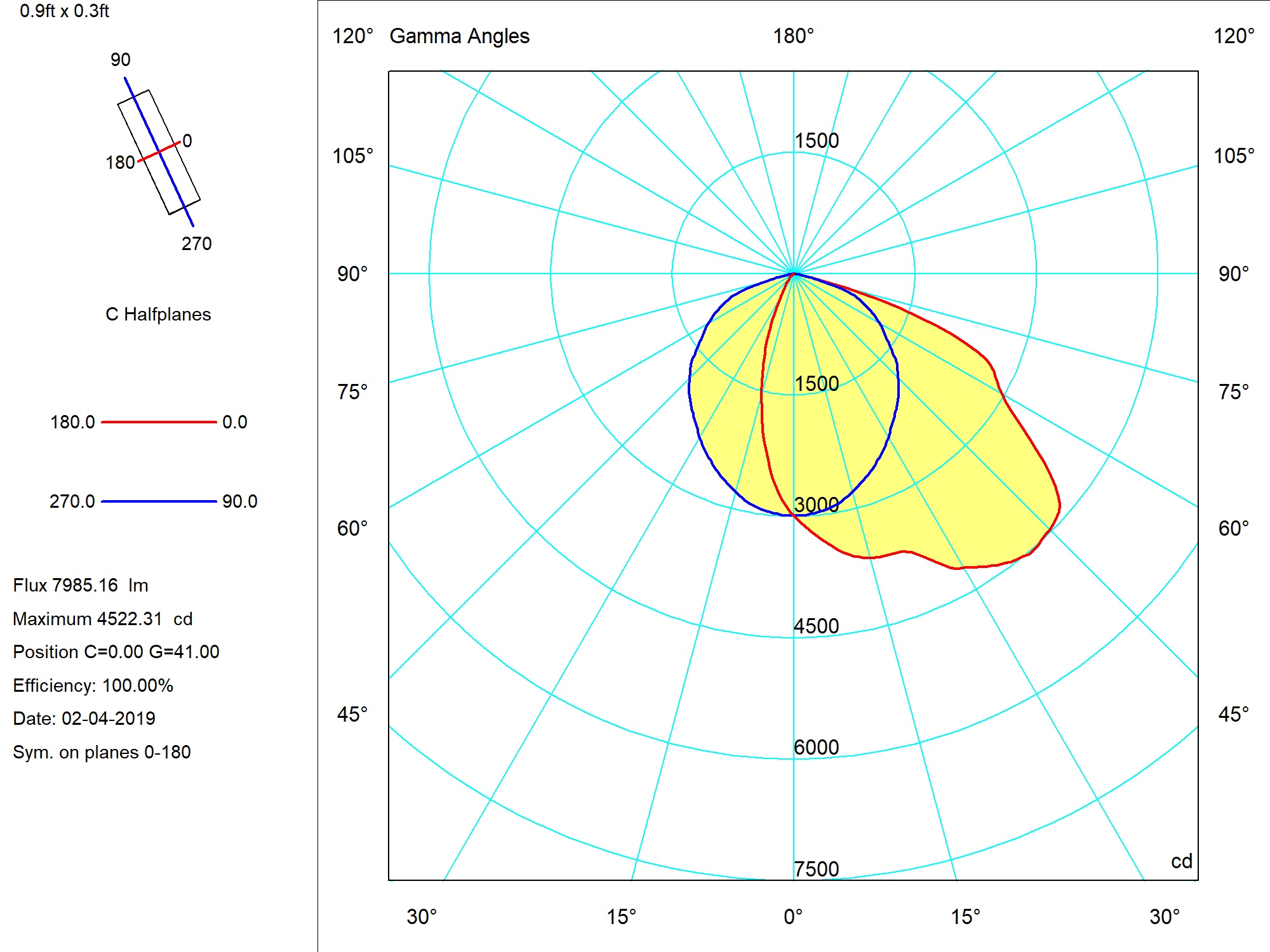

• - Type III light distribution.
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - Input voltage: 120-277 V (50 / 60 Hz), integral 1-10 V dimming driver (37 W / 53 W versions).
• - Field settable integral bi-level lumen/wattage packages (37 W / 53 W) proprietary DIP switch driver for SHIELD+ 2 (stating factory setting at the lowest level).
• - Standard knock-out template for multiple junction box mounting options.
• - Suitable for three surface mounted conduit entry points with 1/2" NPS plugs.
• - BUTTON and SWIVEL 120-277 V (50 / 60 Hz) photoelectric switch options available (ordered separately).
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
