SYSTEMLINE+ 100 TYPE I
SYSTEMLINE+ 100 TYPE I
SYSTEMLINE+ 100 TYPE I - 1
SYSTEMLINE+ 100 TYPE I - 2
Part number 070545
Lampholder: LED
Wattage: 34 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP66
CRI: 70
Kelvin: 4000
Optic: IESNA Type distribution
IESNA Type: Type I
BUG Rating: B2-U0-G1
Luminaire lumen output [lm]: 3770 lm
L: L70
B: B10
Lifetime: 55000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -25
Max. ambient temperature [°C]: 45

Description

  • Area and site lighting series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) aluminum die-cast end-caps, extruded, and anodized housing.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Type I light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Range of accessories, including posts and painted aluminum arms, suitable for a variety of configurations for diverse settings (parks, gardens, pedestrian areas, squares, parking areas, etc.) available (ordered separately).
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

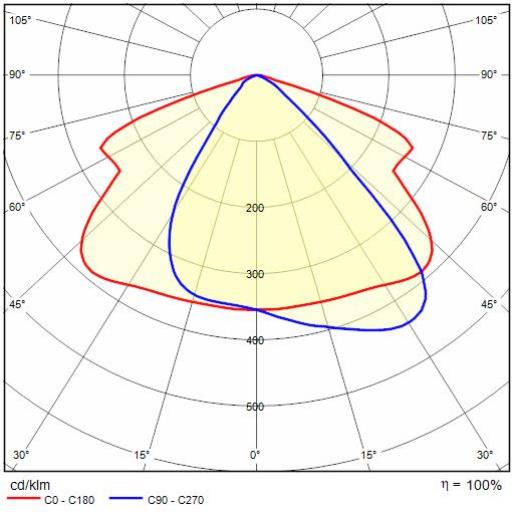

Photometric data

Technical drawings

Tech Design SYSTEMLINE+ 100 TYPE I 1++

REQUIRED FOR INSTALLATION

SYSTEMLINE+ POLE MOUNTED

14099696
Gliding support made of painted aluminium for the installation on Ø 3 9/16" / Ø 90 mm posts
Iron gray
