MIMIK 20 FLAT M

IN

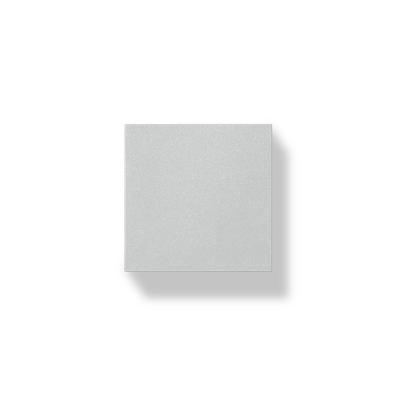

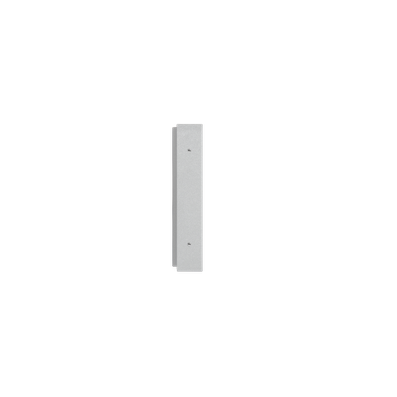

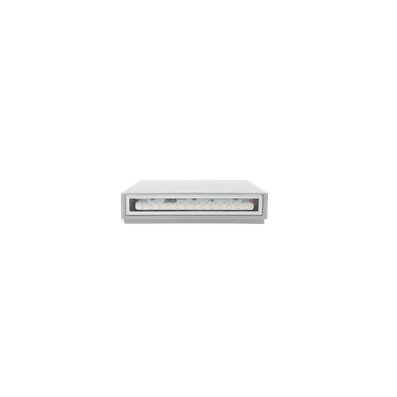

MIMIK 20 FLAT M
MIMIK 20 FLAT M
MIMIK 20 FLAT M
MIMIK 20 FLAT M
MIMIK 20 FLAT M - 1
MIMIK 20 FLAT M - 2
MIMIK 20 FLAT M - 3
MIMIK 20 FLAT M - 4
Part number 071180
Lampholder: LED
Wattage: 13.5 W
Finish: GR-94 / ALUMINUM METALLIC / TEXTURED
Degree of protection: IP 65
CRI: 80
Kelvin: 3000
Luminaire lumen output: 960 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277V

Description

  • Wall- and post- mount series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and mounting plate.
  • - Micro-prismatic patterned, flat, tempered silk screened soda-lime glass diffuser (FLAT versions).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Single (M) or dual (B) light emission.
  • - IESNA Type II light distribution (FLAT).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Customizing facade faceplate cover available for MIMIK FLAT versions (to be ordered separately).
  • - Post accessory available for MIMIK 20 (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-cataloged CCT (Kelvin) options.
  • - Optional clear plexiglas panel can be customized with logos for signage or wayfinding. Consult factory for more information.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

PHOTOMETRIC DATA

Photometric Lvk MIMIK 20 FLAT M 1

TECHNICAL DRAWINGS

Tech Design MIMIK 20 FLAT M

OPTIONAL ACCESSORIES

MIMIK 20 BOLLARD

Bollard h 40"
02401
Bollard h 40"
IRON GRAY

MIMIK 20 LINE BOLLARD

Line Bollard h 40"
02404
Line Bollard h 40"
IRON GRAY

MIMIK 20 FLAT M

FLAT M Customising ring / Facade Accessory
310440
FLAT M Customising ring / Facade Accessory
ALUMINUM METALLIC
