Part number 071431
Lampholder: LED
Wattage: 22 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 70
Kelvin: 3000
IESNA Type: Type V
BUG Rating: B1-U1-G0
Luminaire lumen output (lm): 1378 lm
L: L90
Lifetime: 60000 h
cULus:
Voltage: 120/277 V

Description

  • Pathway bollard series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and top cap.
  • - Copper-free aluminum extruded post.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - The "Secure Light Distribution" system can bypass individual diodes in the event of a single LED failure to ensure continuous uniform light distribution.
  • - Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Anchor bolts available for bollards (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

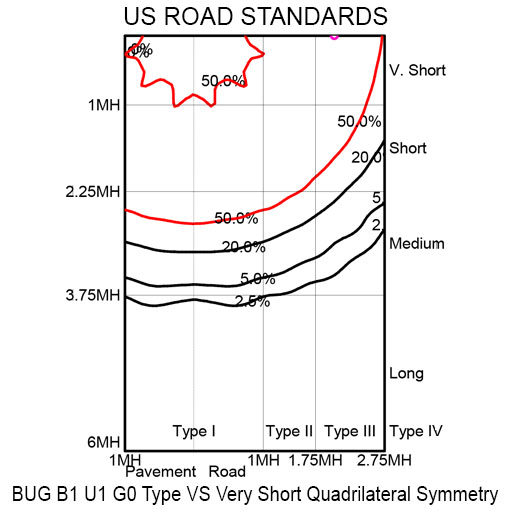

Photometric data

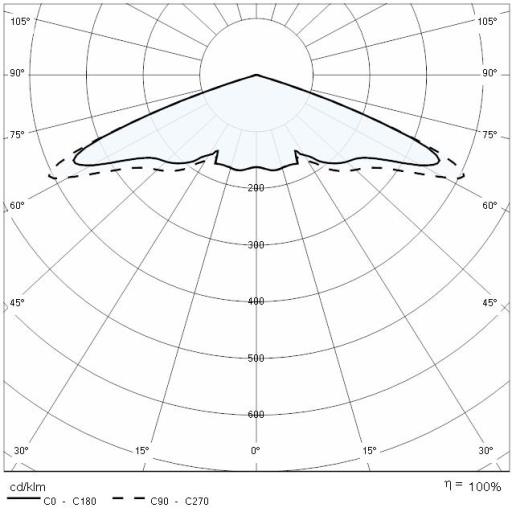

Photometric Lvk SPILLO MINI 1
Photometric Lvk SPILLO MINI 2
Photometric Lvk SPILLO MINI 3

Technical drawings

Tech Design SPILLO MINI

OPTIONAL ACCESSORIES

SPILLO

Fixing plate Spillo Mini
9395
Fixing plate Spillo Mini
