Home
Products: MIMIK 20
MIMIK 20 M TYPE II (071606)
MIMIK 20 M TYPE II
Part number
071606
Lampholder:
LED
Wattage:
15 W
Finish:
AN-96 / Iron gray / Textured
Degree of protection:
IP65
CRI:
70
Kelvin:
3000
Luminaire lumen output:
1385 lm
L:
L80
B:
B10
Lifetime:
60000 h
cULus:
Voltage:
120-277 V
Description
Wall- and post- mount series. Fixtures consist of:
- Multi-step powder-coat painting process, optimized against UV rays and corrosion.
- Copper-free precision die-cast aluminum housing and mounting plate.
- Extra-clear, tempered, silk-screened, flat glass diffuser.
- Custom molded, anti-aging gasket(s).
- Stainless steel external hardware.
- Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
- High-transmittance transparent optics.
- IESNA Type II light distribution.
- Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
- Optional, integral, emergency battery-pack designed for a minimum operation of 90 minutes (EMPK versions).
- Customizing facade faceplate available for various versions (ordered separately).
- Post accessory available for MIMIK 20 (ordered separately).
- Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
- Optional clear plexiglass panel can be customized with logos for signage or wayfinding (LINE BOLLARD). Consult factory for more information.
- Product meets Buy American Act requirements within ARRA.
- 5-year warranty.

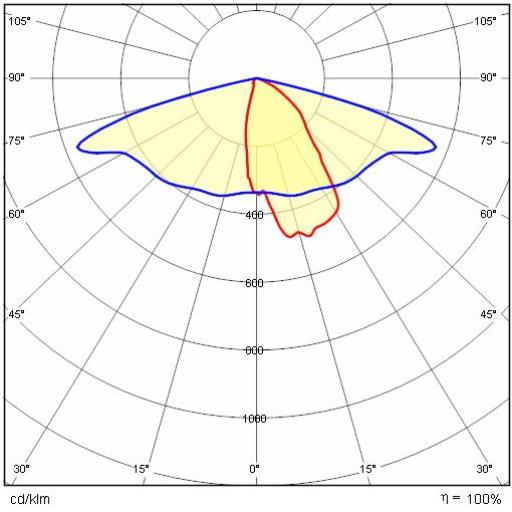

Photometric data
Technical drawings
OPTIONAL ACCESSORIES
MIMIK 20 BOLLARD
Select
Uncheck
02401
Bollard h 40"
Iron gray
MIMIK 20 LINE BOLLARD
Select
Uncheck
02404
Line Bollard h 40"
Iron gray
MIMIK 20 M TYPE II - TYPE III - TYPE V
Select
Uncheck
310445
Customising ring / Facade Accessory
Iron gray
