PADO 38"

PADO 38"
PADO 38"
PADO 38"

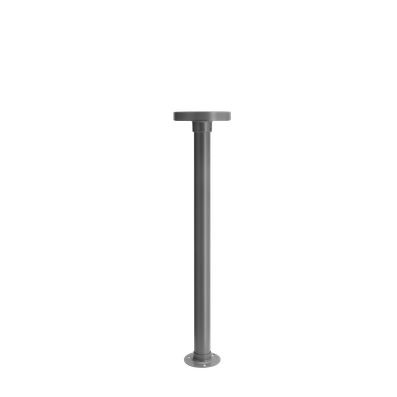

PADO 38" - 1

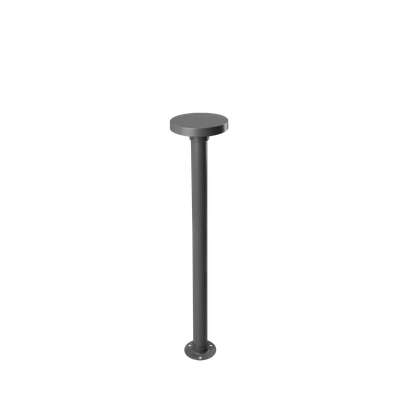

PADO 38" - 2
PADO 38" - 3
Part number 071641
Lampholder: LED
Wattage: 20 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Optic: Circular Extra-Wide
Luminaire lumen output [lm]: 1079 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 45

Description

  • Pathway bollard series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and top cap.
  • - Copper-free (<1%) aluminum extruded post.
  • - Frosted, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
  • - 5-year warranty.

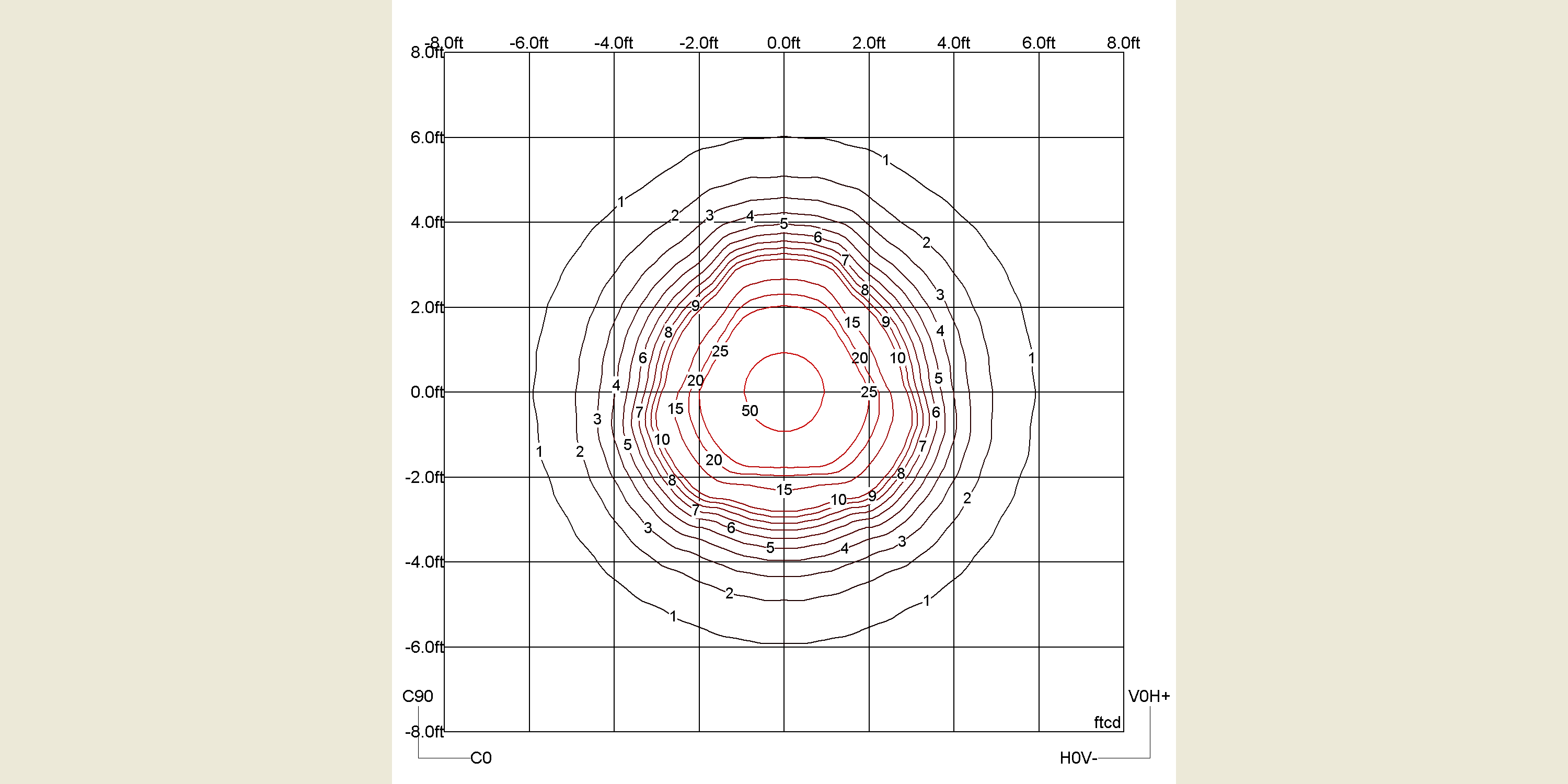

Photometric data

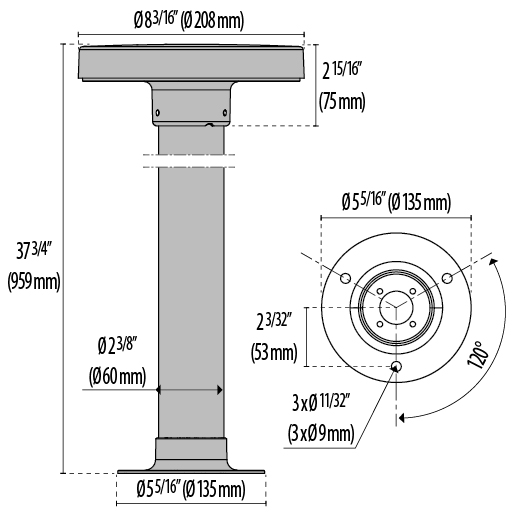

Technical drawings

Tech Design PADO 38" 1++
