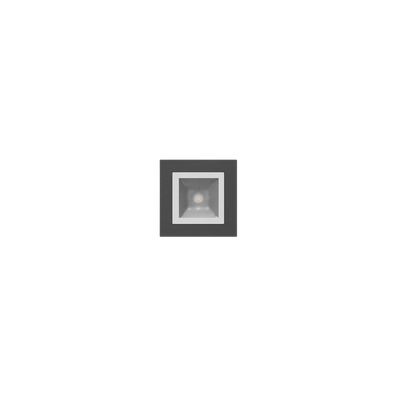

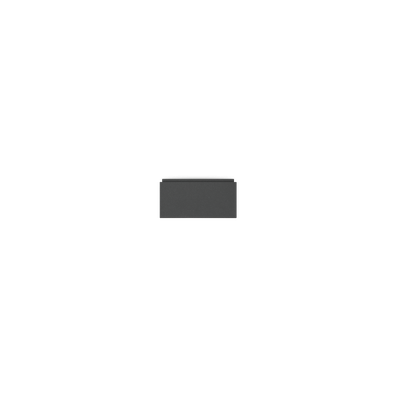

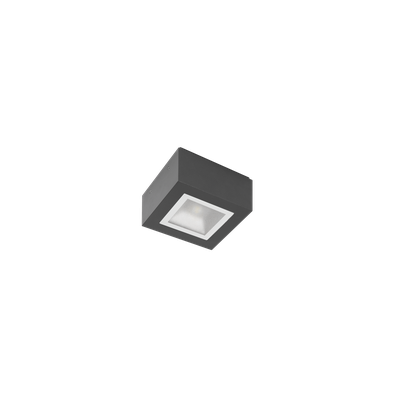

MIMIK 10 CEILING TECH
MIMIK 10 CEILING TECH
MIMIK 10 CEILING TECH
MIMIK 10 CEILING TECH
MIMIK 10 CEILING TECH - 1
MIMIK 10 CEILING TECH - 2
MIMIK 10 CEILING TECH - 3
MIMIK 10 CEILING TECH - 4
Part number 071769
Lampholder: LED
Wattage: 10 W
Finish: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 70
Kelvin: 4000
Luminaire lumen output: 806 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277 V

Description

  • Ceiling mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and mounting plate.
  • - Micro-prismatic patterned, tempered, silk-screened, flat glass diffuser (TECH versions).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - 100° x 100° beam angle (TECH).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Five optional finishes available. Add finish suffix to any part number for textured Black (BK-81), Iron gray (AN-96), Aluminum metallic (GR-94), White (WH-87), Iron rust (RB-10) when not standard.
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

Photometric data

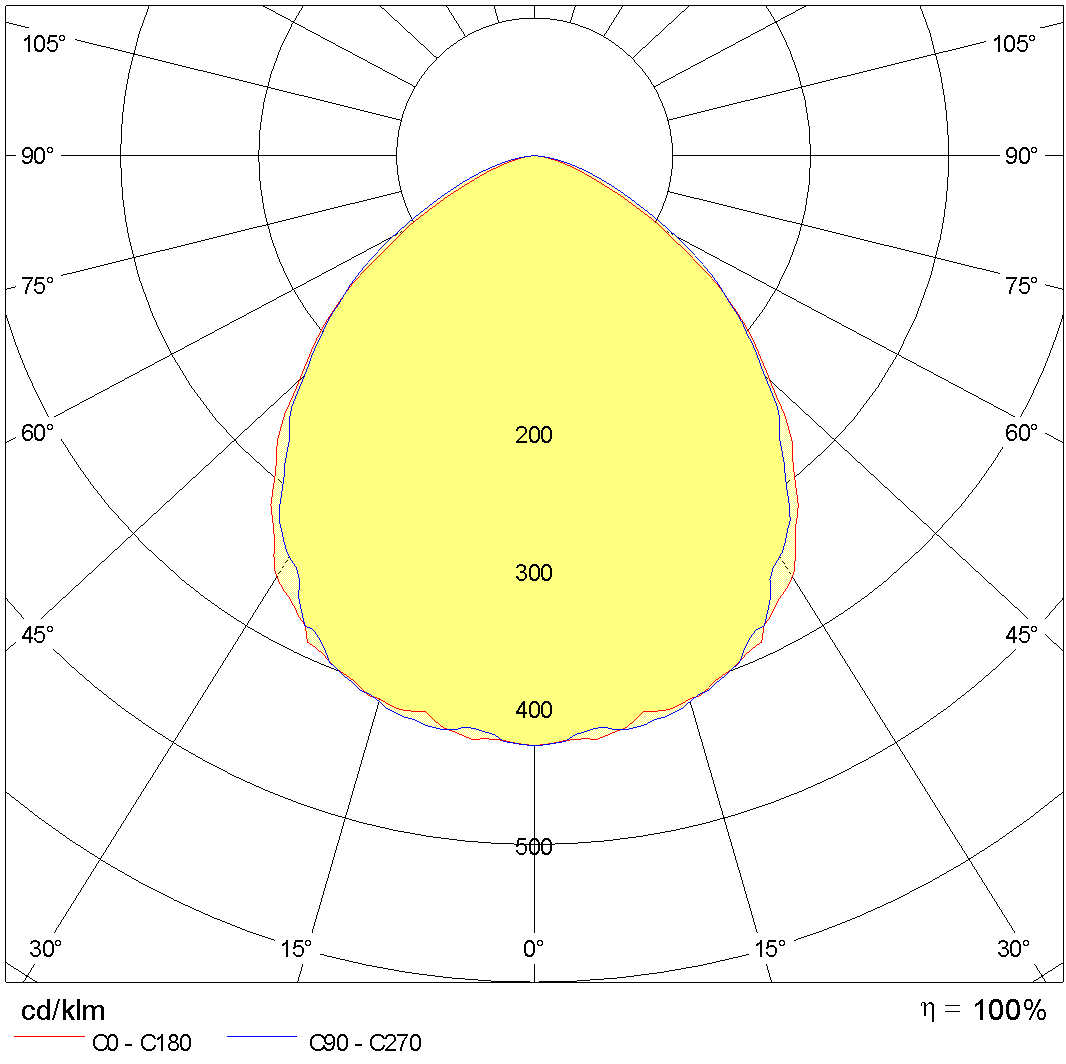

Photometric Lvk MIMIK 10 CEILING TECH 1
Photometric Lvk MIMIK 10 CEILING TECH 2

Technical drawings

Tech Design MIMIK 10 CEILING TECH
