MIMIK 10 BOLLARD 600 SENSOR

IN
MIMIK 10 BOLLARD 600 SENSOR
MIMIK 10 BOLLARD 600 SENSOR
MIMIK 10 BOLLARD 600 SENSOR
MIMIK 10 BOLLARD 600 SENSOR - 1
MIMIK 10 BOLLARD 600 SENSOR - 2
MIMIK 10 BOLLARD 600 SENSOR - 3
Part number 071824
Lampholder: LED
Wattage: 11 W
Finish: AN-96 / IRON GRAY / TEXTURED
Degree of protection: IP 65
CRI: 70
Kelvin: 4000
Optic: ASYMMETRIC INTENSIVE REFLECTOR
Luminaire lumen output: 915 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277V

Description

  • Pathway bollard series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and trim.
  • - Copper-free aluminum extruded post.
  • - Extra-clear, flat, tempered silk screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - IESNA Type II light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Integral, line-voltage, passive infrared motion sensor (PIR SENSOR versions).
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Steel ground base plate included for bollards.
  • - Optional surface mounted GFCI receptacle. Consult factory for more information.
  • - Consult factory for dimming options, custom finishes and non-cataloged CCT (Kelvin) options.
  • - Consult factory for custom post height options.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

PHOTOMETRIC DATA

Photometric Lvk MIMIK 10 BOLLARD 600 SENSOR 1
Photometric Lvk MIMIK 10 BOLLARD 600 SENSOR 2

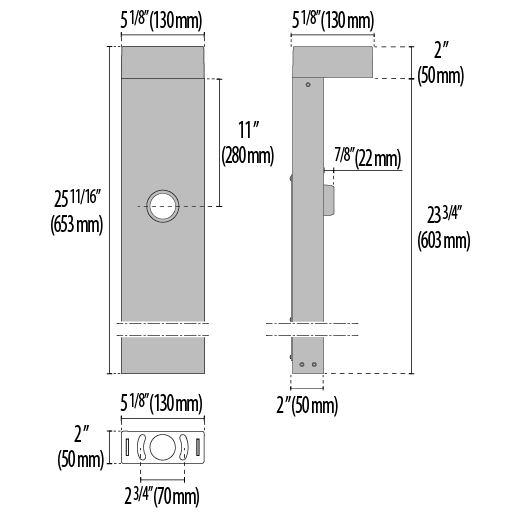

TECHNICAL DRAWINGS

Tech Design MIMIK 10 BOLLARD 600 SENSOR
