Part number 071983
Lampholder: LED
Wattage: 29 W
Finishing: GR-94 / Aluminum metallic / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 3000
Optic: Asymmetric Wide
IESNA Type: Type III
Luminaire lumen output [lm]: 1502 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 35

Description

  • Recessed wall steplight series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and ring/faceplate.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Frosted, tempered, flat glass diffuser.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Type III light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Stainless steel recessed rough-in kit to be ordered separately.
  • - Suitable for concrete or hollow wall applications.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

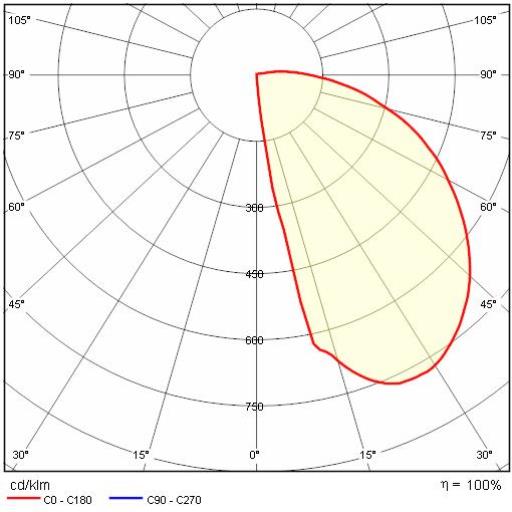

Photometric data

Technical drawings

Tech Design INSERT+3 1++

REQUIRED FOR INSTALLATION

INSERT+3

3100883
Rough-In kit INSERT+3
Stainless steel
DownloadDownloads

Documentation: INSERT+3 - 3100883
