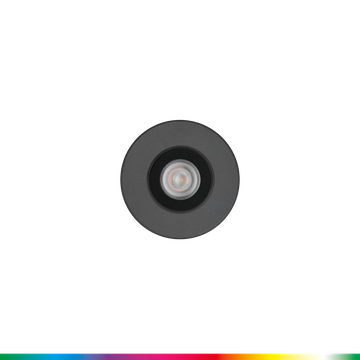

CRICKET+ 10 RGBW C/M

IN
CRICKET+ 10 RGBW C/M
CRICKET+ 10 RGBW C/M

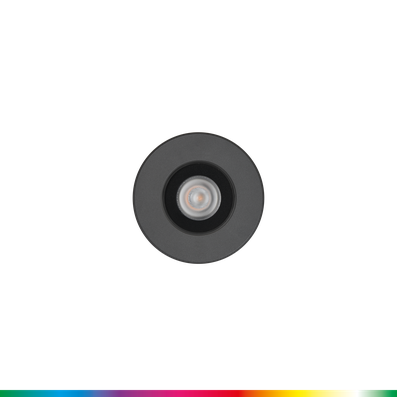

CRICKET+ 10 RGBW C/M - 1

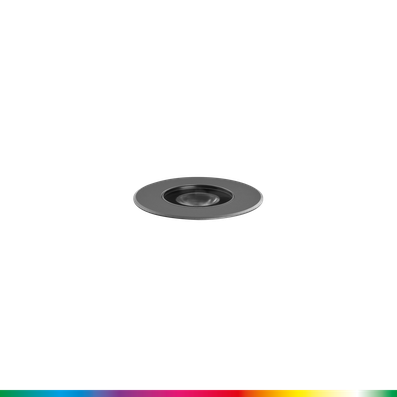

CRICKET+ 10 RGBW C/M - 2
Part number 073069
Lampholder: LED
Wattage: 3.5 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP67
CRI: 80
Kelvin: RGBW 4000
Optic: Circular Medium
Beam angle: 30°
BUG Rating: B1-U0-G0
Luminaire lumen output [lm]: 100 lm
L: L80
B: B10
Lifetime: 50000 h
cULus:
Min. ambient temperature [°C]: -20
Max. ambient temperature [°C]: 30

Description

  • In-ground series. Fixtures consist of:
  • - Copper-free (<1%) die-cast corrosion-resistant aluminum housing and trim.
  • - Copper-free (<1%) die-cast corrosion-resistant aluminum housing.
  • - AISI 316 stainless steel trim.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Circular Medium optics (C/M).
  • - RGBW (4000K) color mixing for high emotional impact scenographic effects.
  • - Input voltage: 48 V DC, separate driver for RGBW color mixing and/or dynamic Tunable White versions (ordered separately).
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - Thermoplastic compression-molded rough-in kit to be ordered separately.
  • - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

Photometric data

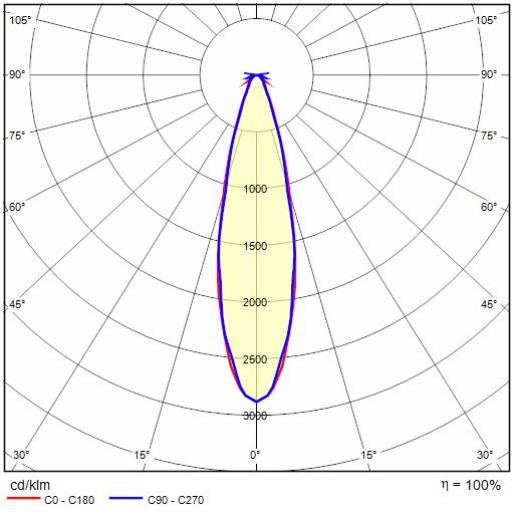

Photometric Lvk CRICKET+ 10 RGBW C/M 1

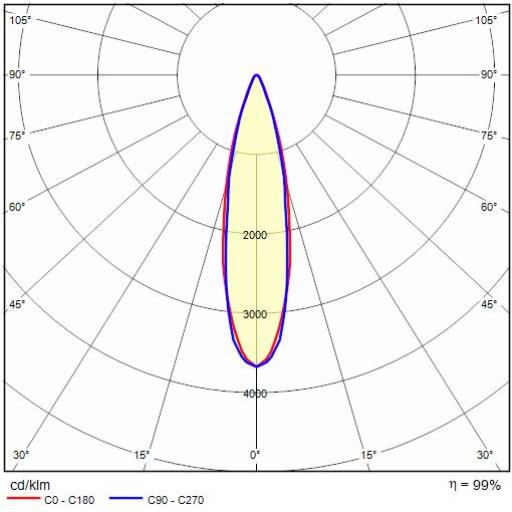

Photometric Lvk CRICKET+ 10 RGBW C/M 2

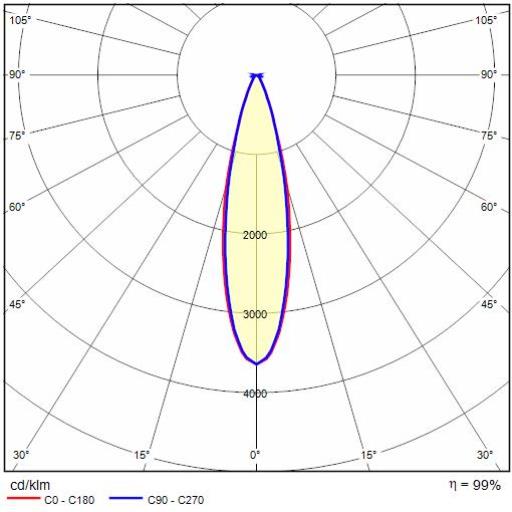

Photometric Lvk CRICKET+ 10 RGBW C/M 3

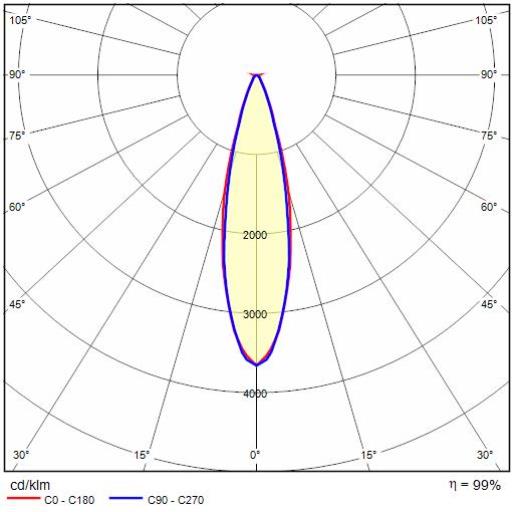

Photometric Lvk CRICKET+ 10 RGBW C/M 4

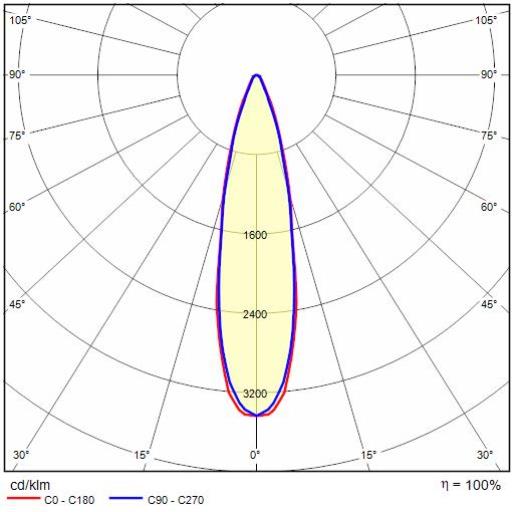

Photometric Lvk CRICKET+ 10 RGBW C/M 5

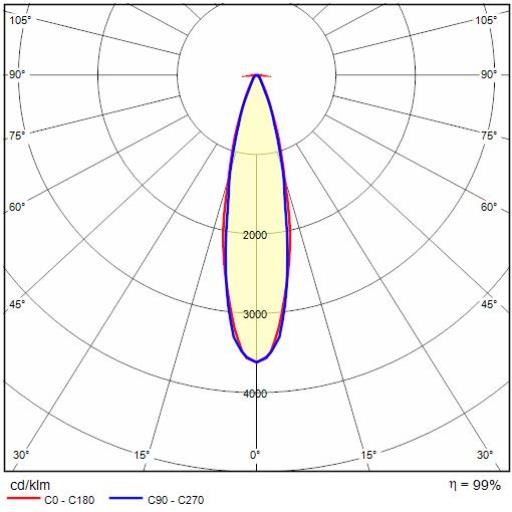

Photometric Lvk CRICKET+ 10 RGBW C/M 6

Technical drawings

Tech Design CRICKET+ 10 RGBW C/M

REQUIRED FOR INSTALLATION

Recessed box RGBW

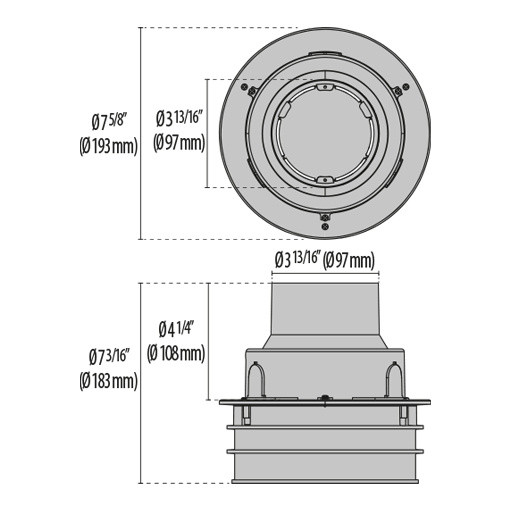

Rough-in Kit CRICKET+ 10 RGBW/TW
3113571
Rough-in Kit CRICKET+ 10 RGBW/TW

OPTIONAL ACCESSORIES

CRICKET+ 10

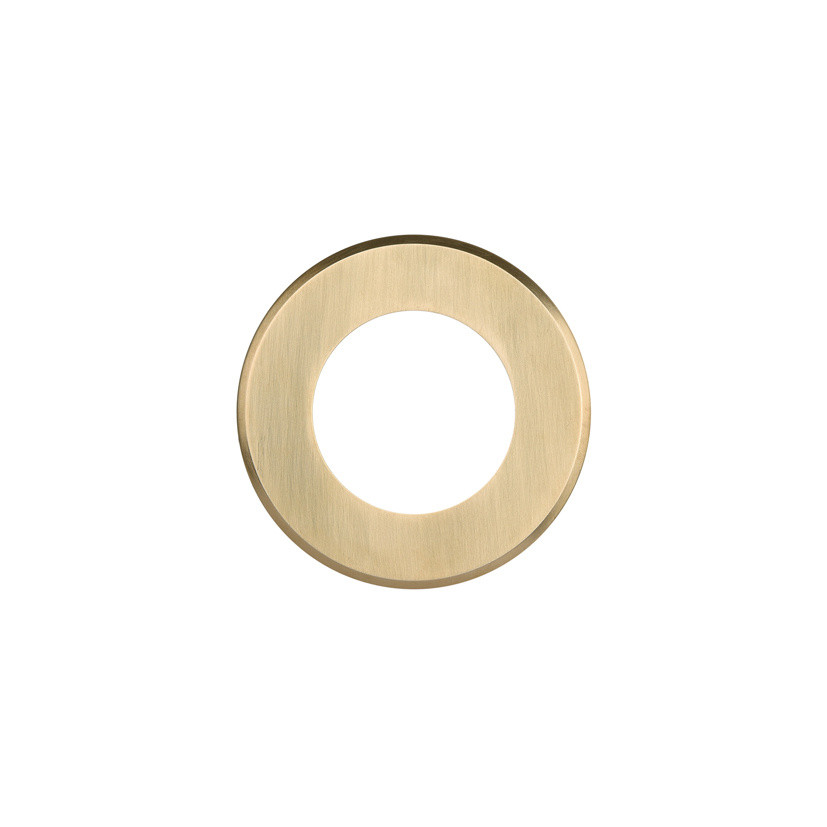

Brass trim ring
3114130
Brass trim ring
Natural brass
