ALU TECH RO

IN
ALU TECH RO
ALU TECH RO

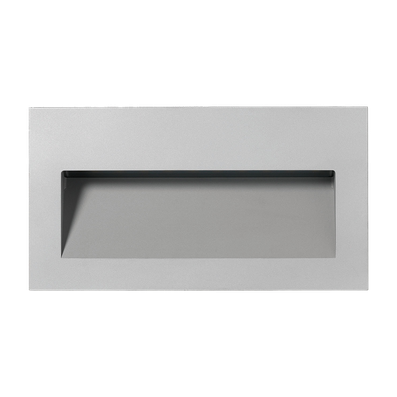

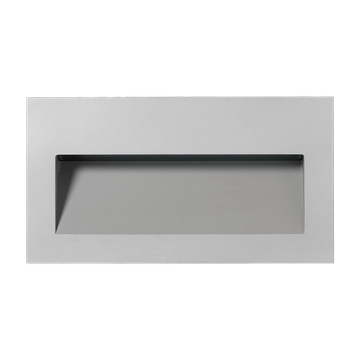

ALU TECH RO - 1
ALU TECH RO - 2
Part number 074684
Lampholder: LED
Wattage: 11 W
Finishing: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP66
CRI: 85
Kelvin: 3000
Optic: Asymmetric Wide
Luminaire lumen output [lm]: 396 lm
Lifetime: 35000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 35

Description

  • Recessed wall steplight series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision machined anodized aluminum housing and optical compartment.
  • - Frosted, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Type III light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Stainless steel grounding tether included.
  • - Stainless steel recessed rough-in kit to be ordered separately.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

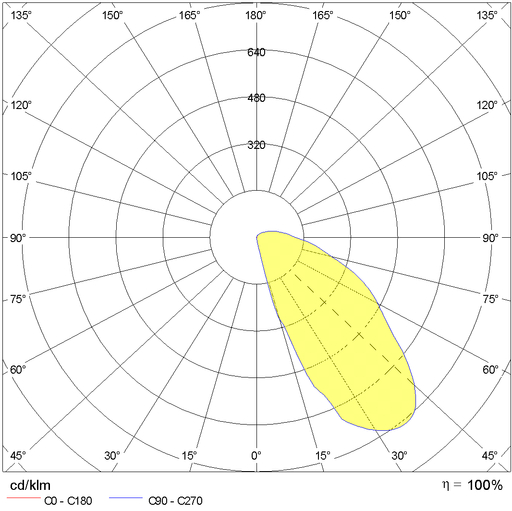

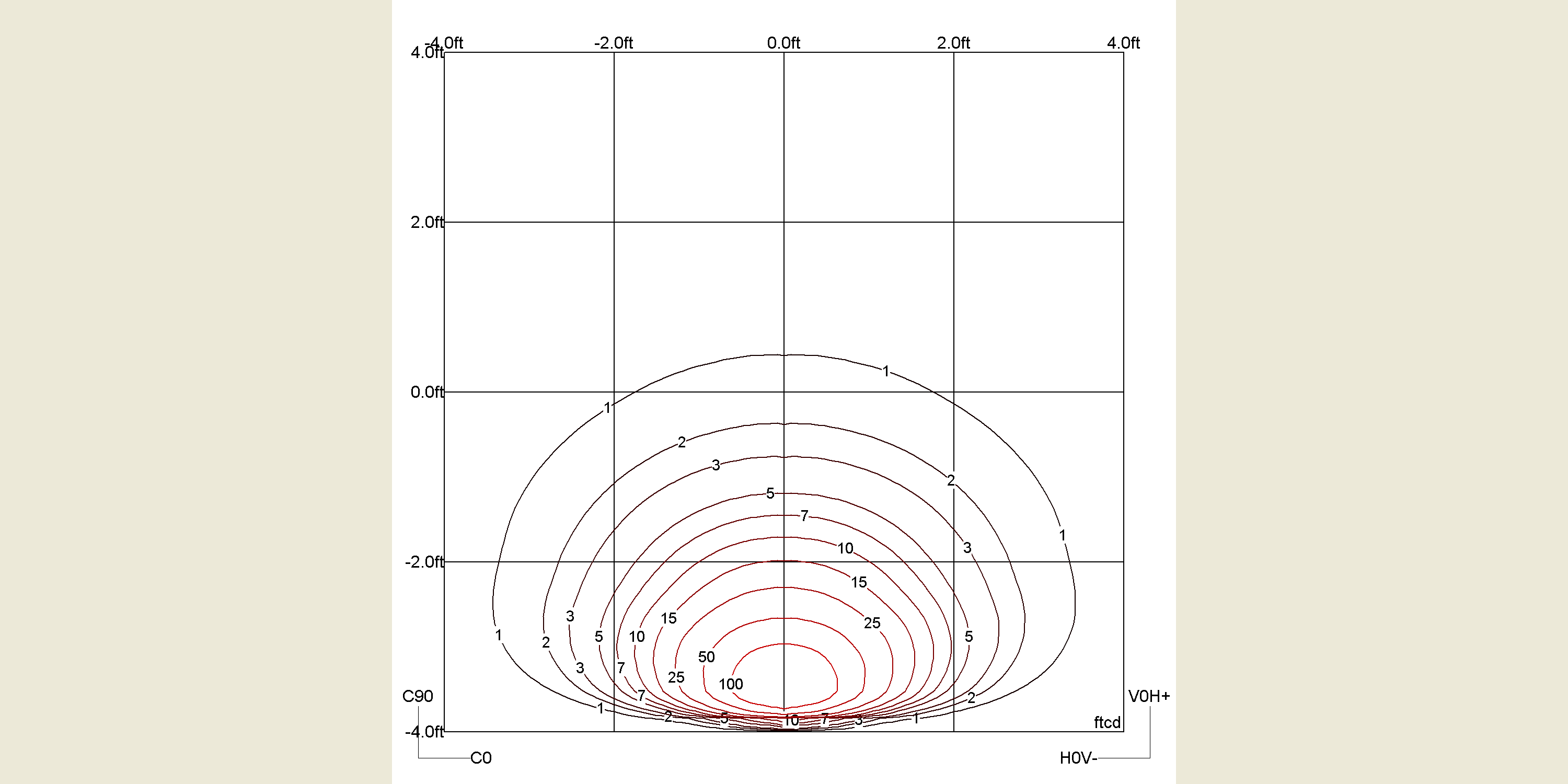

Photometric data

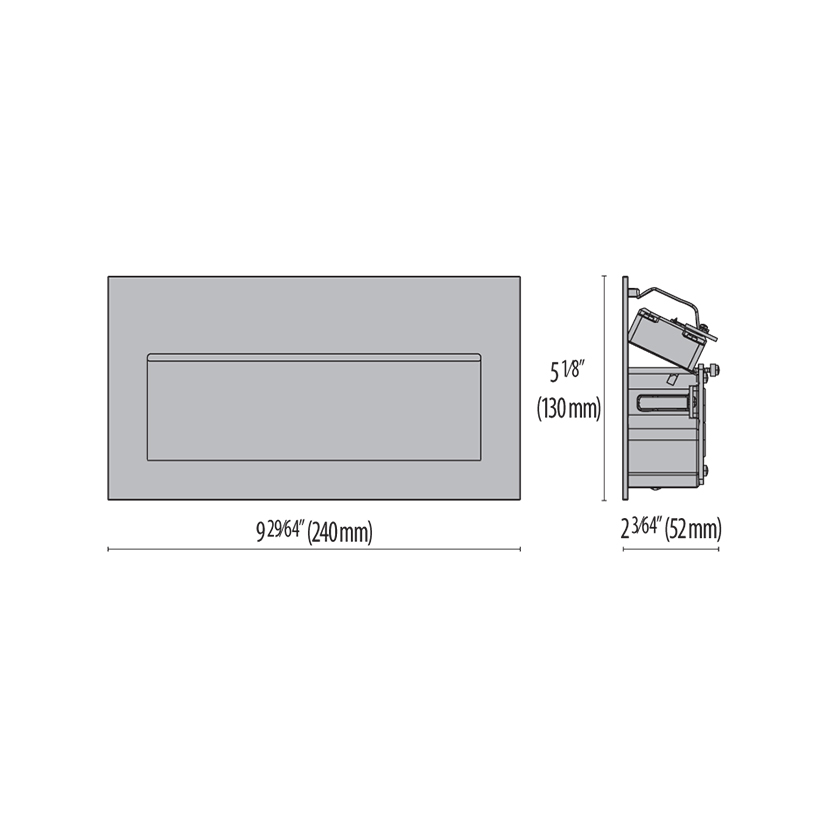

Technical drawings

Tech Design ALU TECH RO 1++

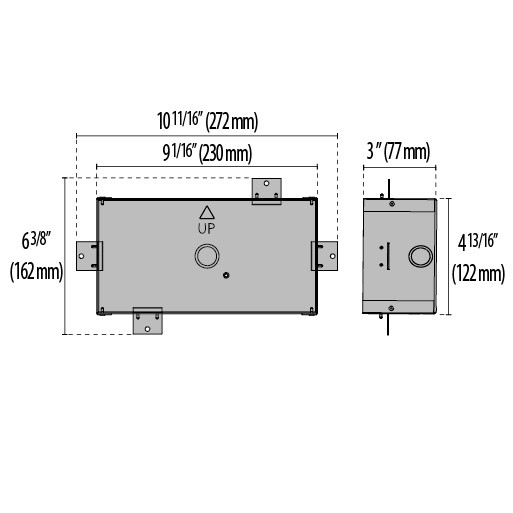

REQUIRED FOR INSTALLATION

ALU TECH RO

310409
Recessed Alu RO
DownloadDownloads

Documentation: ALU TECH RO - 310409
