STEEL SQUARE 28 - 12 LED ELL 10°X45°

IN
STEEL SQUARE 28 - 12 LED ELL 10°X45°
STEEL SQUARE 28 - 12 LED ELL 10°X45° - 1
Part number 075480
Lampholder: LED
Wattage: 15.3 W
Finishing: INOX / Stainless steel / Matt
Degree of protection: IP67
CRI: 80
Kelvin: 6000
Optic: Elliptical optics
Beam angle: 10°x45°
Luminaire lumen output (lm): 756 lm
Lifetime: 60000 h
cULus:
Voltage: 120/277 V

Description

  • In-ground series. Fixtures consist of:
  • - Copper-free die-cast aluminum housing and die-cast corrosion-resistant AISI 316 stainless steel trim.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Standard aimable optic system (±7°).
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Elliptical optics (ELL).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - Thermoplastic compression-molded rough-in kit to be ordered separately.
  • - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

Photometric data

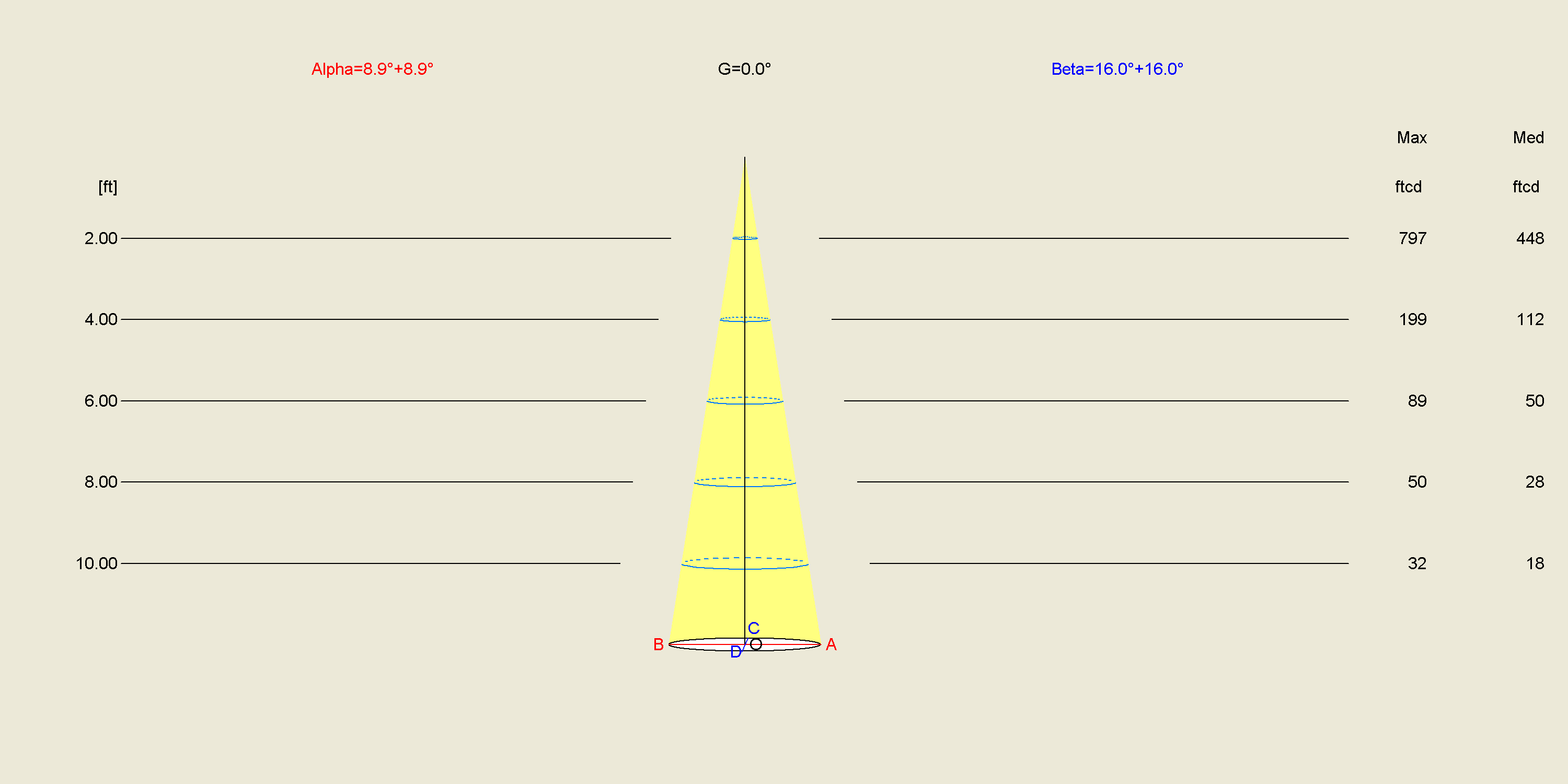

Photometric Lvk STEEL SQUARE 28 - 12 LED ELL 10°X45° 1

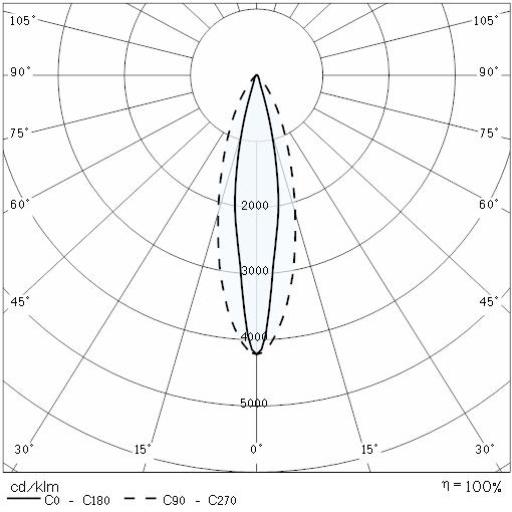

Photometric Lvk STEEL SQUARE 28 - 12 LED ELL 10°X45° 2

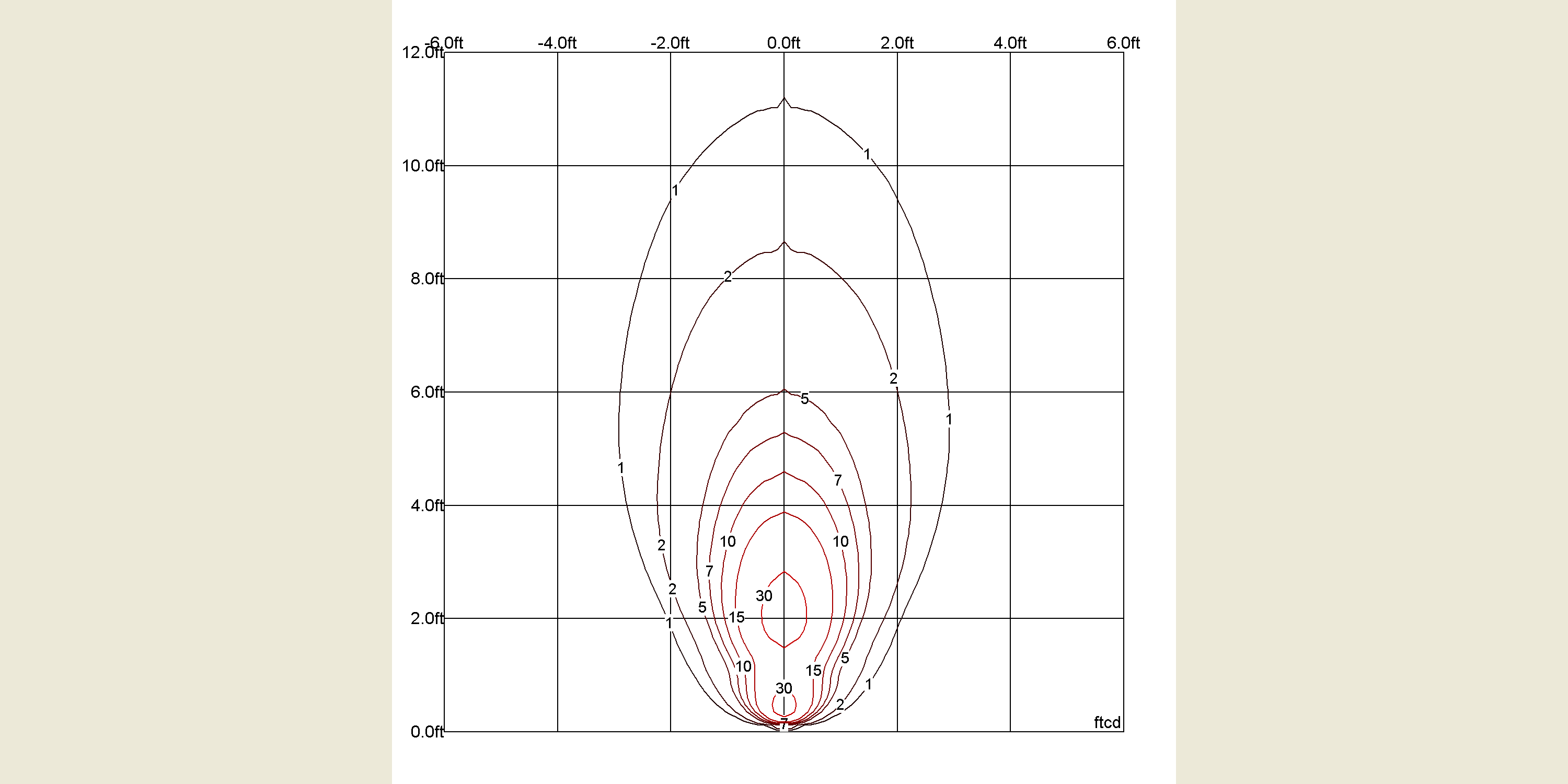

Photometric Lvk STEEL SQUARE 28 - 12 LED ELL 10°X45° 3

Technical drawings

Tech Design STEEL SQUARE 28 - 12 LED ELL 10°X45°

REQUIRED FOR INSTALLATION

STEEL SQUARE 28

Recessed Rough-in kit
310374
Recessed Rough-in kit
