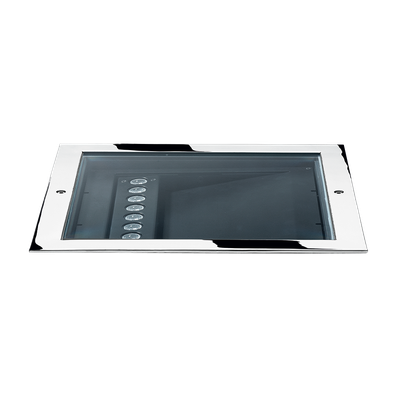

STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45

Description

• In-ground series. Fixtures consist of:
• - Copper-free (<1%) die-cast aluminum housing and die-cast corrosion-resistant AISI 316 stainless steel trim.
• - Extra-clear, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.
• - Standard aimable optic system (±7°).
• - Elliptical optics (ELL).
• - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
• - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
• - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
• - Thermoplastic compression-molded rough-in kit to be ordered separately.
• - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
• - 5-year warranty.
