STEEL ROUND COMPACT LED I 8°

IN

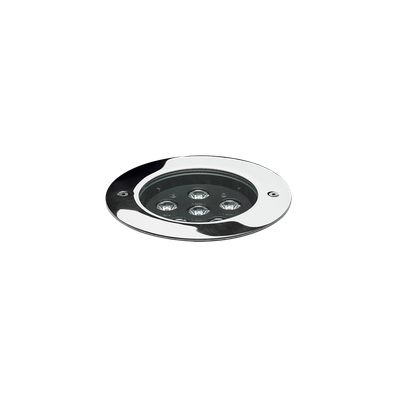

STEEL ROUND COMPACT LED I 8°
STEEL ROUND COMPACT LED I 8°
STEEL ROUND COMPACT LED I 8°
STEEL ROUND COMPACT LED I 8° - 1
STEEL ROUND COMPACT LED I 8° - 2
STEEL ROUND COMPACT LED I 8° - 3
Part number 075990
Lampholder: LED
Wattage: 7.6 W
Finish: INOX / STAINLESS STEEL / MATT
Degree of protection: IP 67
Kelvin: 4000
Optic: INTENSIVE CIRCLE REFLECTOR
Optic Beam:
Luminaire lumen output: 467 lm
Lifetime: 60000 h
cULus:
Voltage: 120/277V
Ta MIN luminaire:
Ta MAX luminaire:

Description

  • Class I reduced depth in-ground LED luminaire with black painted anodised die-cast aluminium body and precision-cast stainless steel trim
  • - Walk-over, drive-over approved.
  • - Suitable for lighting gardens, architecture, and structures.
  • - Flat toughened glass diffuser
  • - Black painted aluminium LED holder plate which can be directed by +/- 7°
  • - Intensive beam lenses with 8° opening
  • - Optic compartment is separate from the power compartment for better heat control
  • - EPDM gaskets
  • - Stainless steel fastening screws
  • - Features WATER STOP connection system to the watertight network
  • - Technopolymer recessed fixing kit equipped with reinforcement bar to ensure traffic resistance and designed to encourage water drainage through the WATER DRAIN system
  • - The luminaire requires recessed fixing kit which must be ordered separately.
  • - Frosted or non-slip glass available upon request. Contact factory.
  • - Integral LED driver. Consult factory for dimming options.

PHOTOMETRIC DATA

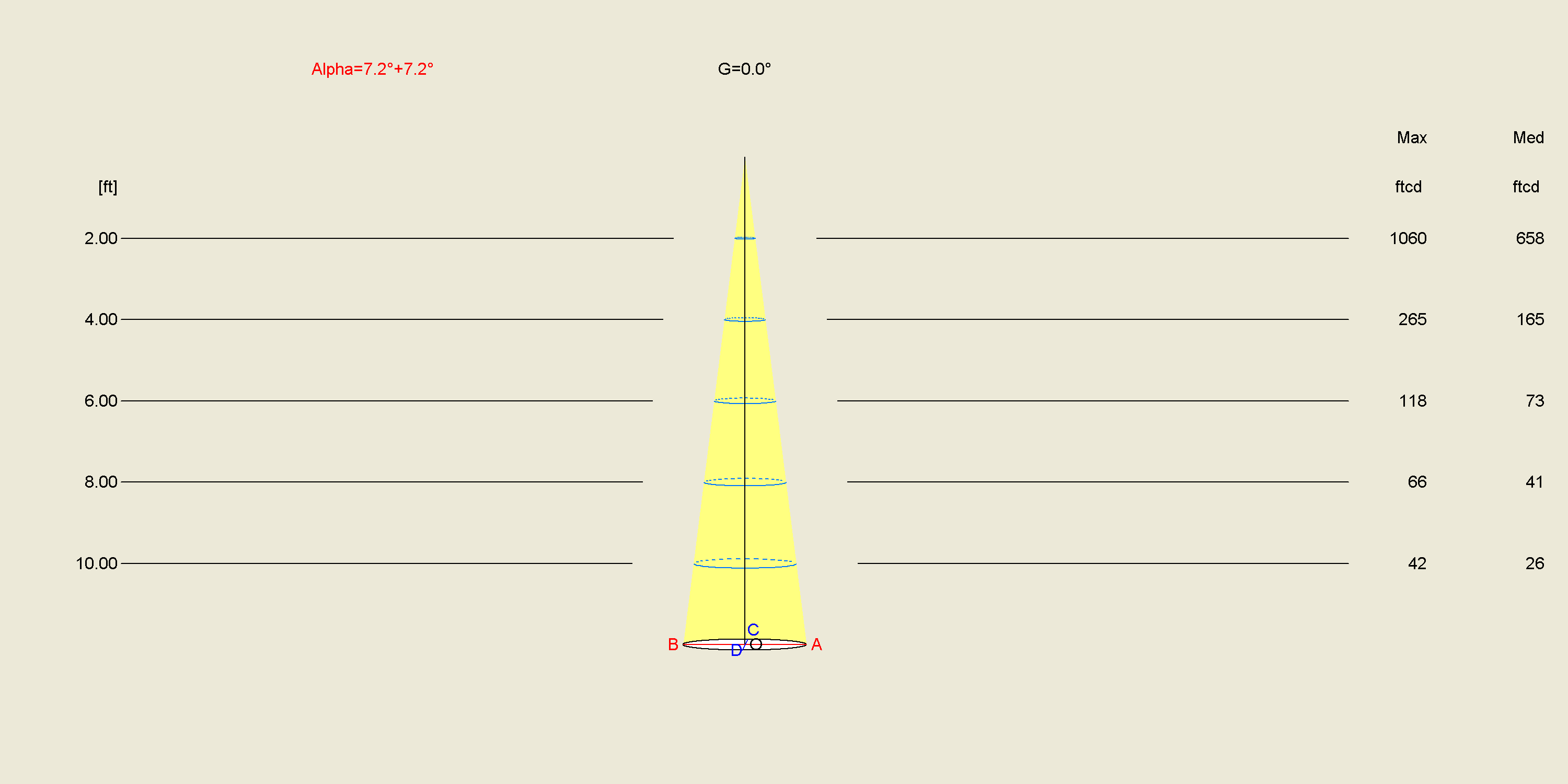

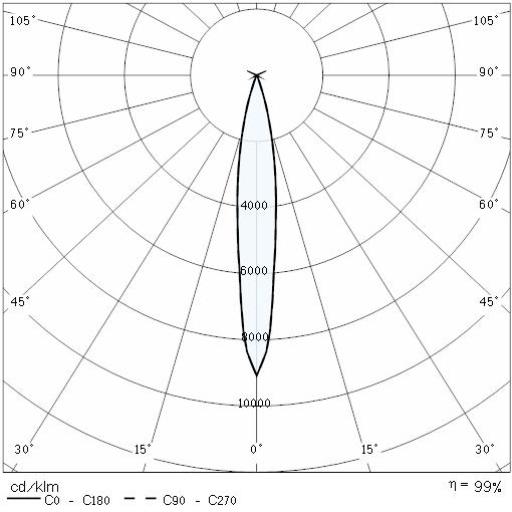

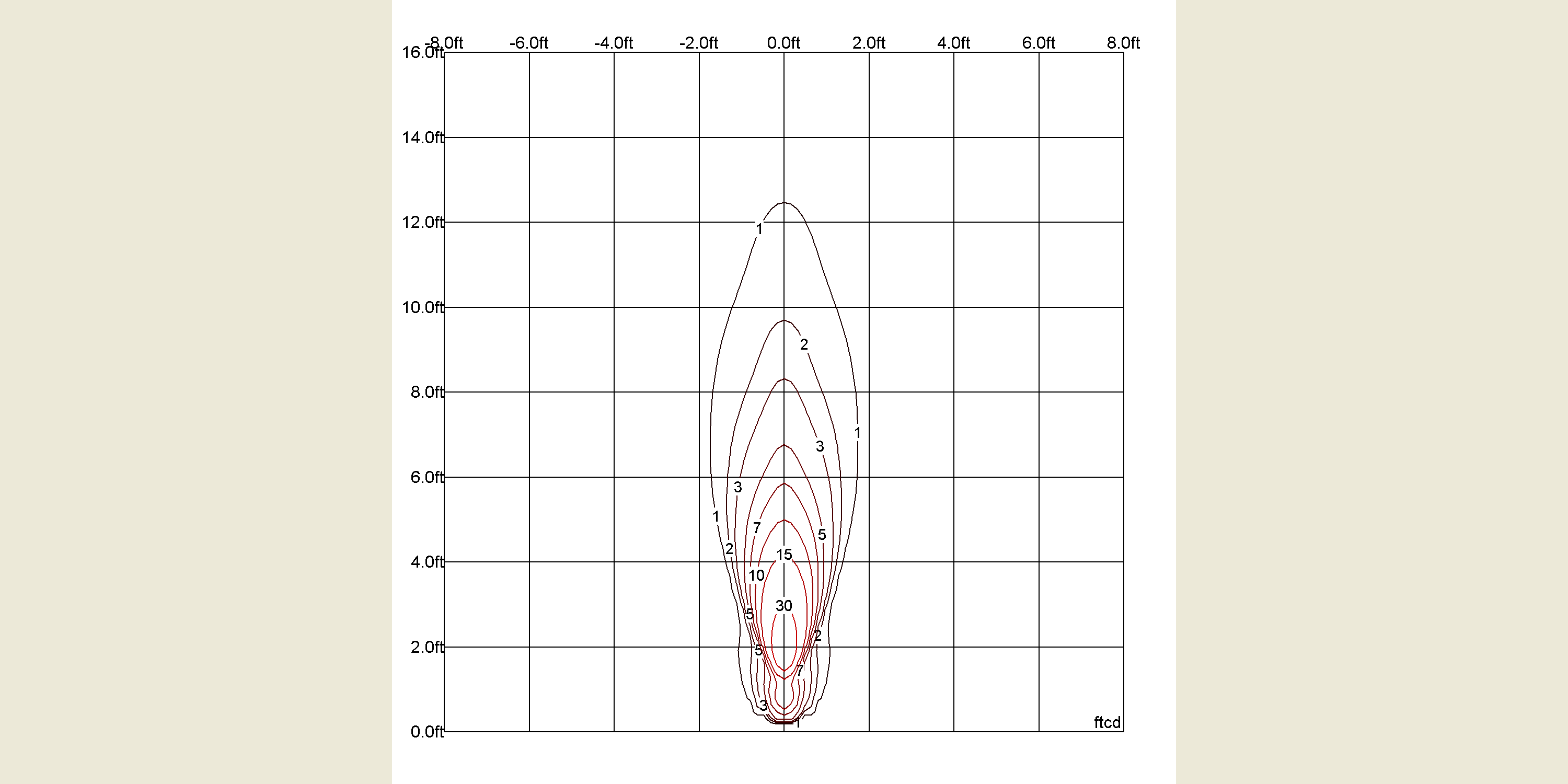

Photometric Lvk STEEL ROUND COMPACT LED I 8° 1
Photometric Lvk STEEL ROUND COMPACT LED I 8° 2
Photometric Lvk STEEL ROUND COMPACT LED I 8° 3

TECHNICAL DRAWINGS

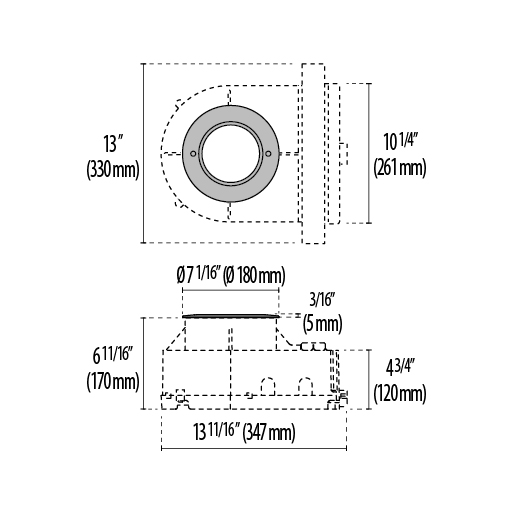

Tech Design STEEL ROUND COMPACT LED I 8°

MANDATORY ACCESSORIES

STEEL ROUND MIDI

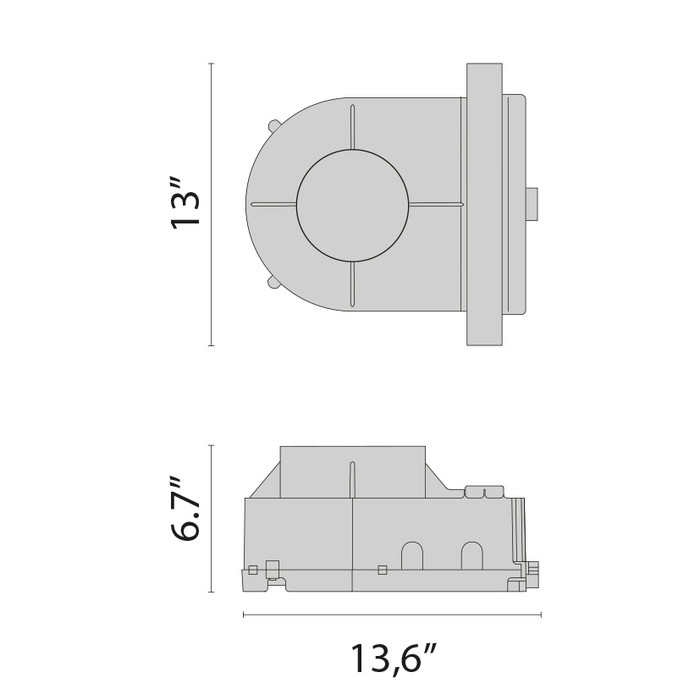

Recessed fixing kit
310331
Recessed fixing kit
