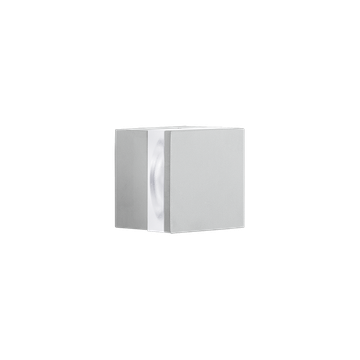

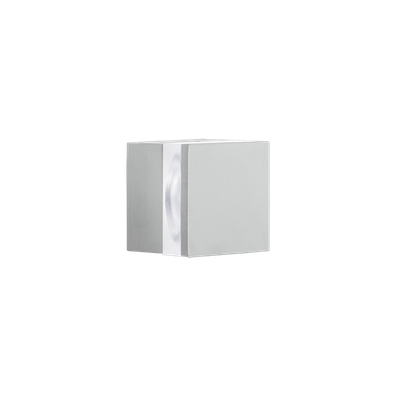

ALU SQUARE SHADE

IN
ALU SQUARE SHADE
ALU SQUARE SHADE
ALU SQUARE SHADE - 1
ALU SQUARE SHADE - 2
Part number 077333
Lampholder: LED
Wattage: 2.1 W
Finish: GR-EV1 / ANODIZED ALUMINUM / MATT
Degree of protection: IP 65
Kelvin: 3000
Luminaire lumen output: 32 lm
Lifetime: 60000 h
cULus:
Voltage: 700MA

Description

  • Wall effect series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision machined billet aluminum housing and optical compartment.
  • - Satin UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.

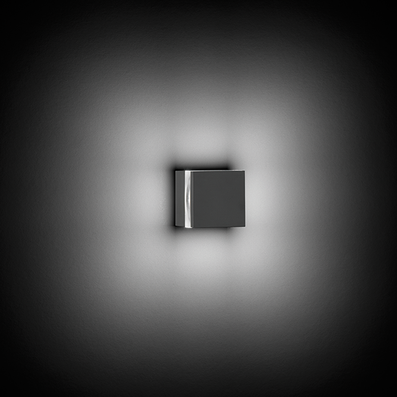

  • - Wall effects light emission.
  • - To be used with a low-voltage, constant-current (700 mA) driver (ordered separately, consult factory for more information).
  • - Matching junction box cover plate accessory available (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

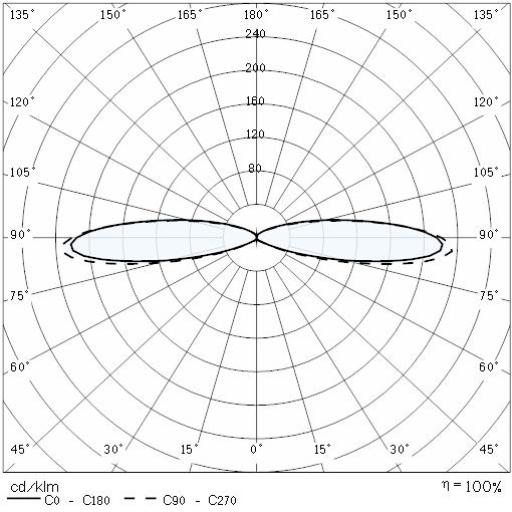

PHOTOMETRIC DATA

Photometric Lvk ALU SQUARE SHADE 1

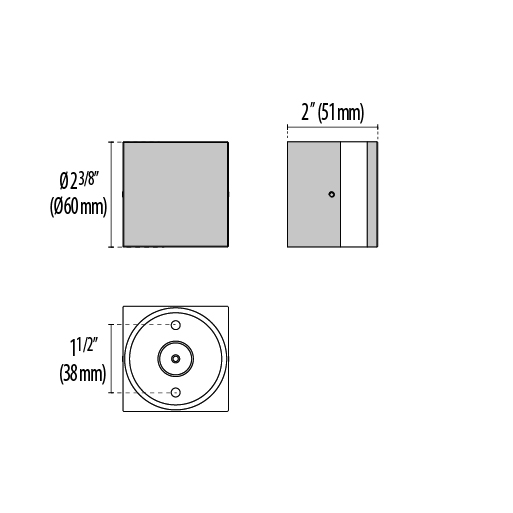

TECHNICAL DRAWINGS

Tech Design ALU SQUARE SHADE

OPTIONAL ACCESSORIES

ALU SQUARE MINI

Plate cover jbox Alu Square
07943
Plate cover jbox Alu Square
ANODIZED ALUMINUM
