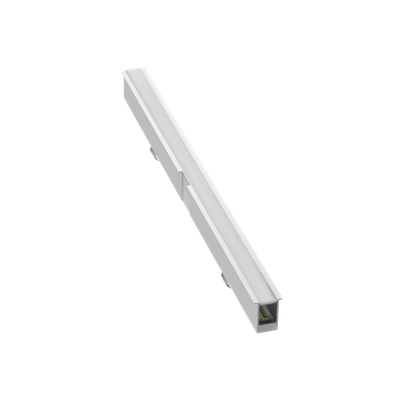

GROOVE 21 500 T

GROOVE 21 500 T
GROOVE 21 500 T - 1
Part number 077628
Lampholder: LED
Wattage: 5 W
Finishing: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP67
CRI: 90
Kelvin: 3000
Optic: Symmetric Extra-Wide
Luminaire lumen output [lm]: 182 lm
L: L80
B: B10
Lifetime: 108000 h
cULus:
Min. ambient temperature [°C]: -40
Max. ambient temperature [°C]: 40

Description

  • In-ground series. Fixtures consist of:
  • - Extruded anodised aluminium housing
  • - IP-67-rated double resin coating - transparent in the lower part to protect the LED from mechanical stresses and to guarantee maximum luminous efficiency - satin finish in the visible part, even in joints proximity, to ensure a homogeneous light distribution over the entire emitting area
  • - Dynamic Tunable White (TW) options enable smooth variations in color temperature, from 2700K to 5400K, in response to how a space is used.
  • - RGBW (4000K) color mixing for high emotional impact scenographic effects.
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - To be used with a 24 V low-voltage driver (ordered separately, consult factory for more information).
  • - Two-part fitting, consisting of LED luminaire and stainless steel recess box with anti-deformation cover (included). Tool-free installation of the luminaire in the recess box
  • - Stainless steel recessed rough-in kit to be ordered separately.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

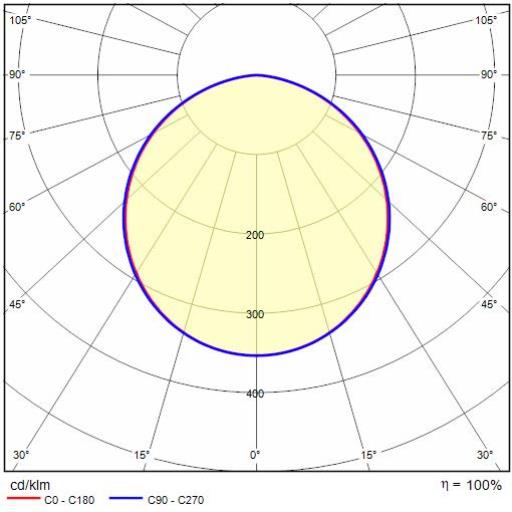

Photometric data

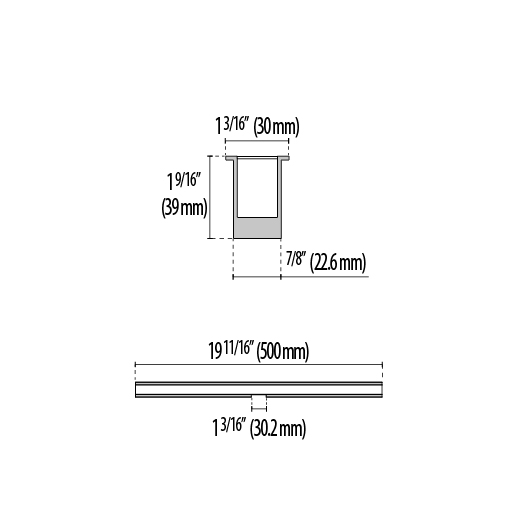

Technical drawings

Tech Design GROOVE 21 500 T 1++

REQUIRED FOR INSTALLATION

GROOVE 21

3111705

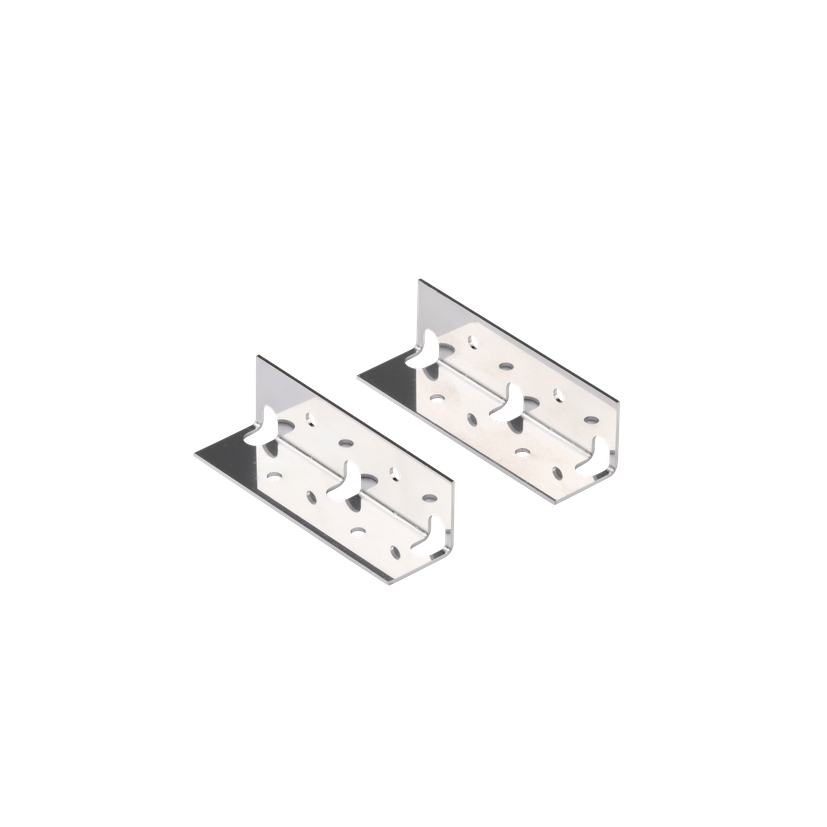

Shaped joint
3111706
T-shaped join
3106662
Kit closing cap for rough-in
3111707
Kit closing cap for fixture

GROOVE 21 500 T-X

3123665

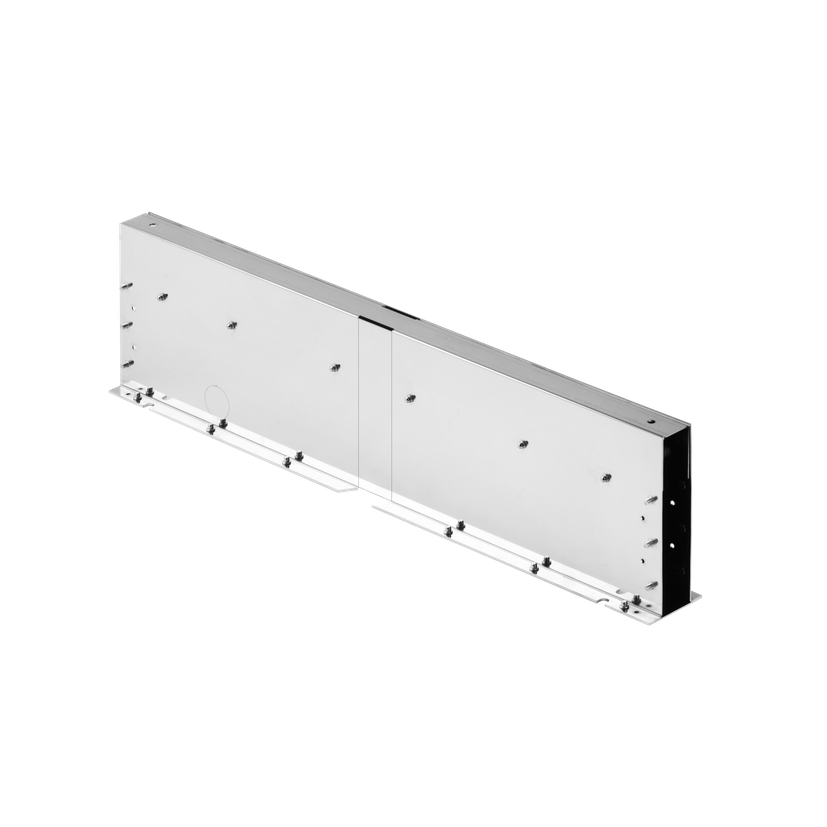

Recessed rough-in kit GROOVE 21 500 T-X
Stainless steel
DownloadDownloads

Documentation: DU00245 - 3123665
