MAGICLICK OVAL SHADE H LED [8.27"]

IN
MAGICLICK OVAL SHADE H LED [8.27"]
MAGICLICK OVAL SHADE H LED [8.27"] - 1
Part number 079382
Lampholder: LED
Wattage: 11 W
Finish: AN-96 / IRON GRAY / TEXTURED
Degree of protection: IP 55
Kelvin: 3000
Optic: SYMMETRIC EXTRA WIDE REFLECTOR
Luminaire lumen output: 334 lm
L: L80
Lifetime: 50000 h
cULus:
Voltage: 120/277V

Description

  • Ceiling and wall mount series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free die-cast aluminum housing, trim and faceplates.
  • - Hi-light transmittance, internally coated, soda-lime pressed glass diffuser, physically and chemically quenched to increase thermal shocks and mechanical resistance.
  • - The trim is integral with the diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Tiltable LED board mounting bracket allows for quick and easy installation.
  • - 100% uniform diffuse light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Standard hinge-style housing allows for a simplified installation.
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - 5-year warranty.
  • - Product meets Buy American requirements within ARRA.

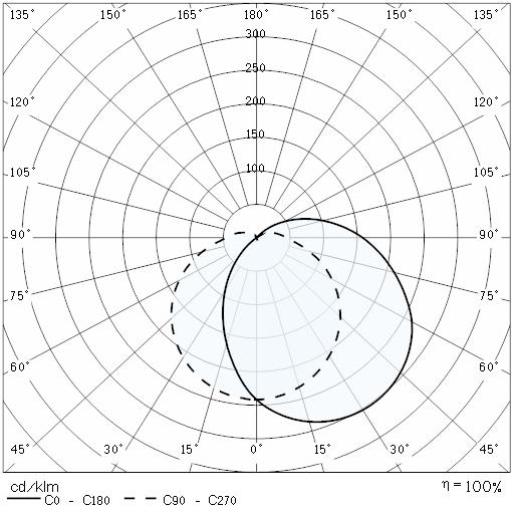

PHOTOMETRIC DATA

Photometric Lvk MAGICLICK OVAL SHADE H LED [8.27"] 1

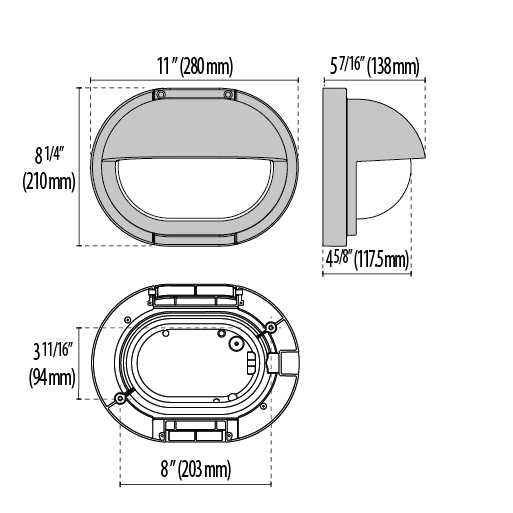

TECHNICAL DRAWINGS

Tech Design MAGICLICK OVAL SHADE H LED [8.27"]
