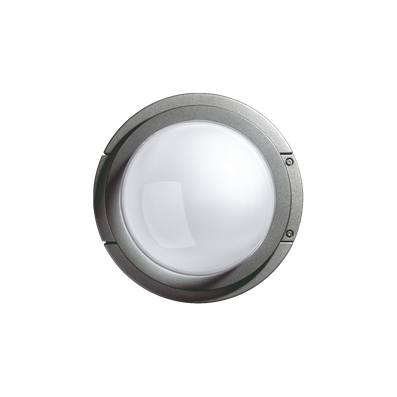

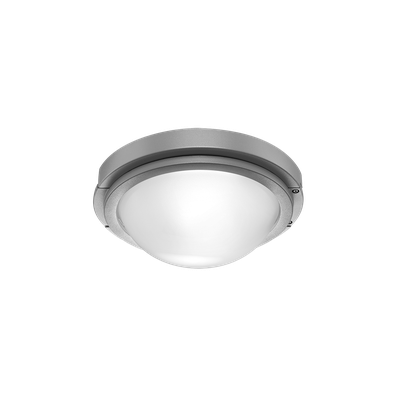

MAGICLICK ROUND 25 LED  [12.20"] - 1
Part number 079423
Lampholder: LED
Wattage: 26 W
Finish: AN-96 / Iron gray / Textured
Degree of protection: IP55
CRI: 80
Kelvin: 3000
Optic: Symmetric extra wide reflector
Luminaire lumen output: 1255 lm
L: L80
Lifetime: 50000 h
Voltage: 120/277 V


  • Ceiling- and wall- mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free die-cast aluminum housing, ring, and faceplates.
  • - High transmittance, internally coated, pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
  • - The ring/faceplate is integral with the diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - 100% uniform diffused light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Standard hinge-style housing allows for a simplified installation.
  • - Polycarbonate lens option available. Consult factory for more information.
  • - Five optional finishes available. Add finish suffix to any part number for textured Black (BK-81), Iron gray (AN-96), Aluminum metallic (GR-94), White (WH-87), Iron rust (RB-10) when not standard.
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - 5-year warranty.
  • - Product meets Buy American Act requirements within ARRA.

Photometric data

Photometric Lvk MAGICLICK ROUND 25 LED  [12.20"] 1

Technical drawings

Tech Design MAGICLICK ROUND 25 LED  [12.20"]
