ALU 1 120-277 - 6°

IN
ALU 1 120-277 - 6°
ALU 1 120-277 - 6°
ALU 1 120-277 - 6° - 1
ALU 1 120-277 - 6° - 2
Part number 079680
Lampholder: LED
Wattage: 1.8 W
Finish: BK-40 / ANODIZED BLACK / MATT
Degree of protection: IP 65
Kelvin: 3000
Optic Beam:
Luminaire lumen output: 57 lm
Lifetime: 60000 h
cULus:
Voltage: 120/277V

Description

  • Wall sconce series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision machined billet aluminum housing and optical compartment.
  • - Clear UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Wall effects light emission.
  • - 6° x 6° beam angle (C/I).
  • - Input voltage is 120-277 V (50/60 Hz), integral driver for "120-277" models only.
  • - Matching junction box cover plate accessory available (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - Consult factory for custom optic options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

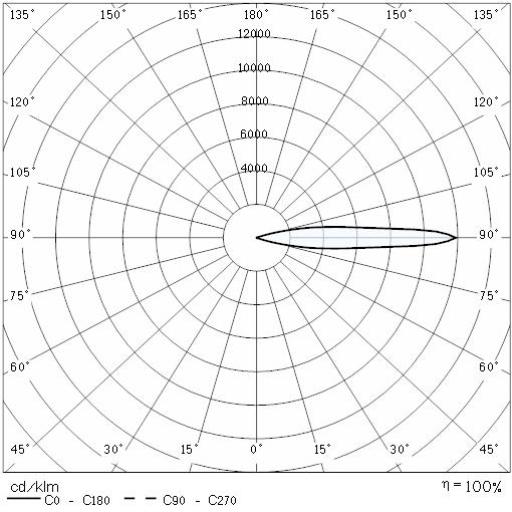

PHOTOMETRIC DATA

Photometric Lvk ALU 1 120-277 - 6° 1
Photometric Lvk ALU 1 120-277 - 6° 2

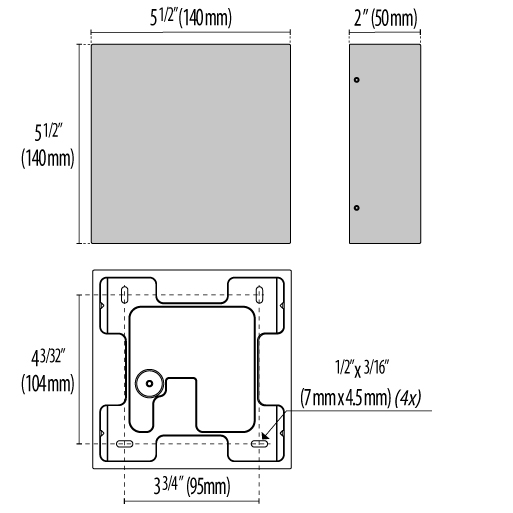

TECHNICAL DRAWINGS

Tech Design ALU 1 120-277 - 6°
