ALU 1 120-277 - 25°

IN
ALU 1 120-277 - 25°
ALU 1 120-277 - 25°
ALU 1 120-277 - 25° - 1
ALU 1 120-277 - 25° - 2
Part number 079684
Lampholder: LED
Wattage: 1.8 W
Finish: GR-EV1 / ANODIZED ALUMINUM / MATT
Degree of protection: IP 65
Kelvin: 3000
Optic Beam: 25°
Luminaire lumen output: 39 lm
Lifetime: 60000 h
cULus:
Voltage: 120/277V
Ta MIN luminaire:
Ta MAX luminaire:

Description

  • Indoor and outdoor wall-mounted class I LED fixtures.
  • - Anodised silver or black aluminum body.
  • - Anodised silver or black aluminum ring nut to secure the lenses.
  • - Transparent glass cover.
  • - All versions are equipped with either white 3000 K or 6000 K LEDs.
  • - Supplied complete with lenses.
  • - Fixture complete with driver.
  • - Consult factory for custom colors.
  • - Consult factory for non-catalogued kelvin temps.

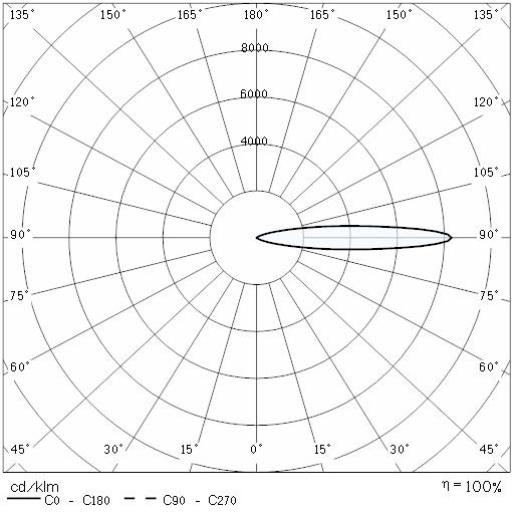

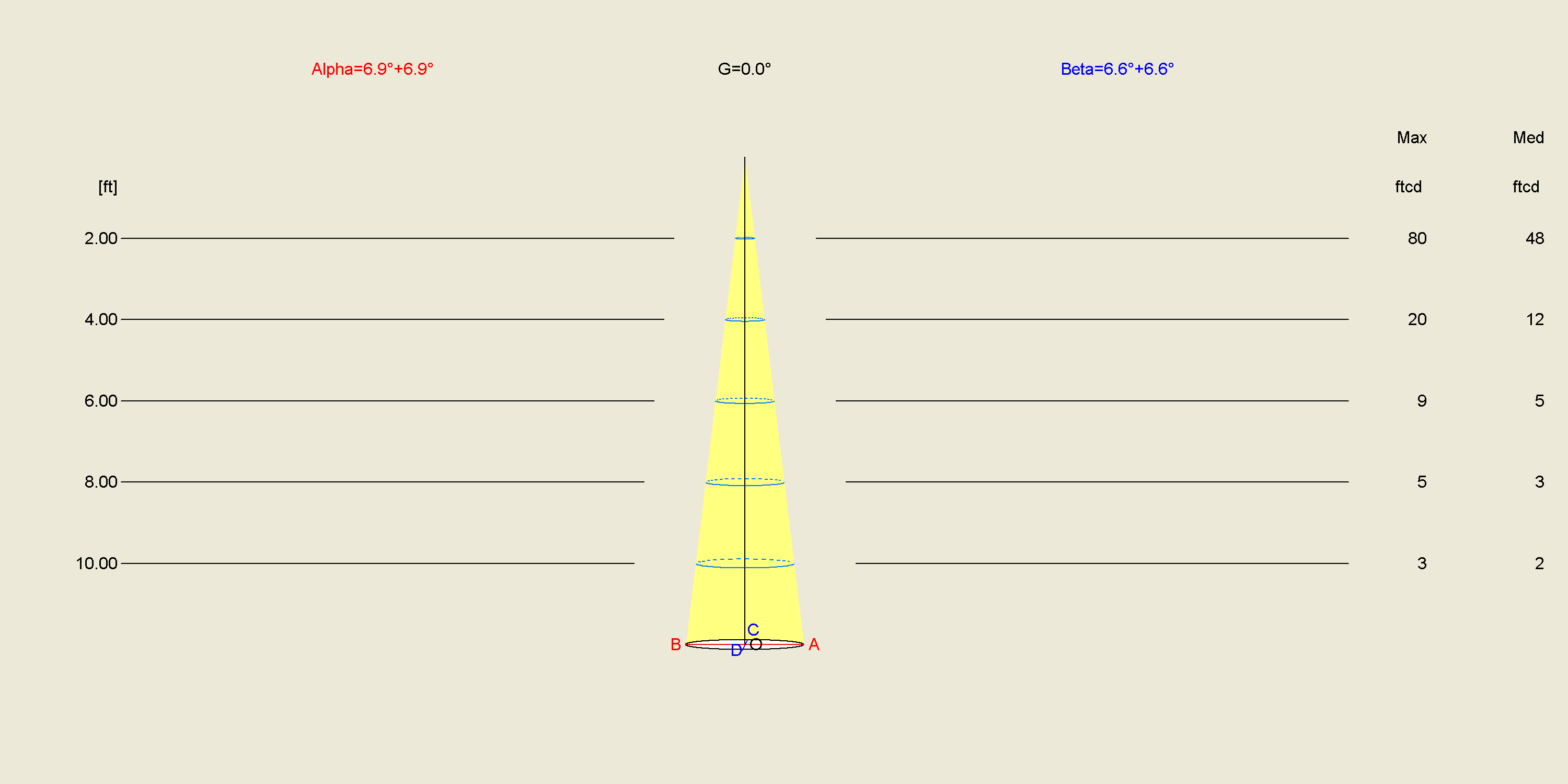

PHOTOMETRIC DATA

Photometric Lvk ALU 1 120-277 - 25° 1
Photometric Lvk ALU 1 120-277 - 25° 2

TECHNICAL DRAWINGS

Tech Design ALU 1 120-277 - 25°
