MAGICLICK MAXI LED [20.23"]

IN
MAGICLICK MAXI LED   [20.23"]
MAGICLICK MAXI LED   [20.23"]
MAGICLICK MAXI LED   [20.23"] - 1
MAGICLICK MAXI LED   [20.23"] - 2
Part number 079801
Lampholder: LED
Wattage: 63 W
Finishing: GR-94 / Aluminum metallic / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Optic: Symmetric Extra-Wide
Luminaire lumen output [lm]: 2848 lm
Lifetime: 40000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 25

Description

  • Ceiling- and wall- mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and ring/faceplate.
  • - High transmittance, internally coated, pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
  • - The ring/faceplate is integral with the diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Tiltable LED board mounting bracket allows for quick and easy installation.
  • - 100% uniform diffused light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Standard hinge-style housing allows for a simplified installation.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

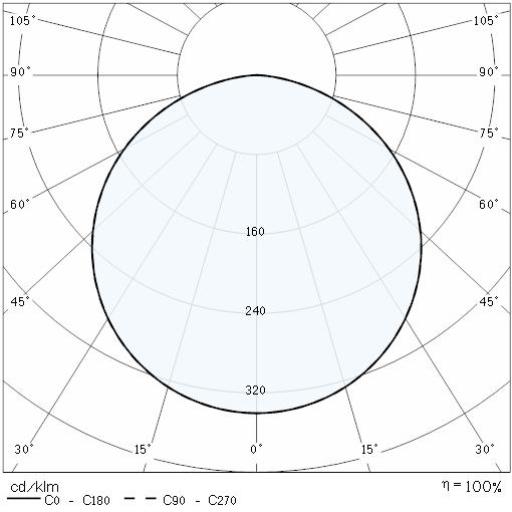

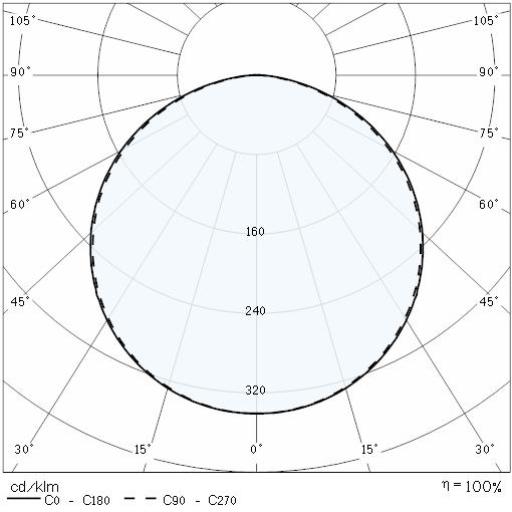

Photometric data

Technical drawings

Tech Design MAGICLICK MAXI LED   [20.23"] 1++
