MIMIK 50 B TYPE II

Description

• Wall mount series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing and mounting plate.
• - Extra-clear, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.
• - Single (M) or dual (B) light emission.

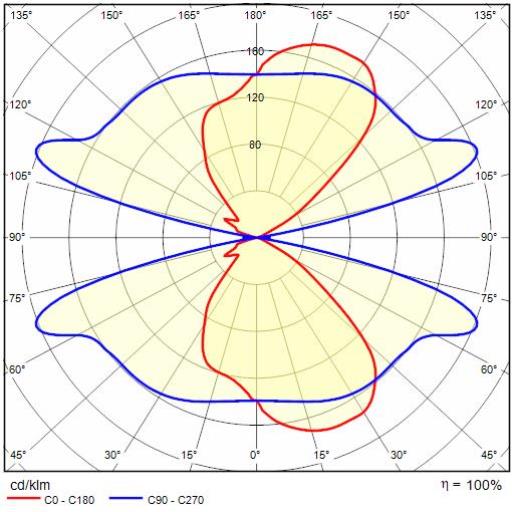

• - Type II light distribution.
• - Standard dual-circuit wiring and dimming for dual (B) light emission models.
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - BUTTON and SWIVEL 120-277 V (50 / 60 Hz) photoelectric switch options available (ordered separately).
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
• - 5-year warranty.
