MIMIK 50 B TYPE II EMPK

IN
MIMIK 50 B TYPE II EMPK
MIMIK 50 B TYPE II EMPK
MIMIK 50 B TYPE II EMPK
MIMIK 50 B TYPE II EMPK
MIMIK 50 B TYPE II EMPK - 1
MIMIK 50 B TYPE II EMPK - 2
MIMIK 50 B TYPE II EMPK - 3
MIMIK 50 B TYPE II EMPK - 4
Part number 079889
Lampholder: LED
Wattage: 39 W + 39 W
Finishing: GR-94 / Aluminum metallic / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 3000
IESNA Type: Type II
BUG Rating: B1-U5-G1
Luminaire lumen output [lm]: 8977 lm
L: L80
B: B10
Lifetime: 71000 h
cULus:
Min. ambient temperature [°C]: 10
Max. ambient temperature [°C]: 35

Description

  • Wall mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and mounting plate.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Single (M) or dual (B) light emission.
  • - Type II light distribution.
  • - Standard dual-circuit wiring and dimming for dual (B) light emission models.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Integral, emergency battery-pack designed for a minimum operation of 90 minutes (EMPK versions).
  • - BUTTON and SWIVEL 120-277 V (50 / 60 Hz) photoelectric switch options available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

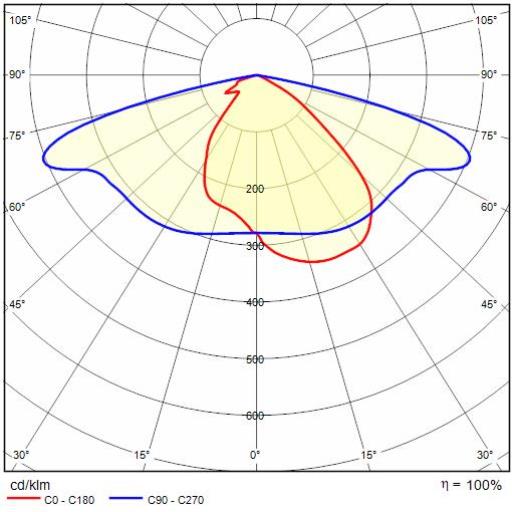

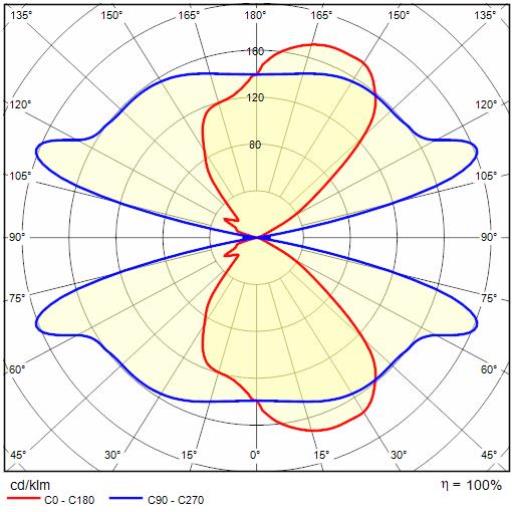

Photometric data

Technical drawings

Tech Design MIMIK 50 B TYPE II EMPK 1++
