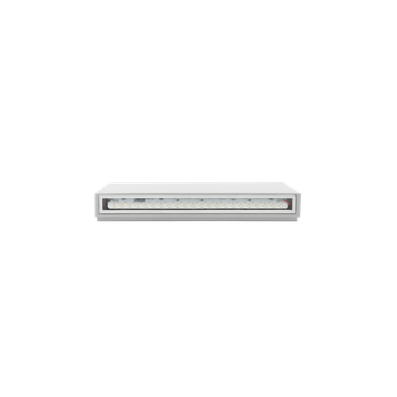

MIMIK 30 FLAT M

IN
MIMIK 30 FLAT M
MIMIK 30 FLAT M
MIMIK 30 FLAT M
MIMIK 30 FLAT M
MIMIK 30 FLAT M - 1
MIMIK 30 FLAT M - 2
MIMIK 30 FLAT M - 3
MIMIK 30 FLAT M - 4
Part number 070000
Lampholder: LED
Wattage: 20 W
Finish: GR-94 / ALUMINUM METALLIC / TEXTURED
Degree of protection: IP 65
CRI: 80
Kelvin: 3000
Luminaire lumen output: 1506 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277V

Description

  • Wall- and post- mount series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and mounting plate.
  • - Micro-prismatic patterned, flat, tempered silk screened soda-lime glass diffuser (FLAT).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Single (M) or dual (B) light emission.
  • - IESNA Type II Very Short light distribution (FLAT).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Customizing facade faceplate cover available for MIMIK 20 / 30 (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - Optional clear plexiglas panel can be customized with logos for signage or wayfinding. Consult factory for more information.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

PHOTOMETRIC DATA

Photometric Lvk MIMIK 30 FLAT M 1

TECHNICAL DRAWINGS

Tech Design MIMIK 30 FLAT M

OPTIONAL ACCESSORIES

MIMIK 30 FLAT

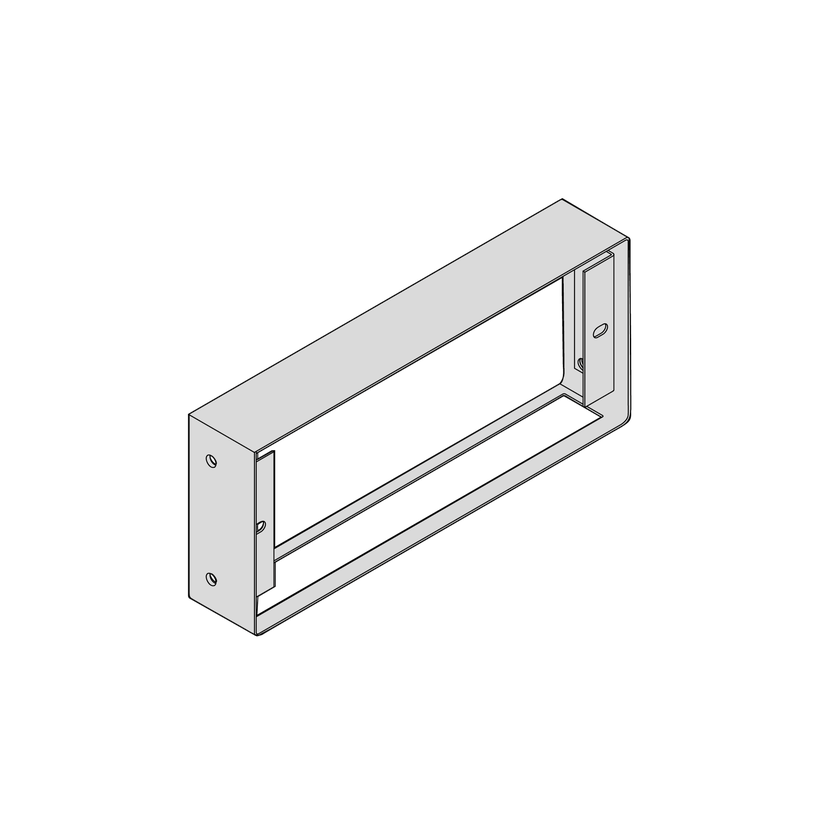

FLAT Customising ring / Facade Accessory
310446
FLAT Customising ring / Facade Accessory
ALUMINUM METALLIC
