Q-CEILING SOFT

IN
Q-CEILING SOFT
Q-CEILING SOFT - 1
Part number 070149
Lampholder: LED
Wattage: 30 W
Finishing: GR-94 / Aluminum metallic / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Optic: Symmetric Extra-Wide
Luminaire lumen output [lm]: 2430 lm
L: L80
B: B10
Lifetime: 55000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -20
Max. ambient temperature [°C]: 25

Description

  • Ceiling mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) extruded aluminum housing and Copper-free (<1%) precision die-cast aluminum ring/faceplate, bracket and mounting plate.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - Diffuse light emission (SOFT).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

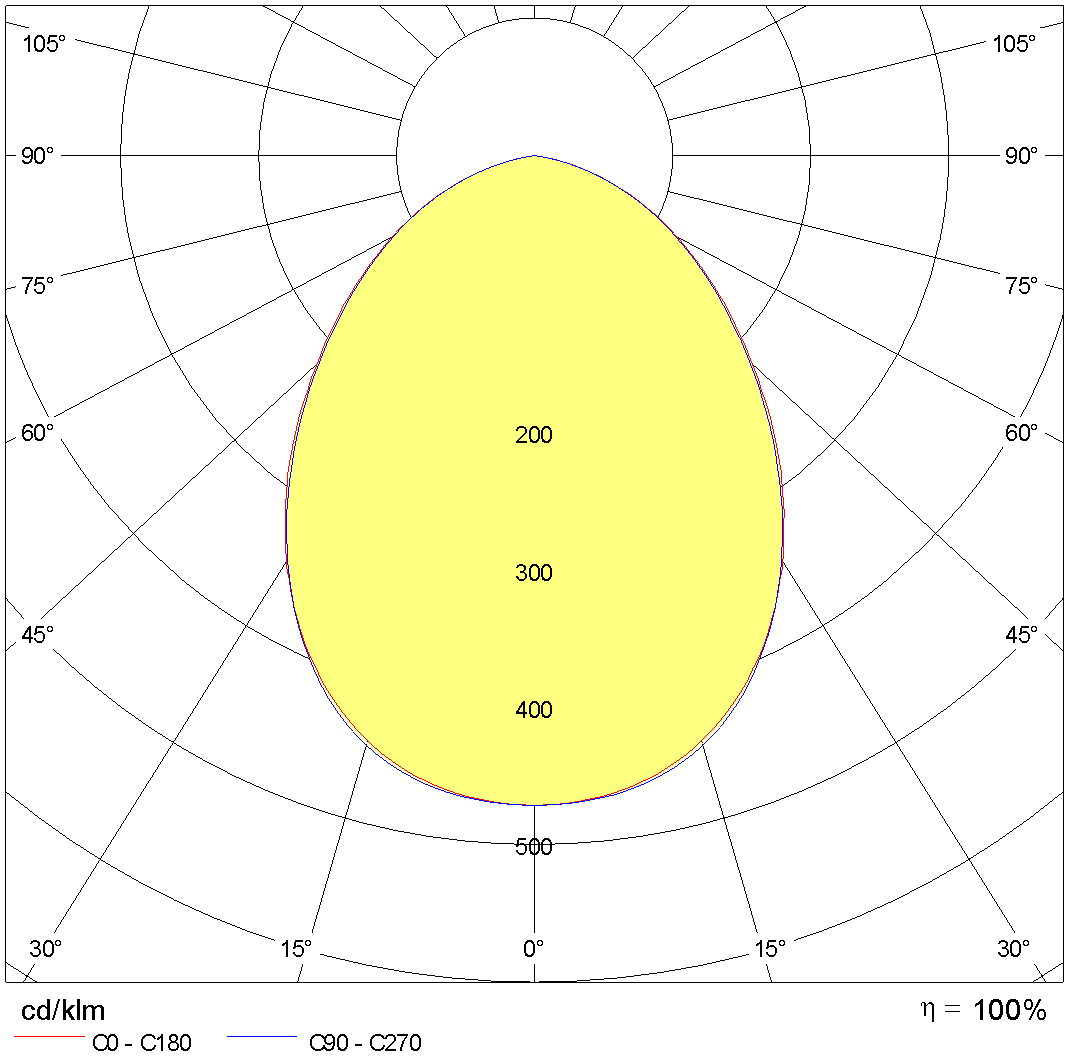

Photometric data

Technical drawings

Tech Design Q-CEILING SOFT 1++
