Part number 070295
Lampholder: LED
Wattage: 19.5 W
Finish: GR-94 / Aluminum metallic / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Optic: Symmetric extra wide reflector
Luminaire lumen output: 635 lm
L: L80
B: B10
Lifetime: 60000 h
Voltage: 120-277 V


  • Surface-mount doorway and hallway lights and post mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free die-cast aluminum housing, ring, and faceplates.
  • - Copper-free aluminum extruded post.
  • - High transmittance, internally coated, pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Tiltable LED board mounting bracket allows for quick and easy installation.
  • - 100% uniform diffused light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Consult factory for custom signage options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

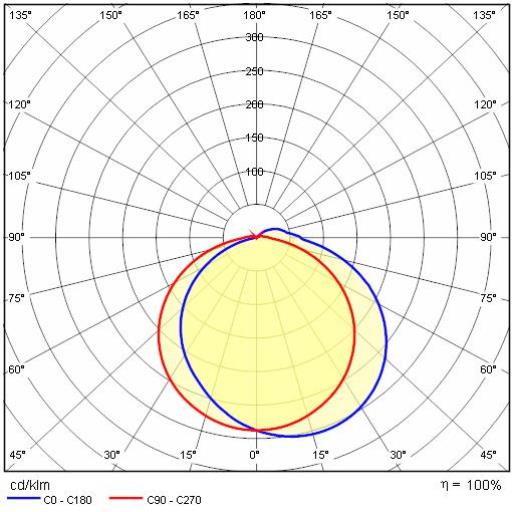

Photometric data

Photometric Lvk BLIZ VISA 1

Technical drawings

Tech Design BLIZ VISA


BLIZ post H 19.7

Post Bliz h 19.68" - Aluminium metallic
Post Bliz h 19.68" - Aluminium metallic
Aluminum metallic
