FOCUS+ 3 SA TYPE III

IN
FOCUS+ 3 SA TYPE III
FOCUS+ 3 SA TYPE III
FOCUS+ 3 SA TYPE III
FOCUS+ 3 SA TYPE III - 1
FOCUS+ 3 SA TYPE III - 2
FOCUS+ 3 SA TYPE III - 3
Part number 070519
Lampholder: LED
Wattage: 54 W
Finishing: RB-10 / Iron rust / Textured
Degree of protection: IP66
CRI: 70
Kelvin: 3000
Nema Type: 5H x 7V
IESNA Type: Type III
Luminaire lumen output [lm]: 3420 lm
L: L70
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 25

Description

  • Long-lasting energy-efficient floodlight series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing, ring/faceplate, and adjustable mounting arm.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - NEMA 5H x 7V light distribution (Type III).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Standard robust ½” NPS knuckle mount with 180° adjustable swivel arm (SA versions) and rugged, locking teeth for a simplified installation.
  • - Matching junction box plate optional accessory available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

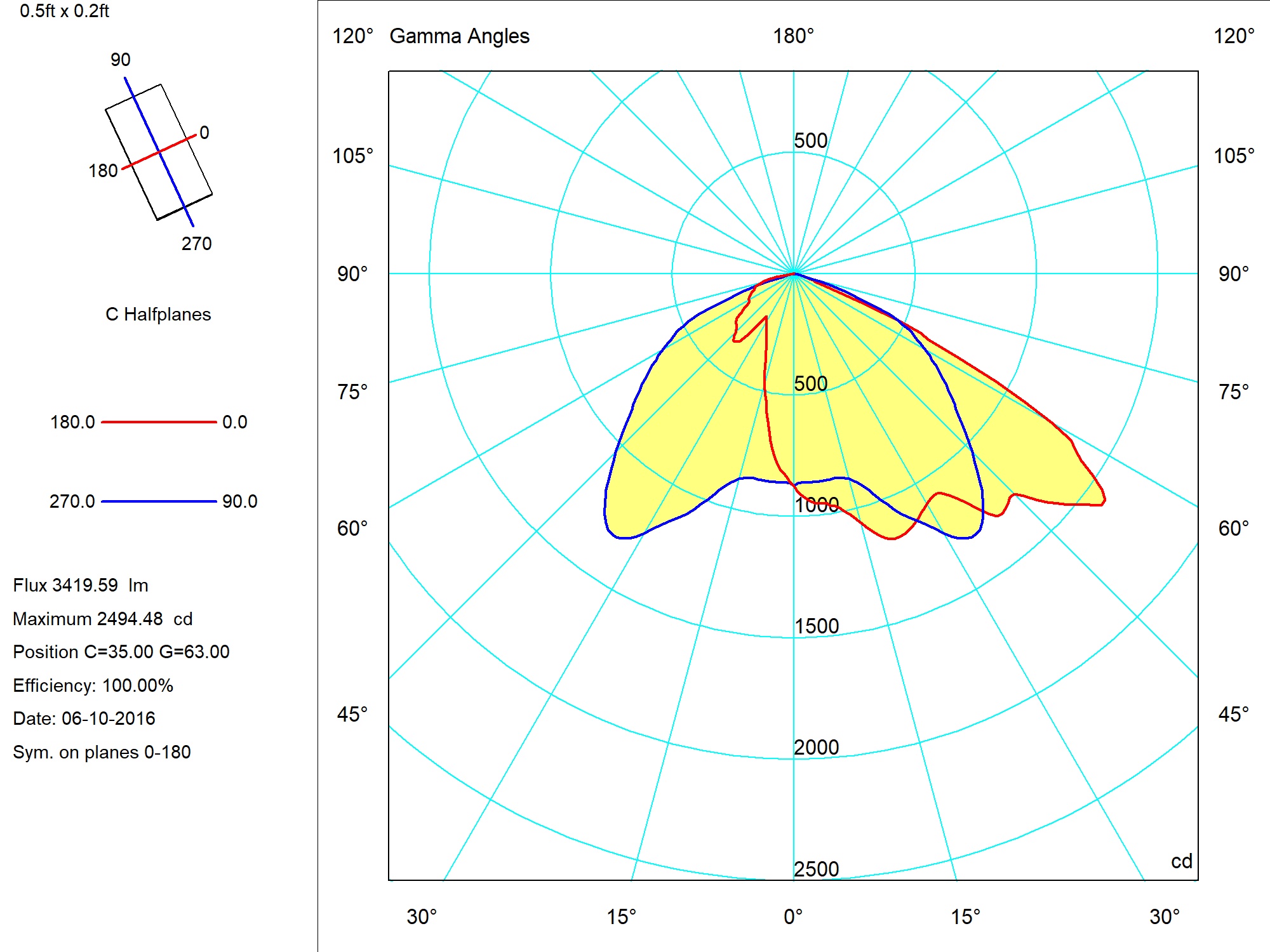

Photometric data

Technical drawings

Tech Design FOCUS+ 3 SA TYPE III 1++
