GUELL 2 TYPE II SF

Description

• Long-lasting energy-efficient floodlight series. Fixtures consist of:
• - Copper-free (<1%) precision die-cast aluminum housing, and adjustable steel mounting bracket.
• - Extra-clear, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
• - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.

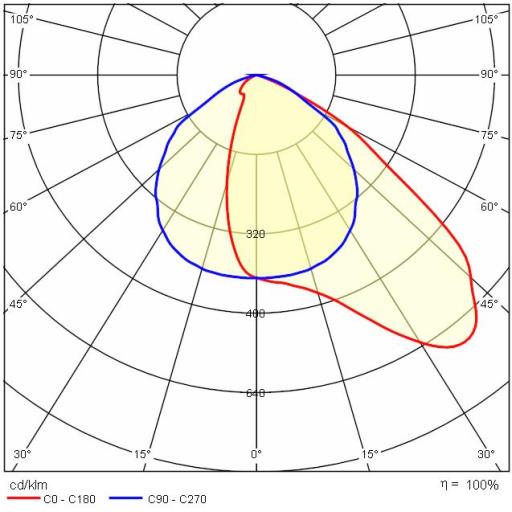

• - NEMA 7H x 5V light distribution (Type II).
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - Pre-wired factory sealed cable for external electrical connection included.
• - Standard heavy-duty slip-fitter (SF versions) for 2 3/8" OD pipe for a simplified installation.
• - Standard quick release latch(es) allow for tool-free access.
• - Louver, frosted glass, protective grid, wall support 19.69" / 39.37", single or double pole top support, and matching junction box plate accessories available (ordered separately).
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
• - 5-year warranty.
