QUASAR 30 CEILING TECH

IN
QUASAR 30 CEILING TECH
QUASAR 30 CEILING TECH - 1
Part number 070609
Lampholder: LED
Wattage: 21 W
Finish: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Optic: Symmetric extra wide reflector
Luminaire lumen output: 1889 lm
L: L80
B: B10
Lifetime: 100000 h
cULus:
Voltage: 120-277 V

Description

  • Ceiling mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and mounting plate.
  • - Micro-prismatic patterned, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - 90° x 95° beam angle (TECH).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Junction box mounting plate included (for 4" octagon box only, provided by others).
  • - Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

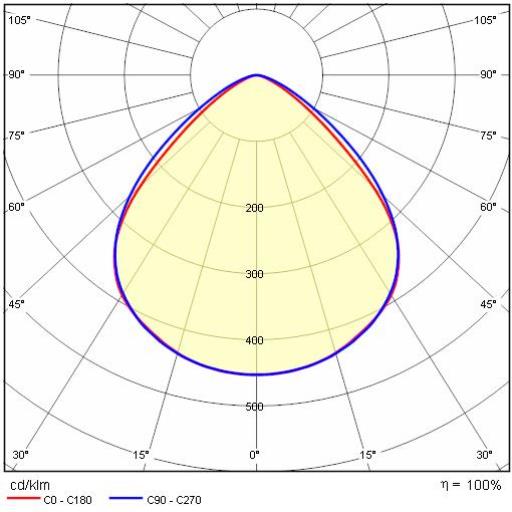

Photometric data

Photometric Lvk QUASAR 30 CEILING TECH 1

Technical drawings

Tech Design QUASAR 30 CEILING TECH
