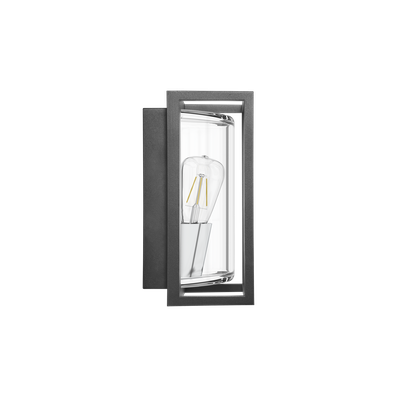

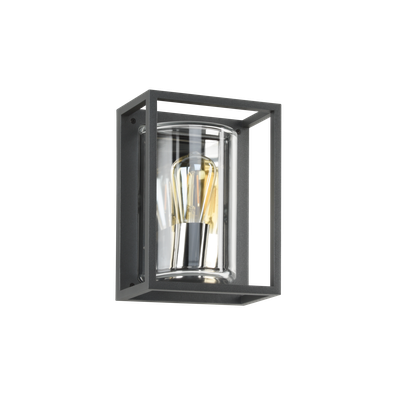

NIKKO+27 LA

IN
NIKKO+27 LA
NIKKO+27 LA
NIKKO+27 LA - 1
NIKKO+27 LA - 2
Part number 070620
Lampholder: E26
Wattage: 1x100 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
cULus:
Voltage: 120/277 V

Description

  • Surface-mount doorway and hallway lights and post mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) die-cast aluminum housing, ring, and faceplates.
  • - High transmittance, internally coated, pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - 100% uniform diffused light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Wall bracket and post accessories available (ordered separately).
  • - 5-year warranty.
  • - Product meets Buy American Act (BAA) requirements within ARRA.

Technical drawings

Tech Design NIKKO+27 LA 1++
