MIMIK 20 FLAT M

Description

• Wall- and post- mount series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing and mounting plate.
• - Micro-prismatic patterned, tempered, silk-screened, flat glass diffuser (FLAT versions).
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - ustom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - Single (M) or dual (B) light emission.

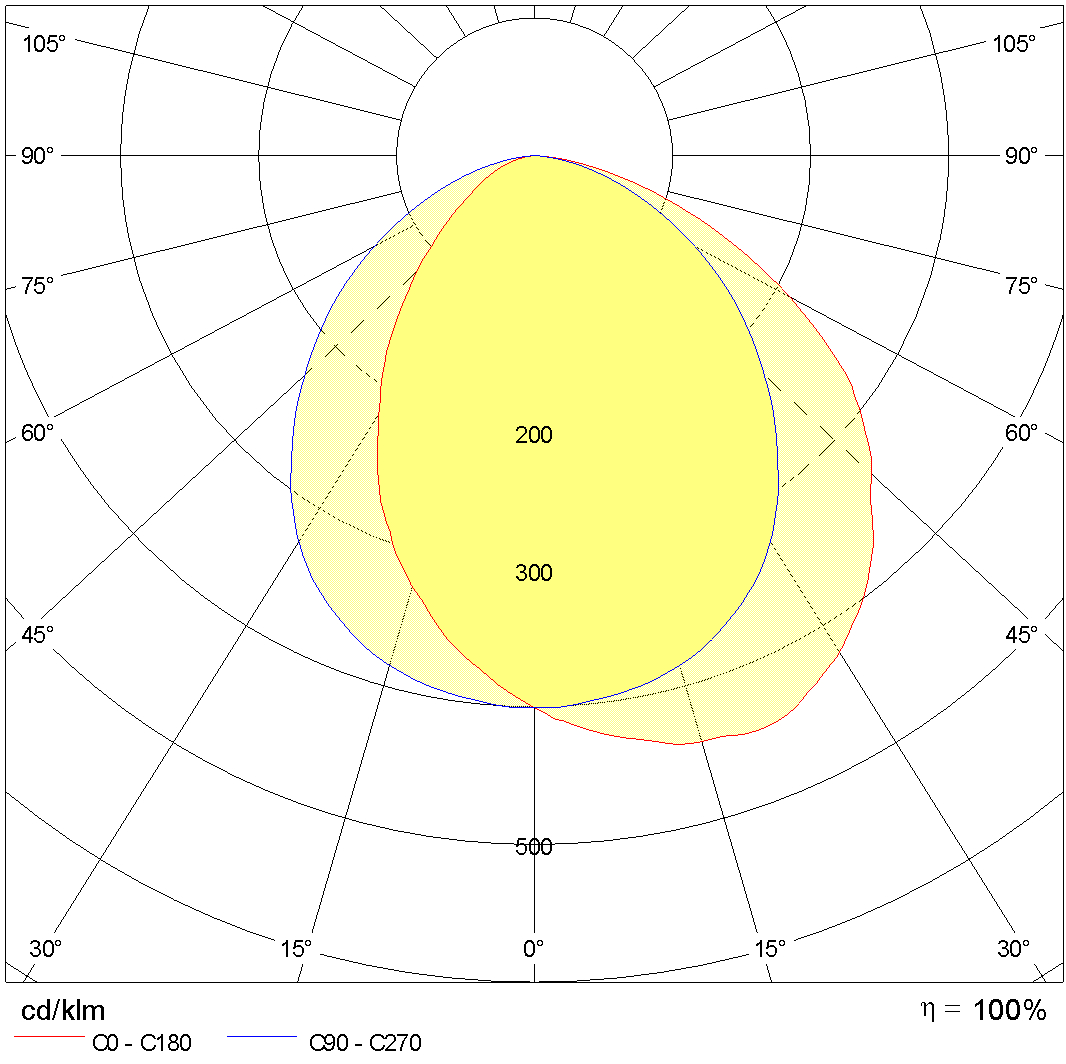

• - Type II light distribution (FLAT).
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - Customizing facade faceplate available for various versions (ordered separately).
• - Post accessory available for MIMIK 20 (ordered separately).
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
